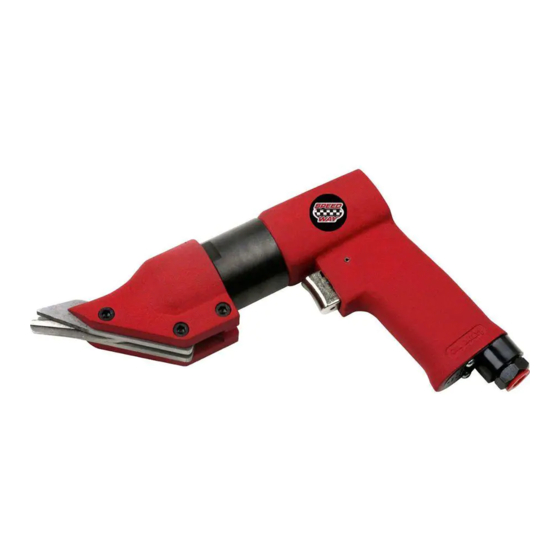

Pistol Grip Air Shears

Model: 44676

*Actual product may vary slightly

Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.

Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property

damage and/or personal injury. Please keep instructions for future reference.

For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.

For Customer Service, Call 1-800-348-5004

44676

03/2017

or e-mail customerservice@focus-ontools.com

Table of Contents

Need help?

Do you have a question about the 44676 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speedway 44676

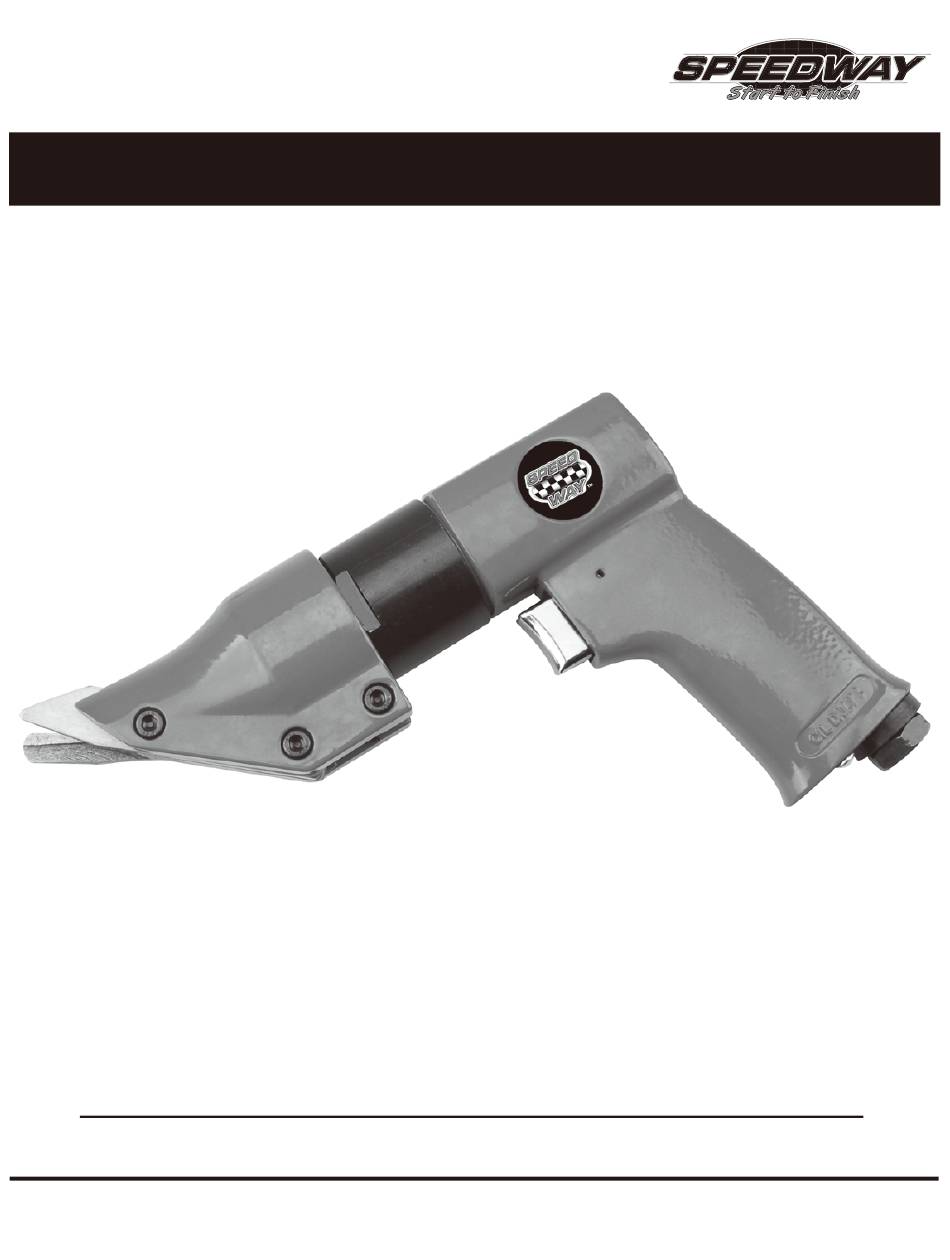

Page 1 Pistol Grip Air Shears Model: 44676 *Actual product may vary slightly *Actual product may vary slightly Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product. Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury.
Page 2: Specifications
Important Operating Instructions CALIFORNIA PROPOSITION 65 WARNING: You can create dust when you cut, sand, drill or grind materials such as wood, paint, metal, concrete, cement, or other masonry. This dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm.
Page 3: General Safety Instructions
Important Operating Instructions GENERAL SAFETY INSTRUCTIONS Keep the work area clean and well lit. Cluttered and dark areas increase the risk of electric shock, fire, and injury to persons. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
Page 4 Important Operating Instructions GENERAL SAFETY INSTRUCTIONS Risk of electric shock. This tool is not provided with an insulated gripping surface. Contact with a live wire will also make exposed metal parts of the tool live and shock the operator. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
Page 5: Specific Safety Instructions
Important Operating Instructions GENERAL SAFETY INSTRUCTIONS Tool service must be performed only by qualified repair personnel. When servicing a tool, use only identical replacement parts. Use only authorized parts. Use only the lubricants supplied with the tool or specified by the manufacturer. Never connect to an air source that is capable of exceeding 200 PSI.
Page 6: Vibration Precautions
Important Operating Instructions VIBRATION PRECAUTIONS This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms, and shoulders. To reduce the risk of vibration-related injury: 1. Anyone using vibrating tools regularly or for an extended period of time should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use.
Page 7 Important Operating Instructions controls the air supply even if the air hose is ruptured. The shut-off valve should be a ball valve because it can be closed quickly. Note: if an automatic oiler system is not used, add a few drops of pneumatic tool oil to the airline connection before operation.
Page 8: Work Area Set-Up
Important Operating Instructions WORK AREA SET-UP 1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury. 2. Route the air hose along a safe route to reach the work area without creating a trip hazard or exposing the air hose to possible damage.
Page 9: Storage And Maintenance
Important Operating Instructions 7. When finished, to prevent accidents, turn off the tool, detach the air supply, safely discharge any residual air pressure in the tool, and release the throttle and/or turn the switch to its off position after use. Clean external surfaces of the tool with clean, dry cloth, and apply a thin coat of tool oil.
Page 10 Important Operating Instructions 2. Daily - Air supply maintenance: Every day maintain the air supply according to the manufacturer s instructions. Maintain the lubricator s oil level. Drain the moisture filter regularly. Performing routine air supply maintenance will allow the tool to operate more safely and will also reduce wear on the tool.
Page 11 Air Supply Set-up For Customer Service, Call 1-800-348-5004 or e-mail customerservice@focus-ontools.com...
Page 12: Troubleshooting Guide
Important Operating Instructions TROUBLESHOOTING GUIDE Problem Possible Causes Likely Solutions Decreased output. 1. Not enough air pressure and/ 1. Check for loose connections and make sure that or air flow. air supply is providing enough air flow (CFM) at required pressure (PSI) to the tool's air inlet. Do not exceed maximum air pressure.
Page 13: Warranty
Important Operating Instructions WARRANTY Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
Page 14 PARTS LIST Pistol Grip Air Shears Model: 44676 For Customer Service, Call 1-800-348-5004 88007621 02/2014 or e-mail customerservice@focus-ontools.com...
Page 15 PARTS LIST Model: 44676 Pistol Grip Air Shears Part Description Part Description Housing O-Ring Ball Bearing Bushing Throttle Valve Rear End Plate O-Ring Trigger Cylinder Set Screw Washer Rotor Exhaust Diffuser Vane Screw Front Plate Air Inlet Ball Bearing Socket Head Screw...
