- Page 1 Sinterit SANDBLASTER XL USER MANUAL Read the instruction manual before using the device. Version 9/2020...
-
Page 2: Table Of Contents
12. Terms of warranty ................................19 13. Technical support ................................19 The SANDBLASTER XL is designed for cleaning, polishing and finishing of printouts, using dry abrasive material only. Sandblaster does not include an air compressor. 2 | Sinterit SANDBLASTER XL User Manual... -
Page 3: Marking Text Conventions Used In A Document
It is necessary to wear protective gloves and a face mask. Mandatory action when working with powder. ATTENTION! It is necessary to wash hands after each use of the Sandblaster XL. IMPORTANT! Information essential to correctly perform a specific task. -
Page 4: Safety Information
2. Safety Information The Sinterit SANDBLASTER XL may create a powerful stream of abrasive particles. To avoid injuries and/or property damage, carefully read the instruction manual before assembling, operating or performing maintenance of the sandblaster. At all times use your common sense when operating machines. -
Page 5: Power Supply
• Check that all components of the Sinterit SANDBLASTER XL are properly sealed. • Check the machine for defects previous to each use, in case of a defect, or when the machine does not function properly, first have it repaired by a specialized person/company. -
Page 6: Contents Of The Sinterit Sandblaster Xl Pack
3. Contents of the Sinterit SANDBLASTER XL pack ABRASIVE MATERIAL 8 kg Sinterit SANDBLASTER XL USER MANUAL Read the instruction manual before using the device. Version 6/2020 ADDITIONAL EQUIPMENT A. CONTENTS OF THE BOX WITH ADDITIONAL EQUIPMENT A.Power supply (US or EU version with proper plug) / B.T-type push-in pneumatic fitting / C.Pneumatic quick coupler (½”... -
Page 7: Inside Of The Sandblaster Chamber You Find

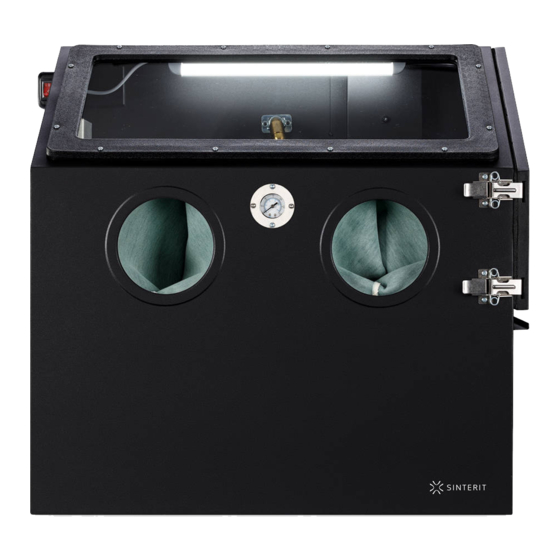

B. INSIDE OF THE SANDBLASTER CHAMBER YOU WILL FIND J.Control pedal’s pneumatic tubings (red and black) / K.Control pedal / L.Air blow gun pneumatic tubing / M.Compressor pneumatic tubing / N.Replaceable PE protective foil for SANDBLASTER XL viewing window (5 pcs.) / 4. Sinterit SANDBLASTER XL A. - Page 8 Image 2. View of the Sinterit SANDBLASTER XL front and right side. 8.Gutter (for collecting dust) / 9.Sandblaster chamber / 10.Door / 11.Door gasket Image 3. View of the Sinterit SANDBLASTER XL back and left side. 12.Power socket / 13.Lock hole cover / 14.Pneumatic inlet nipple / 15.Control pedal input nipples / 16.Adjustable mounting feet (4 pcs.)
-
Page 9: Specification
Image 4 View of the Sinterit SANDBLASTER’s XL inner chamber. 17.Air filter / 18.LED light / 19.Static Nozzle (nozzle lock nut with ceramic nozzle) / 20.Inner Air Blow Gun / 21.Inner Air Blow Gun pneumatic tubings / 22.Inner T-type push-in pneumatic fitting (for Inner Air Blow Gun) / 23.Static Nozzle Pneumatic tubing / 24.Inner chamber grid / 25.PE protective foil for viewing window... -
Page 10: Initial Startup Of The Sinterit Sandblaster Xl After Delivery
5. Initial startup of the Sinterit SANDBLASTER XL after delivery 1. Remove all the solid protective packaging. 2. Gently pull out the Sinterit SANDBLASTER XL and other accessories. 3. Remove the bubble wrap and place the machine on a stable surface. - Page 11 : black marker above - black tubing, no marker- red tubing. b. Push the Pneumatic tubings to the Control pedal accordingly: black collar (A) - black tubing, red collar (P) - red tubing. Sinterit SANDBLASTER XL User Manual | 11...
- Page 12 • Danger of crushing upper limbs when rising the Inner chamber grid. 10. Take the container with the Abrasive Material supplied with the Sinterit SANDBLASTER XL, open it and gently pour it in through the hole in the grid . Add not more than 10 kg / 22 lbs.
-
Page 13: Sandblasting The Printouts
(available in the Accessory box). • Nozzles smaller than No. 5 do not work precisely with the Sinterit Abrasive material. • A bigger size ceramic nozzle gets the job done faster because it can blast a larger surface, this also causes a higher air consumption, make sure the compressor can handle it. - Page 14 12. All remaining powder and abrasive material can be blown out of the printout with an external Air blow gun 13. After finishing work, turn off the pressure to 0 bar (0 psi) and turn off the sandblaster. 14 | Sinterit SANDBLASTER XL User Manual...
-
Page 15: Maintenance Of The Sinterit Sandblaster Xl
EXCHANGE OF ABRASIVE MATERIAL WITH SINTERIT ATEX VACUUM CLEANER To remove the used Abrasive material from the inside of the sandblaster we recommend using Sinterit ATEX Vacuum Cleaner. Image 8. One way to remove used Abrasive material is to use the Sinterit ATEX Vacuum Cleaner. -
Page 16: Standard Exchange Of Abrasive Material
STANDARD EXCHANGE OF ABRASIVE MATERIAL WARNING! A second person is required to help with the standard Abrasive material change. The Sinterit SANDBLASTER XL with the Abrasive weighs approx. 40 kg – improper maintenance (without the help of a second person) an cause injury. -
Page 17: Replacement Of Protective Rubber Gloves
, which is placed over the Viewing window (inside the chamber). This can easily be replaced by new foil (the five spare PE protective foils are available in additional accessories of the Sinterit SANDBLASTER XL). • Remove the old PE protective foil •... -
Page 18: Troubleshooting
9. General legal information Where this manual refers to Sinterit or the Company, this means Sinterit sp. z o.o. with its legal seat in Krakow, registered by the District Court for Kraków-Śródmieście in Krakow, XI Commercial Division of the National Court Register under number: 535095, NIP (tax number): 6793106416, with the share capital for a date of publication of this manual of PLN 102,050 (say: one hundred and two thousand and fifty). -
Page 19: Disclaimer
Sinterit is not responsible for any use of this information in relation to other products. Sinterit is not liable for any damages, including but not limited to losses or lost profits, resulting from the use of any materials (consumables) other than those provided to the purchaser by Sinterit. - Page 20 SINTERIT Sp.z o.o. ul. Nad Drwina 10 bud. B3, 30-741 Krakow, Poland www.sinterit.com Contact: +48 570 967 854...
