Summary of Contents for AirPower APV-350

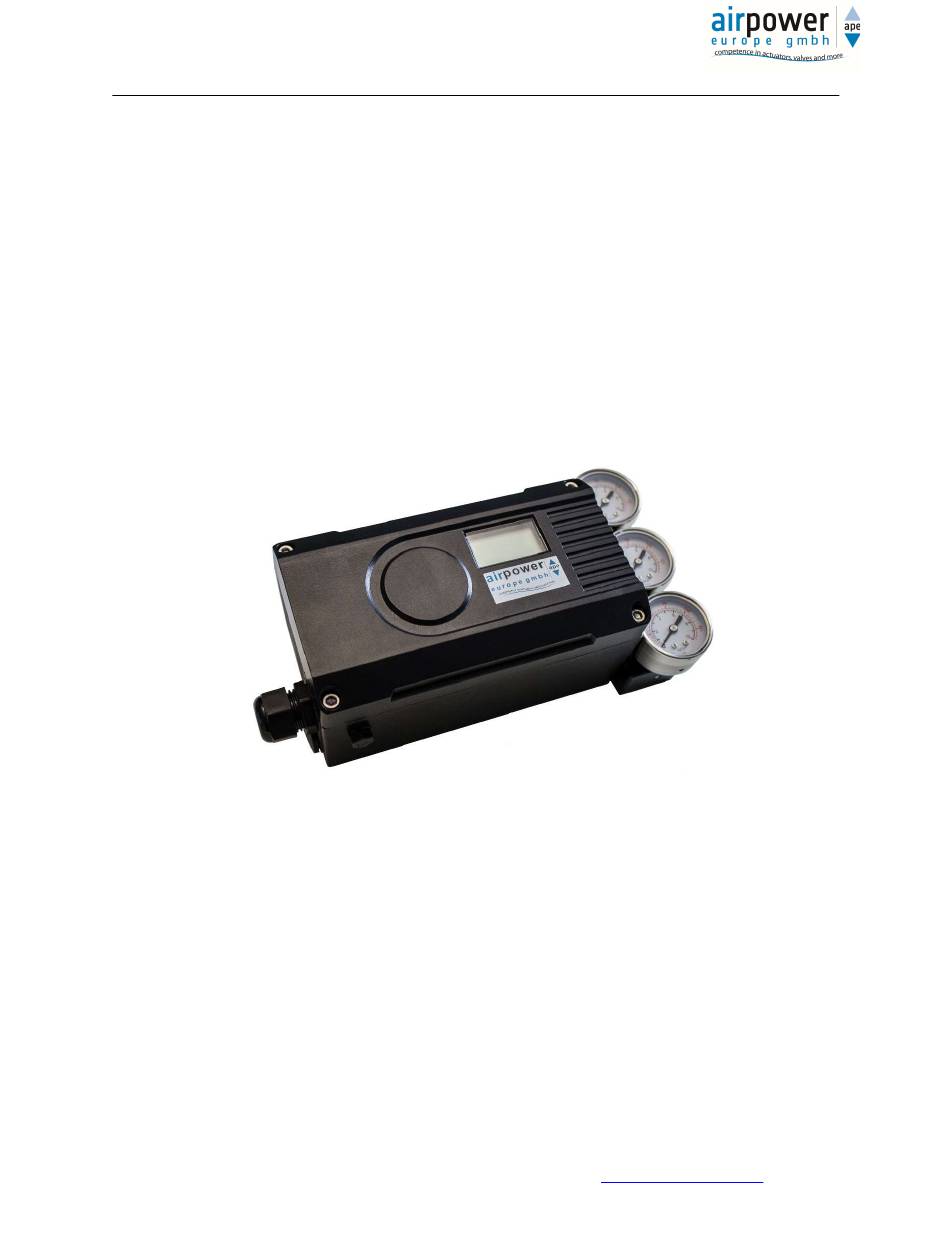

- Page 1 AVP SMART Positioner APV-350 Manual airpower europe GmbH -On the Hollow 7 - 53547 Dattenberg - Germany www.airpower-gmbh.com...
-
Page 2: Table Of Contents
5.5.2 END POINT OF THE POSITION SENSOR TOO HIGH................... 24 5.5.3 INITIALIZATION ERROR ........................... 25 5.5.4 MEASURING SPAN-RANGE IS INSUFFICIENT ................... 25 5.5.5 USER CHARACTERISTICS SETTING ERROR ....................25 airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 3: Information For The Operator
Caution Dangerous situation! Observe the operating instructions! Failure to do so may result in minor or moderate injuries! Note Important information for understanding the machine/plant or on optimized operations! airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 4: Safety And Warnings
6. If welding work is carried out near the device, the grounding of the welding equipment shall not be carried out by this device. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 5: Scope Of Delivery
2. Summary An AVP-350 SMART positioner is a two-wire (4 ... 20 mA) device of airpower europe GmbH. The positioner is a control accessory of the pneumatic actuator for valves. It is widely used in automatic control systems in the chemical industry, the energy industry, the metallurgy industry, the pulp and paper industry and many other sectors. -
Page 6: Functions
One solution to this problem is the integrated discharge circuit in the AVP-350, which protects the positioner from overvoltage. Note 1. The lightning protection function is offered as an option. 2. The grounding must be carried out in accordance with the relevant standards, before installing the device. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 7: Technical Data
Relative humidity 5 to 95% RH Environment Vibrations resistance 15 to 150Hz x 2g IP protection class IP65 Weight 2 .0 kg Dimension 170×96×92mm Casing Casing material Aluminum alloy airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 8: Installation
4 Installation 4.1 Dimensions Fig. 4-1 AVP-350 Dimensions Fig. 4-2 airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 9: Installation
Li m i t 2 Fig. 4-3 f e e d b a ck sh a ft f e e d b a ck l e ve r Fig. 4-4 airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... - Page 10 Mounting bracket Mounting angle Picker (actuator) Hexagon screw Fixing screw (actuator) - Hexagon M5×10 Spring washer Washer Fixing screw (brackets/angle) M5×10 Spring washer Washer 8 9 10 Fig. 4-5 airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 11 The pneumatic connector is located on the right side of the positioner. The positioner offers two connection types: G1/4 or NPT 1/4 (see order data). The specific type is indicated on the casing. Select the pipe to be connected accordingly. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 12 /intrinsically safe equipment, and the terminals must be connected correctly. Requirement for staff During installation, commissioning, operation, maintenance and repair, the operator must airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 13 Fig. 4-8 Electrical input connection output 4.4.2.2 Electrical connection - digital (binary) ( (Fig.4-9) Working voltage: <15.5V DC Output: Digital feedback module Output Signal status "high" (Trigger) ≥2.1 mA airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 14 Working voltage: 12 … 28V DC (11 + ~12-): Barrier requirement: Intrinsically safe parameter Ci =10nF Ui =28V DC Uo ≤28V DC Li ≈ 0 Ii =93mA Io ≤93mA Pi =0.65 W Po ≤0.65W airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 15 4.4.3.2 Electrical connection of the digital (binary) (Fig.4-12) Working voltage:12 … 35V DC Output: Digital output module (binary) Output Signal status "high" (Trigger) ≥2.1 mA Signal status "low" (Trigger) ≤1.2 mA airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 16 D C S Sig na l isola tor Ana lo g fe e d b a c k m o d ule Fig.4-13 Electronic connection of the position feedback module airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
-
Page 17: Operation
The second line from left to right shows "parameter number" and "name of parameter”. Note in areas below the LCD display becomes sluggish When the positioner is used -10°C, and the display refresh rate decreases significantly. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 18: Buttons
In contrast, when you press first, the opening angle is reduced Then hold down at the same time, the opening angle decreases quickly. Note airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 19: Configuration Mode
Menu P4 for configuring the function module, including safety valve settings, In-/output settings for switching function, current output settings, etc. In configuration mode, the user selects parameter group P1, P2, P3, or P4. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... - Page 20 Here the contents of the parameters are displayed: Fig.5-3 Configuring a parameter The first two digits of the second line show the parameter index number, and letters on the right show airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
-
Page 21: Changing A Parameter
Review working conditions and take action to ensure that the movement does not affect the process and personal safety. There are two ways to initialize: automatic tuning and manual tuning. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 22: Examination Before Initialization
After calibration, the parameter values are displayed in the upper row, in the lower line the corresponding calibration parameters displayed. DBUP IMUP ssUP SSDW 7. Press the A/M key to return to normal operation. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 23: Manual Calibration
After calibration, the parameter values are displayed in the upper row, in the lower line the corresponding calibration parameter displayed. DBUP IMUP SSUP SSDW Display: 10. Press the A/M to return to normal operation. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 24: Diagnostic Mode
/ the adapter. 5.5.2 End point of the position sensor too high If the feedback position in the non-initialized state is greater than 52.0, the LCD displays "UP": airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 25: Initialization Error
For some reason, the positioner opening angle of the valve does not refer to a certain position of the actuator. 100. bKER Display: Solution: Clean the valve. Check the components connected to the valve. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 26: User Parameter
Equal percentage 1:30 SFCT #SFCT LINE Inverse equal percentage 30:1 21 points freely adjustable FREE 3 points freely adjustable 3-POT SP00 #SP00 Setpoint -turning points 0,0 … 100,0 SP20 #SP20 airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... - Page 27 Min. output current 4,0 … 20,0 Amax #AMAX Max output current 4,0 ... 20,0 20.0 RISE ADIR #ADIR Current output direction RISE FALL PROT #PROT Write protection for HART airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
-
Page 28: Parameter
(reset to factory setting) Factory setting and reset initialization. Note The positioner must be reinitialized after the preset. All previously determined maintenance parameters are deleted. SDIR setpoint direction (see Fig. 6-1) airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... - Page 29 The setpoint ramp is effective in "Automatic" mode and limits the change rate of the effective setpoint. Use this parameter to set the value in seconds. When switching from "Manual operation" to "Automatic operation" mode, the effective airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 30 This parameter allows you to match the zero position of the display with the zero position of the valve. It also allows you to choose the direction of rotation of the sensor shaft (with a view of the open casing). airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 31 The following is the example of a 40 mm linear actuator to illustrate the dependence of the stroke on standardization, as well as on the parameters "YA" and "YE". Fig.8-1 YNRM = MPOS or YNRM = FLOW; Default: YA = 0% and YE = 100% airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 32 If DO1 = HSET, valve position is greater than SW1, channel 1(DO1) of the binary output module "high". 46. DO2 Digit output function 2 If the positioner has detected a setting error, channel 2(DO2) from the binary output module is "high" (contact closed). airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
- Page 33 Conveniently configure Save configurations Retrieving diagnostic data Display readings online If PROT = ON, configuration on the device is allowed, with OFF write protection is activated. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
-
Page 34: Faults And Maintenance
7 Faults and maintenance 7.1 Trouble shooting If the positioner shows a malfunction, follow these steps to prevent the fault from being eliminate. If you are unable to eliminate the fault with these steps, please contact airpower europe GmbH. Malfunction Reason... -
Page 35: Maintenance
The device is additionally protected by a drying agent, which is located in the packaging. Permanent sunlight should be avoided. The storage temperature should be between +5 and 40°C at a maximum of 75% relative humidity. airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com... -
Page 36: Order - Information
9 Ordering - Information 9.1 Product models available: airpower europe GmbH, Auf der Hohl 7, D-53547 Dattenberg, www.airpower-gmbh.com, sales@airpower-gmbh.com...
