SERVEREDGE RJ45-8P8C-C6XX
TERMINATION INSTRUCTIONAL

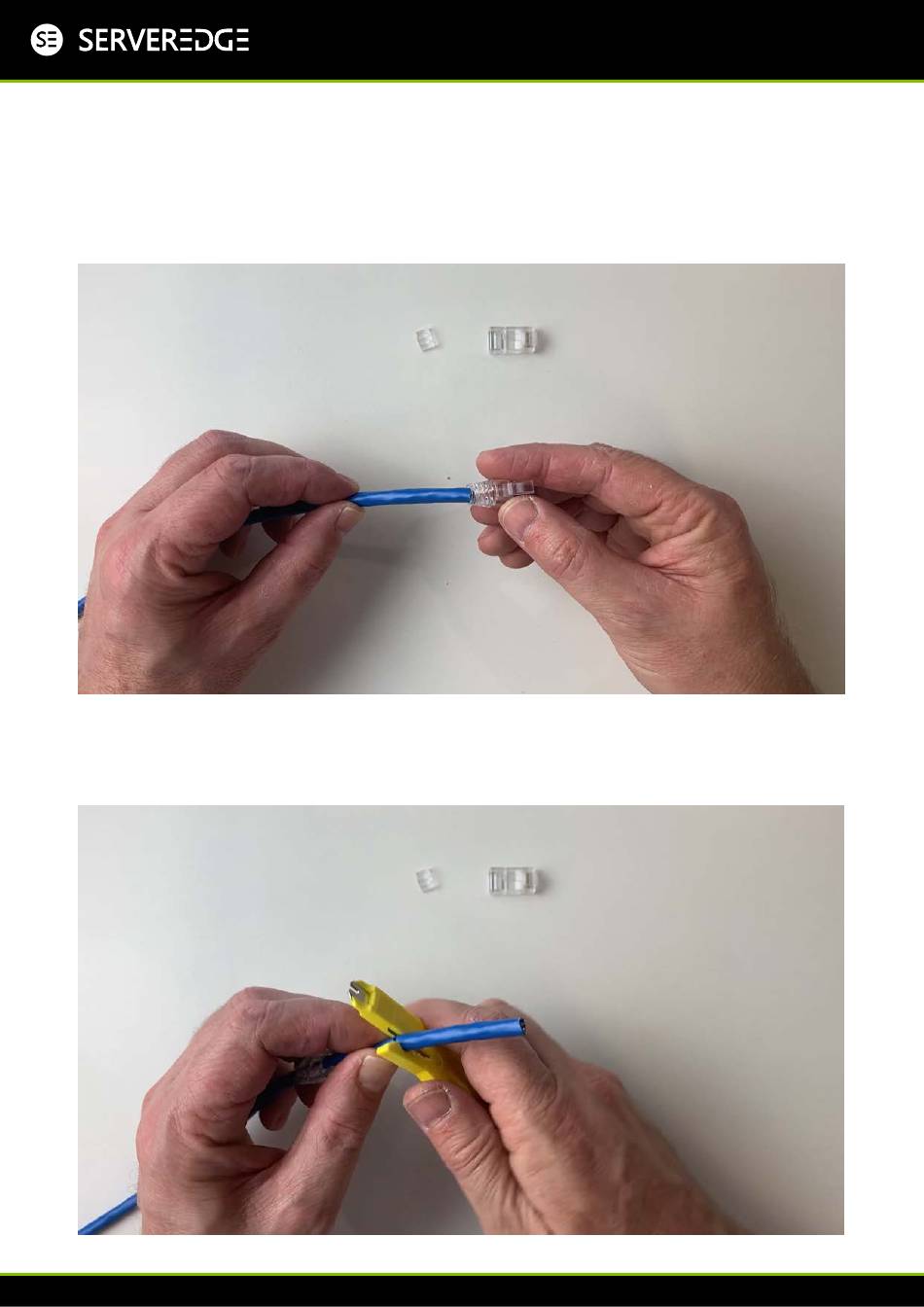

STAGE 1.
Slide the strain relief boot over the end of the cable
STAGE 2.
Using a cable stripper, strip the outer sheath approximately 50mm.
W:
www.serveredge.com
T E R M I N A T I O N I N S T R U C T I O N
P:
1300 335 797
E:
info@serveredge.com.au
Advertisement
Related Manuals for Serveredge RJ45-8P8C-C6 Series
Summary of Contents for Serveredge RJ45-8P8C-C6 Series
- Page 1 T E R M I N A T I O N I N S T R U C T I O N SERVEREDGE RJ45-8P8C-C6XX TERMINATION INSTRUCTIONAL STAGE 1. Slide the strain relief boot over the end of the cable STAGE 2.
- Page 2 T E R M I N A T I O N I N S T R U C T I O N STAGE 3. Remove the outer sheath. STAGE 4. Using flush cutters remove the rip cord. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 3 T E R M I N A T I O N I N S T R U C T I O N STAGE 5. Separate the conductor pairs from central spine. STAGE 6. Using flush cutters cut away the central spine. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 4 T E R M I N A T I O N I N S T R U C T I O N STAGE 7. Untwist all conductor pairs. STAGE 8. Using a straight edge, firmly straighten all conductors. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 5 T E R M I N A T I O N I N S T R U C T I O N STAGE 9. Ensure all conductors are completely straight – this is an important step STAGE 10. Using flush cutters, cut away excess conductor tails, leaving approximately 25mm length. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 6 Identify the 90 degree and angled edge of the loading bar. STAGE 12. With the angled edge facing UP, insert the conductors into the loading bar, pin (1) and the green pair starting on the left. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 7 Leave approx. 5mm between the edge of the loading bar and the outer sheath of the cable – This is an important step. STAGE 14. Holding the loading bar in place with your finger, using flush cutters cut away conductor excess. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 8 T E R M I N A T I O N I N S T R U C T I O N STAGE 15. Insert the cable and loading bar into the plug module. Ensure the loading bar angled edge is facing UP STAGE 16. Firmly push the cable into plug module. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 9 T E R M I N A T I O N I N S T R U C T I O N STAGE 17. Ensure the outer sheath has passed the crimp tool plenum compression point. STAGE 18. Ensure all conductors are clearly visible at the tip of the plug module. Important step www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 10 T E R M I N A T I O N I N S T R U C T I O N STAGE 19. Slide the strain relief boot into the plug module. STAGE 20. Using an RJ45 modular crimp tool, insert the plug module into the JR45 slot and crimp the connector. www.serveredge.com 1300 335 797 info@serveredge.com.au...
- Page 11 T E R M I N A T I O N I N S T R U C T I O N STAGE 21. Termination Complete – TEST AND VISUALLY CHECK TERMINATION www.serveredge.com 1300 335 797 info@serveredge.com.au...
