NDR TL-RGB-CTLR User Manual

DESCRIPTION
The RGB + Tunable White five color LED controller is
designed with ultra sensitive touch colour to adjust
static RGB colour or any colour temperature ranging
from 1800K-6500K fast and accurately. Independent
dimming function of each R, G, B channel to achieve
endless possibilities of colours. 10 built-in dynamic
modes to create unique effects with the ability to
save your favorite setting as a scene.
SPECIFICATIONS
LED Remote
Output signal: RF(2.4GHz)
Working voltage : 3VDC(CR2032)
Standby time: 1 year
Remote distance: 30m
Size: 4.2"/107mm x 2.3"/58.5mm x 0.2"/9mm
LED Receiver
Input voltage: 12-24VDC
Output type: PWM constant voltage
Output current: 5CH, 3A/CH, Total max 15A
Output power: 180-360W
Size: 4.5"/114mm x 1.5"/38mm x 0.8"/20mm
www.ndrelectric.com
RGB + TUNABLE WHITE LED
CONTROLLER & REMOTE GUIDE
FEATURES
• Mini style controller with 5 channel constant voltage
output (R/G/B/WW/CW).
• Smooth dimming and switch without any flickering.
• Built in 10 dynamic mode, include jump or gradual
change style.
• Adopt 2.4GHz wireless technology, remote distance
up to 30m.
• Auto-transmitting function, one receiver can transmit
the signal from the remote to another receiver within
15m, so the remote control distance can be
beyond 100m.
• Auto-synchronization function, different receivers
can work synchronously when they are controlled
by the same remote, under same dynamic mode
and same speed.

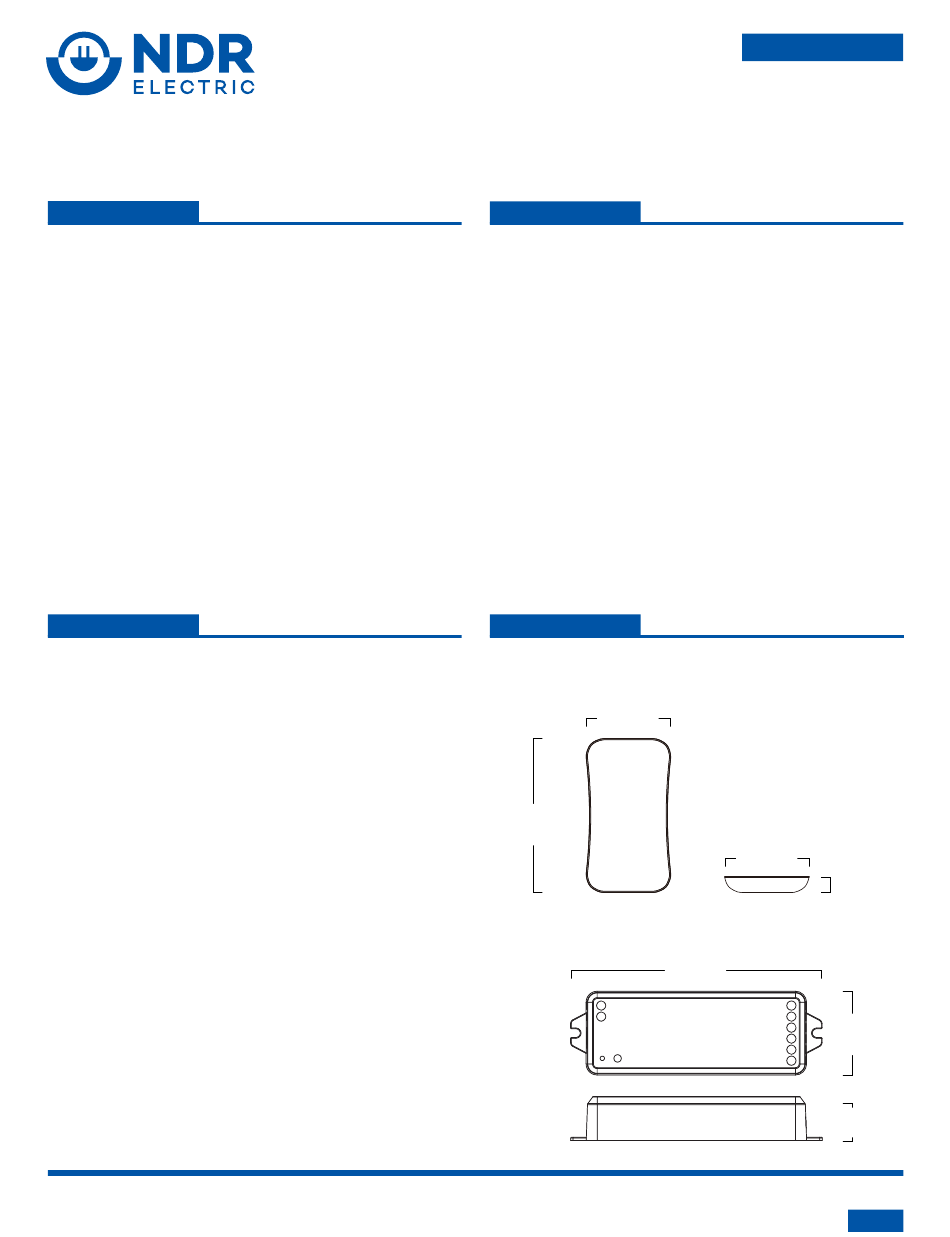

DIMENSIONS
LED REMOTE
2.3"
58.5mm
4.2"
107mm
LED RECEIVER
t. 1.514.695.8228 I 1.855.739.8228
USER GUIDE
TL-RGB-CTLR
PINNACLE SERIES
2.3"
58.5mm
0.2"
9mm
4.5"
114mm
1.5"
38mm
0.8"
20mm
