Summary of Contents for WIESHEU Euromat B4 TS 300

  • Page 1 Euromat B4 / B8 / B15 TS 300 Convection Oven Euromat B4 / B8 / B15 TS 300 Operating Manual...
  • Page 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4...

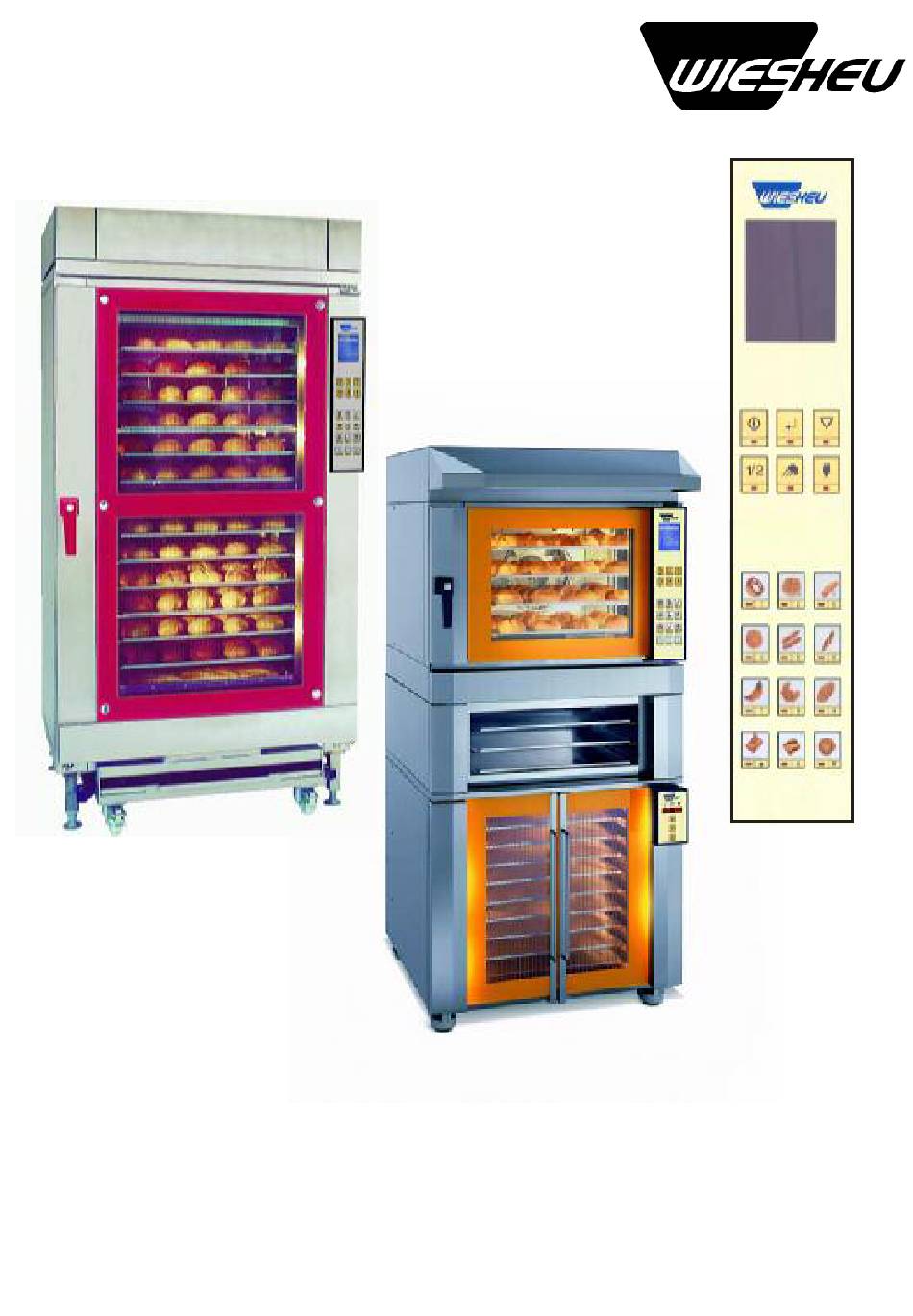

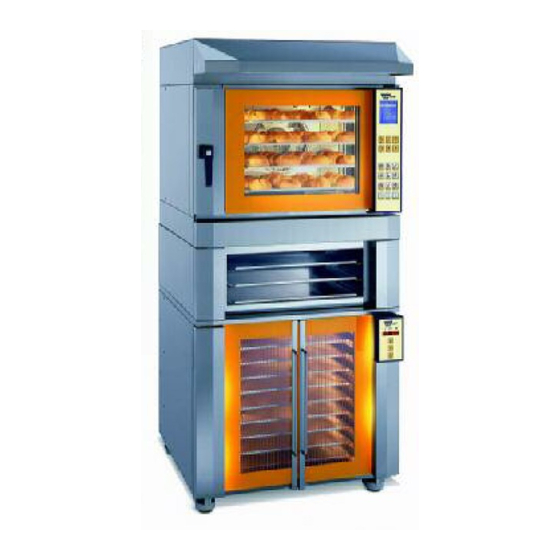

  • Page 3 Operating Manual Euromat TS 300 B4 TS 300 with Storage Rack and standard Prover B8 TS 300 with Stand B15 TS 300 Page 3...

  • Page 4: Table Of Contents

    Changes while the Program is running ..........14 Changing existing Programs ............. 15 Writing a new Program ................ 19 Service Programs ................21 Wiesheu Service Hotline ..............24 Cleaning ....................24 Cleaning Materials for manual cleaning and care ......25 Conventional Cleaning Program ............26 De-calcifying ..................

  • Page 5: Ts 300 Operating Panel

    Operating Manual Euromat TS 300 TS 300 Operating Panel The detachable Operating Panel of the Door Control 300 (TS 300) consists of the following parts: LC – Screen: Shows Program Parameters and Menu Pages. Function Key Pad: To select Functions Product Key Pad: 1.
  • Page 6 Operating Manual Euromat TS 300 LC - Screen Confirmation Key / Enter Key ( 2 ) Stop Key ( 3 ) On / Off Main Key ( 1 ) Manual Input Key ( 6 ) Steamer ( 5 ) Half-load Key ( 4 ) Product Keys ( 7 ) Product Key P10: Arrow Up Product Key P11: Number Key ”0”...

  • Page 7: Stand By - Mode / On And Off Switch

    Operating Manual Euromat TS 300 Program Symbols TS 300 Motor Speed Chamber Temperature Exhaust Closed Pre-heating Exhaust Open Product Key Numbers Motor Stop Time Time Interval to next Steaming Steam Volume Steamer active Conventional Cleaning Number of Steamings Start-up The oven should be thoroughly cleaned before the first operation for hygienic and health reasons.

  • Page 8: Ts 300 Operating Levels

    Operating Manual Euromat TS 300 Turning the Oven Off To turn the oven Off, press the On / Off key (1) about 5 seconds until the screen saver appears. The oven is then back in Stand By - Mode Brightness Control LC-Screen You can set the brightness of the LC-Screen individually by pressing and holding down the Half-load key 4 and changing the value with the Arrow key and 12...

  • Page 9: The Pictogram - Mode

    Operating Manual Euromat TS 300 The Pictogram - Mode Press the On / Off Key once. The oven is then in the Pictogram - Mode. Program Selection Select the required program with the Product Key. The selected program appears on the LC - Screen.
  • Page 10 Operating Manual Euromat TS 300 Half-load Select Half-load when the oven is only half full. ·When the program has started, the LED on the Half-load Key blinks for about 5 seconds and can be pressed during this time. The program values will then be automatically adapted i.e.

  • Page 11: The Computer - Mode

    Operating Manual Euromat TS 300 The Computer - Mode The Computer - Mode has 99 programs with 9 program steps. The Program Steps consist of Pre-heating and 8 baking steps. Yo get into the Computer - Mode press the On / Off Key twice. The Product Key Pad has different settings in the Computer - Mode: The Product Keys 1 - 9 become the...
  • Page 12 Operating Manual Euromat TS 300 10:10 Bread Rolls If you have selected a program with the Confirmation Key, the TS 300 display shows the complete program content, as shown in the picture. 010 min 200 ml 000 sec 005 min Pre-heating ·Press the Confirmation Key again.
  • Page 13 Operating Manual Euromat TS 300 Half-load Select Half-load when the oven is only half full: ·When the program has started, the LED on the Half-load Key blinks for about 5 seconds and can be pressed during this time. The program values will then be automatically adapted i.e.

  • Page 14: Programing

    Operating Manual Euromat TS 300 Programming Programming with the TS Control is only possible in the Computer-Mode. You have the following programming possibilities with the TS 300: You can make changes while a program is running. You can change existing programs as required. In the Computer you can save your own programs in unoccupied program numbers.

  • Page 15: Changing Existing Programs

    Operating Manual Euromat TS 300 4.) Select the position to be changed with the arrow key. The selected position appears highlighted. 5.) New numeric values can be entered with the Digit keys 1-9 and 0. 6.) To change selected fields ( Motor slow / medium / fast, Exhaust Flap position Open / Closed ) hold down the digit key ”0”...
  • Page 16 Operating Manual Euromat TS 300 10:10 Example: Bread Rolls The Cursor points to Pre-heating Temperature Enter Pre-heating Temperature Enter the required value. 010 min e.g. ”200” 200 ml 000 sec 005 min 10:10 Setting the Pictogram Number Bread Rolls When pressing the arrow key down, the cursor moves to the Pictogram Number.
  • Page 17 Operating Manual Euromat TS 300 Enter Baking Time 10:10 Bread Rolls By pressing the arrow key again, the Cursor moves to Baking Time. Enter a value e.g. ”012” 010 min 200 ml Enter Steam Volume 000 sec By pressing the arrow key again, the Cursor 005 min moves to Steam Volume.
  • Page 18 Operating Manual Euromat TS 300 10:10 Select Exhaust Flap Bread Rolls Position By pressing the arrow key again, the Cursor moves to Exhaust Flap position. Hold the zero key down and select with the arrow key e.g.: 010 min Exhaust Flap closed 200 ml 000 sec Exhaust Flap open...

  • Page 19: Writing A New Program

    Operating Manual Euromat TS 300 Saving new Values To save the new values, press the Manual Input Key again. save The question appears: “Save?” If you want to save, press the Enter Key If you dont want to save, cancel the process with the Stop Key.
  • Page 20 Operating Manual Euromat TS 300 Assign Program Name from provided list. When all baking steps are entered, exit the ”X” position with the arrow key. Entering the Program Name is activated. 10:10 Bread The complete name appears highlighted. You can select a name from the provided list by holding down the ”0”...
  • Page 21 Operating Manual Euromat TS 300 Saving a new Program To save the program, press the Manual Input Key again. The question appears “save?” save Confirm with the Enter Key.. You then exit the Programming Mode. The new program will be saved automatically. End Programming cancel To end programming, press the Stop key.

  • Page 22: Service Programs

    Operating Manual Euromat TS 300 Service Pprograms In the Menu Service Programs, you can set various functions, e.g. ”Set Clock”. Furthermore, you can also set specific functions, e.g. ”Cleaning”. Select Service Programs: 10:20 Code Word The Service Program Menu is located in the Computer Operation under the program code number ”00”...
  • Page 23 8 ”back” with the arrow and press the confirmation key. Wiesheu Service Hotline Back If your WIESHEU Oven has a defect: Refer to the section ”What to do when?” to see if you can correct the problem yourself. Page 23...

  • Page 24: Wiesheu Service Hotline

    Operating Manual Euromat TS 300 if this is not possible, call the WIESHEU SERVICE - Hotline. This is how you can call the Hotline - Number in the Menu ”Service Programs” 10:20 Select Service Menu Code Word The Service Program Menu can be selected...

  • Page 25: Cleaning Materials For Manual Cleaning And Care

    Order No.: 56010 Plastic Bottle without Spray Pressure Nozzle Order No.: 56011 Pump Nozzle Baking Oven Wiesheu - Baking Oven Cleaner empty Cleaner Plastic Container with Spray Nozzle Order No.: 56001 Plastic Container Order No.: 56002 Please note the instructions on the...

  • Page 26: Conventional Cleaning Program

    Operating Manual Euromat TS 300 Conventional Cleaning 10:25 Program Service Select Cleaning Cleaning Data Transfer - You are now in the Computer Operation in Service the menu ” Service Programs”. Set Timer Pre-heating Time - Select the program line ”Cleaning” and press the Confirmation Key.
  • Page 27 Operating Manual Euromat TS 300 The Program is Running 11:40 - The conventional cleaning program Conventional Cleaning runs for approx. 30 minutes. Steam is injected at intervals. Required Actual Baking remnants are loosened by the moisture and can then be easily removed. - The Program Parameters are displayed 53 °C during the cleaning program.

  • Page 28: Calcifying

    Operating Manual Euromat TS 300 Decalcifying lift the left and right racks up and take out Decalcifying the Steam Jet in Pipe Steamers (Bakery) Hinweis The Steam pipe in ovens with build in steamers should be decalcified regularly depending on the water hardness, (see table).
  • Page 29 Operating Manual Euromat TS 300 Decalcifying the Cascade Holder„Trays“ (Inlet Valve) Thermo Element Type K Hinweis The Inlet Valve in ovens with build in steamers should be decalcified Buffer Plate regularly depending on the water hardness, (see table). Proceed as described below: Proceedure : 1.) Lift right rack and take out.

  • Page 30: Replacing The Door Seal

    Operating Manual Euromat TS 300 Decalcifying / Cleaning Safety Notice ⇒ Do not use high pressure cleaners! ⇒ Do not let the oven come in contact with solvents or acid spray as the passive stainless steel layer could be damaged, causing the oven to discolour. ⇒...

  • Page 31: Lighting

    Operating Manual Euromat TS 300 Lighting Baking Chamber Door Replacing the Baking Chamber Lights Danger ! Before working on the electrics, pull the mains plug! Pull the clear glass panel away from the Hinweis sealing glass panel Proceedure: 1) Pull the clear glass panel away from the baking chamber (sealing glass).

  • Page 32: Pro Clean Cleaning Program

    Operating Manual Euromat TS 300 Cleaning the Baking Chamber with the fully ·Only hand tighten the jet. Do not use tools. automatic cleaning system PRO CLEAN The jet should be removed after every use, emptied,cleaned and then replaced to avoid These instructions apply only for ovens fitted dripping.
  • Page 33 Operating Manual Euromat TS 300 Cleaning Program 10:30 PRO CLEAN Service Enter the Computer Mode, press the Product Key 11 (digit 0) twice. You are now in the Clean Service Programs. Press the Enter Key. The Data Transfer Display shows the frame in the picture. Service Set Timer Select Clean...
  • Page 34 Operating Manual Euromat TS 300 10:30 Program is Running Pro Clean 1 - The cleaning program Pro Clean is running in the required level. Start Stop Changing the Program Level - Select line 8 ”Back”. - In the selection menu ”Clean”, select a new Temperature program level and start again as desribed.
  • Page 35 Operating Manual Euromat TS 300 Automatic Cooling before Pro Clean 10:30 Starts Clean - The cleaning program Pro Clean in the TS 300 has an automatic cooling process Conventional before it starts. Pro Clean 1 Pro Clean 2 - If the temperature is over 60°C, the program Pro Clean 3 does not start immediatly.

  • Page 36: Autostart

    Operating Manual Euromat TS 300 Auto - Start 10:30 Clean With Autostart - Pro Clean, you can program cleaning cycles. The oven starts the Pro- Clean Cleaning Program at the pre- Conventional programed time automatically. Pro Clean 1 Pro Clean 2 Enter the Computer Mode, press the Product Pro Clean 3 Key 11 (digit 0) twice.
  • Page 37 Operating Manual Euromat TS 300 10:30 Enter Time Autostart Clean - Move arrow key forward. 00.00 00.00 - The cursor points to the first digit of the We 00 00.00 timer. 00.00 - Enter required time. 00.00 00.00 00.00 Back 10:30 Autostart Clean Save...

  • Page 38: Data Transfer

    Operating Manual Euromat TS 300 Data Transfer With the Data Transfer Program Dapro, program data can be send from a PC to an oven or from an oven to a PC. Before transfering, connect the PC to the oven with an appropriate data cable. Data Cable Part No.

  • Page 39: Setting The Clock

    Operating Manual Euromat TS 300 Time Set 10:50 In the Menu ”Time Set”, you can set the time, Service date and day. Note! When you use the ”Pre- heating Time” program, make sure to enter the values correctly. Clean Data Transfer Select ”Time Set”...

  • Page 40: Saving Values

    Operating Manual Euromat TS 300 Enter Day 10:50 Time Set - Press the arrow key down. The cursor now points to the day input. New Time - You can enter the day by holding down the 10:50:26 ”0” key and use the arrow key to ”Continue” Fr 11.07.03 until the required day is reached.

  • Page 41: Pre-Heating Time

    Operating Manual Euromat TS 300 Pre-heating 10:50 Service You can enter the time when the oven is to start pre-heating automatically for any day of the week. Clean Data Transfer Select ”Pre-heating Time” Service Time Set Select the Program Line ”Pre-heating Time” Pre-heating Time and press the confirmation key or enter the digit 5.
  • Page 42 Operating Manual Euromat TS 300 Enter Time 10:30 Autostart Clean - Press the arrow key down. 150°C 05.30 The cursor points to the first digit of the Time 000°C 00.00 of the first day ”Mo”. We 000°C 00.00 000°C 00.00 - Enter the required time .

  • Page 43: Ts 300 Error Indicators

    Operating Manual Euromat TS 300 Error Display TS 300 Display/ Problem Cause Corrective Action Symbol No Water · Water tap not open Þ Open water tap Shows that the steam · Steam pipe Þ clean/decalcify time was too short. calcified/blocked Not enough Water ·...
  • Page 44 Operating Manual Euromat TS 300 If a fault occurs, please consult the indicators in the table below before calling Customer Service. Problem Cause Corrective Action Water getting into the · Defective magnetic valve or level Þ Customer Service Chamber control Ventilation wheel not ·...

  • Page 45: Standard Data Sheet For B4 With Pipe Steamer

    Operating Manual Euromat TS 300 Standard Data Sheet for B4 with Pipe Steamer Step Program Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 Product 7 Product 8 Product 9 Steps Bakery Bread Pretzels Baguette Unfilled Pastry Croissant Butter Pizza...

  • Page 46: Standard Data Sheet For B4 With Cascade Steamer

    Operating Manual Euromat TS 300 Standard Data Sheet for B4 with Cascade Steamer Step Program Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 Product 7 Product 8 Product 9 Steps Bakery Bread Bretzels Baguette Filled Croissant Rolls Par Bake Par Bake...

  • Page 47: Standard Data Sheet For B8 With Pipe Steamer

    Operating Manual Euromat TS 300 Standard Data Sheet for B8 with Pipe Steamer Step Program Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 Product 7 Product 8 Product 9 Steps Bakery Bread Baguette Filled Pastry Croissants Pretzels Pretzel- Butter...

  • Page 48: Standard Data Sheet For B4 With Cascade Steamer

    Operating Manual Euromat TS 300 Standard Data Sheet for B8 with Cascade Steamer Step Program Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 Product 7 Product 8 Product 9 Steps Bakery Bread Pretzel Baguette Filled Croissant Rolls Par Bake Par Bake...

  • Page 49: Blanc Standard Data Sheet

    Operating Manual Euromat TS 300 Standard Data Sheet Blanc Step Program Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 Product 7 Product 8 Product 9 Steps Bakery Products Pre-heating Temp. in °C Product Key Baking Temp. in °C Baking Time in min.

  • Page 50: Recipes

    Operating Manual Euromat TS 300 Our best Recipes for You! Schwabian Yeast Garland 1 kg Wheat Flour Type 405 10 g Butter 140 g Suger 10 g Salt 100 g Egg 40 g Yeast 400 g Milk Lemon, Vanilla to taste Dough rest : 30 min.
  • Page 51 Operating Manual Euromat TS 300 Afew more little somethings! Fire Pastry Ingrediants for about 15 pieces. Puff or ordinary pastry 200 g diced pork 2 diced green peppers 1000 g dark, red tinned beans 500 g white tinned beans 100 g fresh chili cut fine 750 g tomatoe sauce 3 eggs basil, salt, pepper...

  • Page 52: Guarantee / Ownership

    This document was drawn up with the greatest care and checked for compliance with the described baking oven. However, some deviations or errors may occur. WIESHEU GmbH can not be held legally liable for any errors or their consequences. The manufacturer reserves the right to make technical and optical changes.
