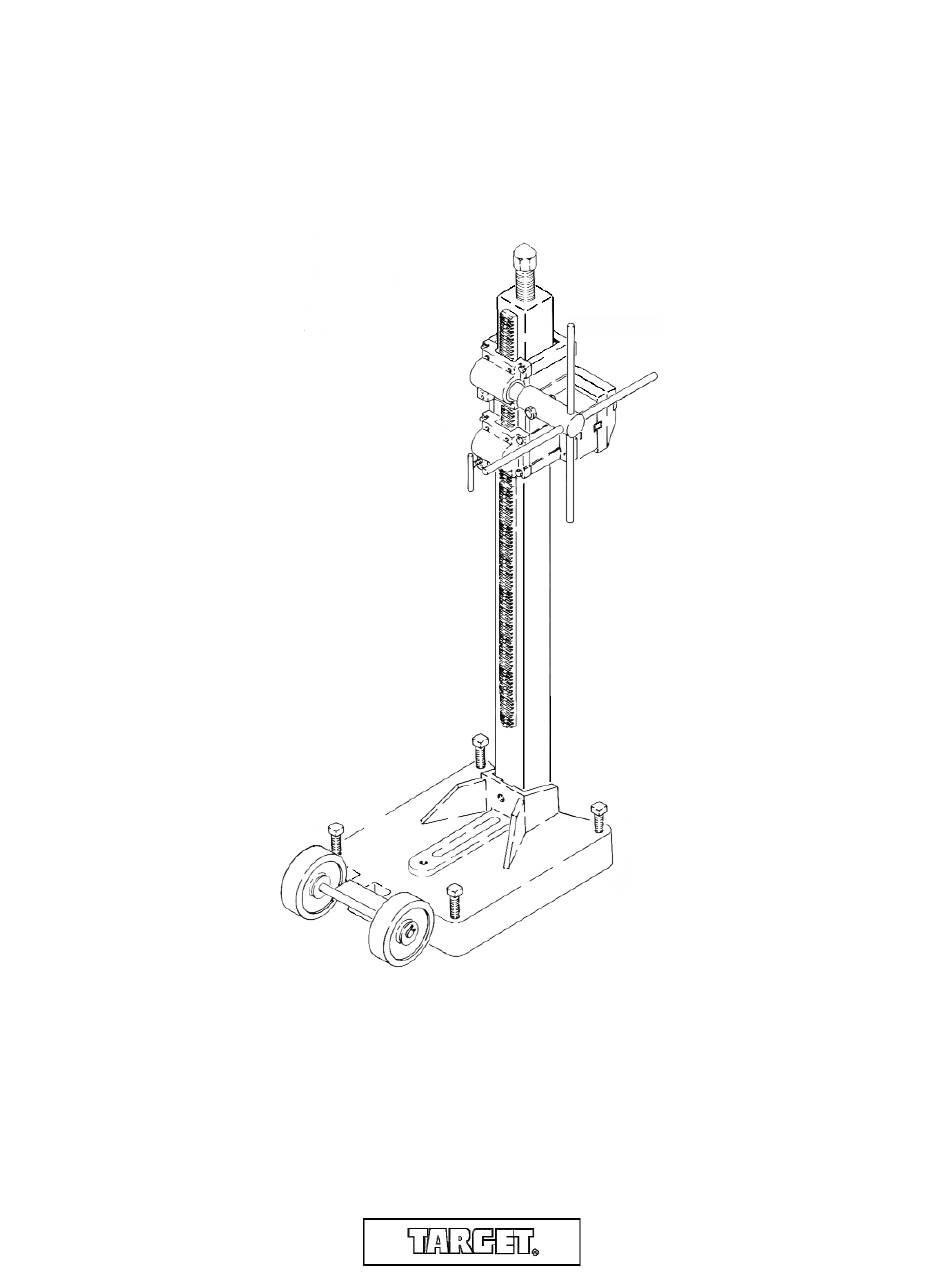

  • Page 1 DRILL STAND 2812 Operating and Maintenance Instructions Spare Parts List...
  • Page 2 Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: · Lead from lead-based paints, · Crystalline silica from bricks and cement and other masonry products and ·...
  • Page 3 Introduction Congratulations on your selection of a Target 2812 Drill Stand. We are certain you will be pleased with your purchase of one of the finest drill stands on the market. We want to help you get the best performance from your new machine and to operate it safely.
  • Page 4 The safe operation of mechanical equipment is a partnership between the manufacturer and the person who operates it. At Target we take this partnership very serious by designing our equipment to be the safest and the most reliable equipment available to do the job. To insure...
  • Page 5 LOCK CARRIAGE TO COLUMN WHEN NOT IN USE BY TIGHTENING LOCK SCREW (26), PAGE 15. MODEL 2812 ACCESSORIES ASSEMBLY INSTRUCTION Assemble the Model 2812 Drill Stand as shown on page 14. Attach Wheel Assembly (17) to Base (9 or 12), page 14, with capscrews and washers (14 and 15).
  • Page 6 VACUUM SYSTEM TROUBLESHOOTING If the pump motor is running and the gauge indicates zero vacuum or low vacuum, check the following: Release Valve (15), page 17, not closed. Vacuum pad gasket damaged or pads not seating on floor surface properly. Pump filter clogged.
  • Page 7 MAINTAIN DRILL WITH CARE. Keep drill clean at all times for best and safest perform ance. Follow instructions for lubricating. Keep handles dry, clean and free of oil or grease. Inspect switches, tool cords and extension cords periodically and have them repaired if damaged.
  • Page 8 EXTENSION CORD CHART When an extension cord is used, it should also be a 3 wire cord to permit proper grounding of the drill. As the distance from the supply outlet increases, heavier gauge extensions are required. The use of extension cords of inadequate size wire causes a serious drop in voltage, loss of power and possible motor damage.
  • Page 9 GROUNDING INSTRUCTIONS This drill should be grounded while in use to protect the operator from electric shock. The drill is equipped with an approved three-conductor cord and three-prong, grounding-type plug to fit the proper grounding-type receptacle. The green conductor in the cord is the grounding wire. Never connect the green wire to a live terminal.
  • Page 10 Drill Stand Parts List DS 800 Drill Stand - Parts List Part No. Description Qty. 541 40 05-62 HU (100A) Carriage Assembly Red, with Handles 541 40 38-92 D (100A) Carriage Assembly Blue, with Handles 541 40 05-06 HU (110A) Carriage Body, Red 541 40 38-78 D (110A) Carriage Body, Blue...

  • Page 11: Table Of Contents

    Drill Stand Parts List DS 800 Drill Stand - Parts List Part No. Description Qty. 541 40 12-32 HU (180) Narrow Base Assembly 541 40 38-95 D (180) Narrow Base Assembly 541 40 35-19 (C490) Leveling Screw, 3/4-10NC x 4" 541 40 11-36 HU (184A) Large Base Assembly - Combination Anchor/Vacuum 541 40 38-97 D (184A)
  • Page 12 541 40 10-03 (237) Boot, Motor Switch 541 40 09-99 (238) Switch Plate 541 20 19-07 (248) Ammeter, 0-30A 2812 Carriage 541 40 14-46 (473) Mounting Bracket, DS 800 Carriage 541 40 14-44 (474) Clip - Male Dovetail 541 40 14-42 (475-1)
  • Page 13 Drill Stand Parts List DS 800 Drill Stand - Parts List Part No. Description Qty. ANGLE BRACKET ASSEMBLY 541 40 00-62 (105) Angle Bracket Assembly 541 40 05-40 (106) Upper Backstay Bracket 541 40 16-94 (752051) Lower Backstay Bracket 541 40 16-88 (752052) Lower Backstay 541 40 16-83 (752053) Upper Backstay...

  • Page 14: 541 40 12-32 Hu

    Drill Stand Parts List DS 800 Drill Stand - Parts List Part No. Description Qty. OPTIONAL ROLLER CARRIAGE - Cont'd. 541 40 15-64 HU (270) Upper Roller Housing Assembly 541 40 38-88 D (270) Upper Roller Housing Assembly 541 40 15-62 HU (271) Housing Only 541 40 38-79 D (271) Housing Only...

  • Page 15: 541 40 35-19 (C490)

    Item Number Part Number 541 40 11-37 (165) 541 40 04-13 (139) (Includes key) 541 40 37-74 (C-294) Milwaukee mount 541 40 37-71 (C-341) DeWalt mount 541 40 02-77 (73234) Cardi mount 541 40 12-40 (170) 10HU/D (Includes key and hardware) 541 40 12-83 (172) (Adapter only)

  • Page 16: 541 40 35-23 (C46)

    Carriage Assembly 541 40 05-62 HU / 541 40 38-92 D Item Number Part Number 9HU/D 541 40 04-58 (123) 541 40 22-57 (C-274) 541 40 37-54 (C-419) 541 40 37-91 (C175) 541 20 52-40 (C-59) 541 40 37-84 (C-228) 541 40 14-72 (295) 541 40 04-56 (128) 541 40 04-62 (121A)

  • Page 17: Single Pad Vacuum System

    Item Number Part Number 541 40 37-48 (304) 541 40 15-92 (409) 541 40 18-99 (313) 541 40 19-32 (310) (Includes gasket) 541 40 19-30 541 40 19-01 541 40 14-05 541 40 14-25 Single Pad Vacuum System 541 40 00-57 Dual Pad Vacuum System 541 40 00-55...

  • Page 18: 541 40 24-23 (A41)

    Item Number Part Number 541 40 14-91 (447) 11 12 13 14 541 40 24-22 (A 42) 541 40 24-22 (A 42) 541 40 15-08 (441) 541 40 24-23 (A 41) 541 40 15-96 (408) 541 40 16-02 (407) 541 40 15-92 (409) 541 40 37-85 (C223) 541 40 15-08 (441) 541 40 14-93 (446)
  • Page 19 12 13 14 15 16 Switch Box Assembly 541 40 40-16 Item Number Part Number Item Number Part Number 541 40 10-37 (223) 541 40 22-70 (C231) 541 20 19-07 (248) 541 40 14-44 (474) 541 40 16-08 (30622) 541 40 14-46 (473) 541 40 14-38 (473) 541 40 37-94 (C139) 541 40 10-35 (225)
  • Page 20 Switch Box Assembly 541 40 40-16 Item Number Description Receptacle 20A Single Ammeter 0-30 Amp Switch Panel Receptacle 15 Amp Plug, 20 Amp 125 Volt Switch Strain Relief White Green Black Switch Box Wiring Schematic...
  • Page 21 Angle Bracket Assembly Item Number Part Number 541 40 00-62 541 40 05-40 (106) 541 40 35-92 (C497) 541 40 35-93 (C498) 541 40 37-35 (C70) 541 40 37-34 (C71) 541 40 35-94 (C499) 541 40 16-94 (752051) 541 40 37-77 (C273) 541 40 37-98 (C10) 541 40 35-91 (C442) 541 40 37-34 (C71)
  • Page 22 Angle Bracket 541 40 00-64 (188)
  • Page 23 OPTIONAL ROLLER CARRIAGE GENERAL INSTRUCTIONS This instruction manual describes the assembly, operation, maintenance and safety precautions for proper use of the drill carriage. This equipment is intended for industrial applications by experienced operators. IMPROPER USE OF THIS EQUIPMENT OR IMPROPER MACHINE ALTERATIONS MAY BE EXTREMELY DANGEROUS.
  • Page 24 BEFORE STARTING DRILL MOTOR, MAKE SURE DRILL STAND IS SECURELY ATTACHED TO SURFACE TO BE DRILLED. MAINTENANCE Clean the drill carriage after each use. All rollers utilize oil impregnated bronze bearings, no lubrication is required. Check carriage play on the column and adjust the rollers if required. See roller adjustment (Page 24) for instructions.
  • Page 25 Roller w/bearings Roller w/bearings 5HU/D 10 11 1HU/D 2HU/D Roller w/bearings 40 41 42 4HU/D Lock Screw 3HU/D 37 36 35 Optional Roller Carriage Assembly 541 40 15-07 Item Number Part Number Item Number Part Number Item Number Part Number 541 40 15-35 (258) 541 40 37-60 (C385) 541 40 37-82 (C253)
  • Page 26 ROLLER CARRIAGE ADJUSTMENT (D=0.002) RECOMMENDED CLEARANCE 0.002 to 0.004 “A” TIGHTEN SIDE ROLLER SET SCREWS (Tighten evenly) “A” Indicator marks shows direction of eccentricity of the roller adjuster ADJUST FOR “D” TO TIGHTEN (Adjust both sides together) LOOSEN SETSCREW TIGHTEN (Perform adjustment procedure with clean carriage and column)
  • Page 27 (2) years from date of purchase by the original consumer purchaser with the following exception: Target DR 150 Core Drills Three (3) months Felker FRS-30 One (1) year...
  • Page 28 Target Corporate Office 17400 West 119th Street Olathe, Kansas 66061 Customer Service: 800-288-5040 Customer Serv. Fax: 800-825-0028 Corporate Office: 913-928-1000 Corp. Office Fax: 913-438-7951 Target California Customer Service: 310-381-3100 Customer Serv. Fax: 310-381-3194 Target Canada Customer Service: 800-461-9589 Customer Serv. Fax: 800-728-1907...
