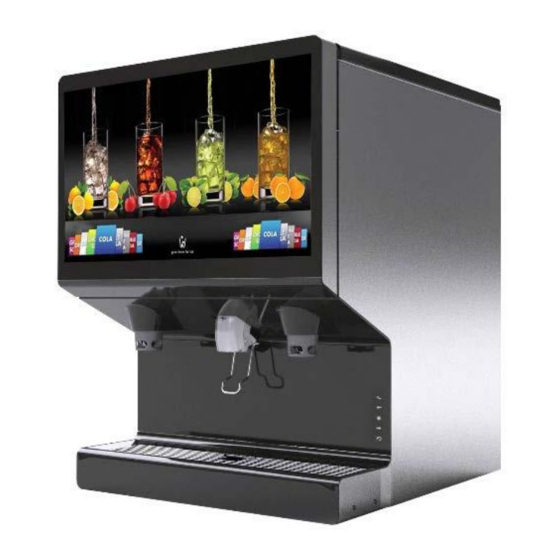

McDonald's Cornelius Refresh PRO 255 Quick Start Manual

Soft-drink and ice dispenser

Hide thumbs

BEVERAGE EQUIPMENT

Cornelius

Soft-drink and Ice Dispenser

Model Refresh PRO 255

Daily maintenance tasks

BE 86 D1

Clean soft-drink

and ice dispenser

BE 86 D2

Clean and sanitize

beverage diffusers

and nozzles

Monthly maintenance tasks

BE 86 M1

Clean and sanitize

ice dispenser

Model: Refresh PRO 255

Hazards

These icons alert you to a possible risk of personal injury.

Equipment alerts

Look for this icon to find information about how to avoid damaging the

equipment while doing a procedure.

Tips

Look for this icon to find helpful tips about how to do a procedure.

BE 86

Table of Contents

Need help?

Do you have a question about the Cornelius Refresh PRO 255 and is the answer not in the manual?

Questions and answers

Summary of Contents for McDonald's Cornelius Refresh PRO 255

Page 1 BEVERAGE EQUIPMENT BE 86 Cornelius Soft-drink and Ice Dispenser Model Refresh PRO 255 Daily maintenance tasks Model: Refresh PRO 255 BE 86 D1 Clean soft-drink and ice dispenser BE 86 D2 Clean and sanitize beverage diffusers and nozzles Monthly maintenance tasks BE 86 M1 Clean and sanitize ice dispenser...
Page 2 Clean soft-drink and ice dispenser Daily BE 86 D1 To break the bacteria cycle and keep the beverage diffusers clean. Time required 5 minutes to prepare 15 minutes to complete Time of day At close. For 24-hour restaurants: during low-volume periods at night Hazard icons Tools and supplies...
Page 3 (continued) Clean the touch screen Apply stainless steel cleaner. Apply specialty cleaner and Display the Service screen by polish to all stainless steel tapping each corner of the surfaces on the outside of the screen, starting in the upper machine. Wipe the surfaces RH corner, continuing in a dry with a clean paper towel.
Page 4 Clean and sanitize beverage valve diffusers Daily BE 86 D2 and nozzles. To break the bacteria cycle and keep the beverage diffusers clean. Time required 5 minutes to prepare 15 minutes to complete Time of day At close. For 24-hour restaurants: during low-volume periods at night Hazard icons Tools and supplies...
Page 5 Clean and sanitize beverage valve diffusers and nozzles (continued) Install the gasket in the diffuser. Install the gasket into the diffuser. Line up the locating notches on inner circle of both the gasket and the diffuser. Push the silicone gasket into the diffuser until it sits flat.
Page 6 Clean and sanitize ice dispenser Monthly BE 86 M1 To break the bacteria cycle. Time required 45 minutes to prepare 45 minutes to complete Time of day After close. For 24-hour restaurants: during low-volume periods at night Hazard icons Electricity Slippery Floors Tools and supplies Brush, nylon-...
Page 7 (continued) Remove the agitator retainer Clean ice chute and ice agitator assembly. Open the touch screen door. Turn the agitator retainer to Remove the outer ice chute the left and remove the assembly by spreading both tabs at the bottom of the retainer.
Page 8 (continued) Turn the ice maker switch on. Turn the dispenser unit key switch, located on the right side panel, to the “On” position. Allow the ice maker to operate for about a half hour to allow the hopper to fill. Plug in the dispenser Plug in the power cord to the outlet below the unit.
