Safety Information.............................................................................3
Specifications....................................................................................4
Main Power Connection....................................................................5
Control...............................................................................................5
Rigging the fixture..............................................................................6
Cleaning & Maintenance....................................................................6
Parts List............................................................................................6
Warranty Agreement..........................................................................7
USER MANUAL
Advertisement
Table of Contents
Summary of Contents for MegaLite Drama WL3200

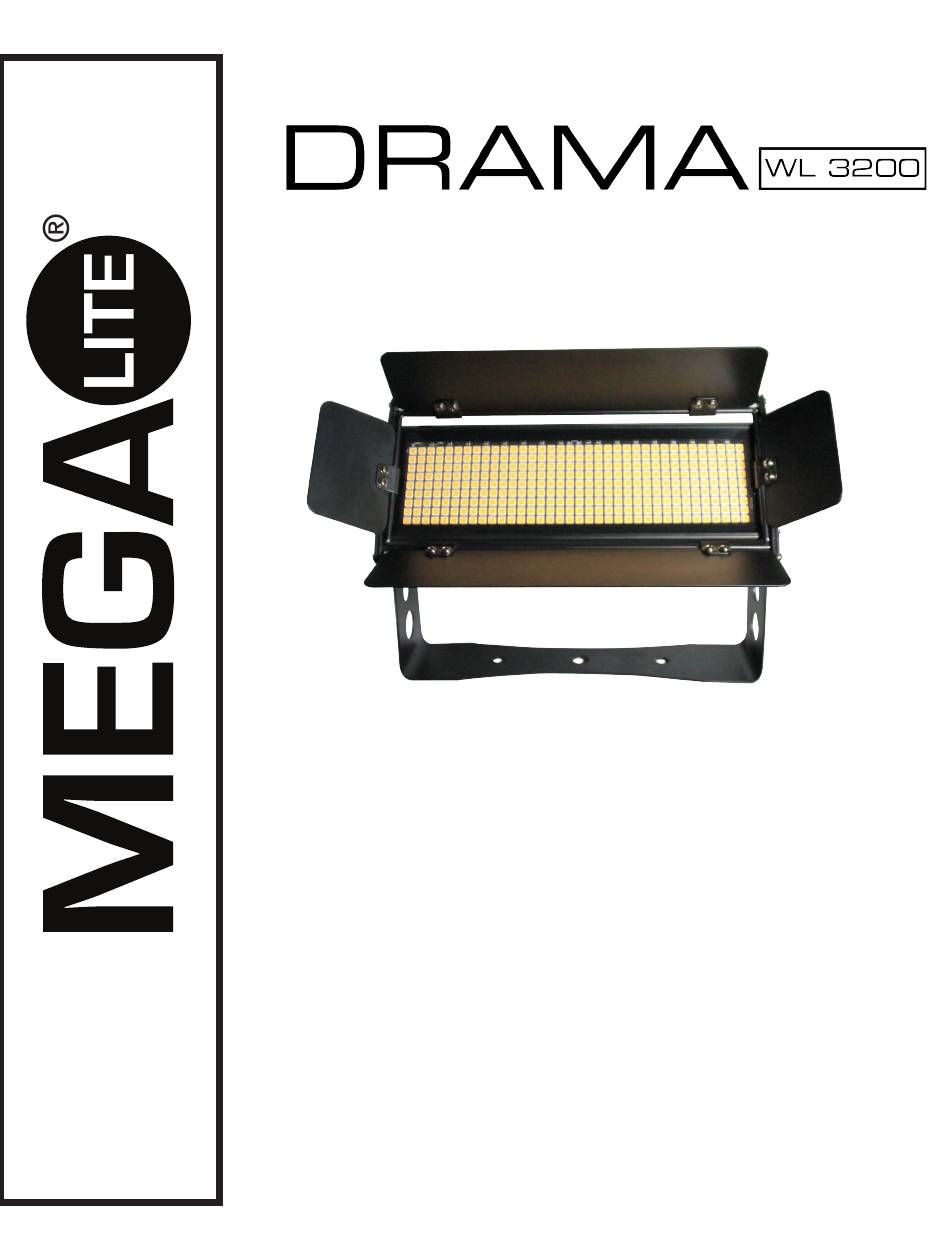

- Page 1 Table of Contents Safety Information................3 Specifications..................4 Main Power Connection..............5 Control....................5 Rigging the fixture................6 Cleaning & Maintenance..............6 Parts List....................6 Warranty Agreement................7 USER MANUAL...
- Page 2 Check that the unit has not been damaged during transport Read all cautions and warnings prior to operation of this equipment Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 2. Replace fuse only with the specified type and rating. 3.
- Page 3 Technical Information Part Numbers Fixture 7066-Drama WL3200 Mechanical Specifications Power Connections: Power Con type in & out Thermal: Maximum ambient temperature 100°F Maximum surface temperature 130° F Fastening System: Single Mounting Yoke Lens Angle: 105° Barn Doors: Included Electrical Specifications LED Quantity: 324 White SMD LEDS LED Watts: .30...
- Page 4 Main Power Connection Caution! 1. Do not connect fixture to a dimmer system. 2. This unit has Auto switching power supply. It will respond to 100V or 220V automatically. 3. This unit must be earthed. (electronically grounded) 4. Replace fuse only with the specified type and rating. 5.
- Page 5 Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24 inches away from flammable materials. (Decoration material) 4.
- Page 6 Warranty Information ENERAL TERMS AND CONDITIONS All resellers must have approved and signed Reseller Application on file including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. Cash, check, cashiers check, ACH, wire transfer, MasterCard, Visa , Discover and American Express are accepted forms of payment.
- Page 7 Customer Support Mega Lite has a customer support line to provide set up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issue please contact our service department. Monday—Friday 9am to 6pm CST Telephone: 210-684-2600 E-mail: service@mega.lighting...
