Summary of Contents for gfm PeakStore5

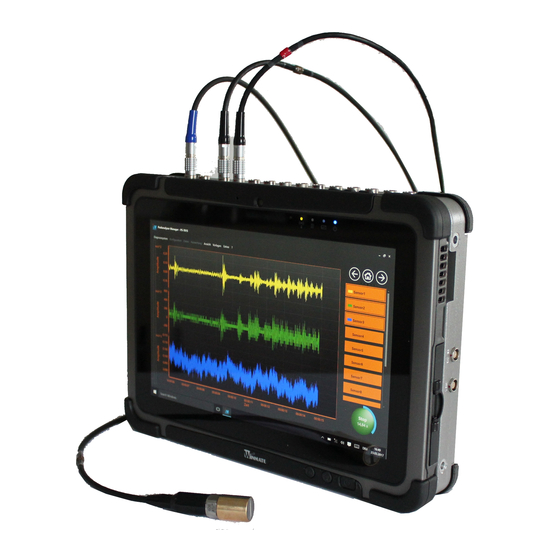

- Page 1 PeakStore5 Manual Version 3.0 www.maschinendiagnose.de...
- Page 3 PeakStore5 Manual Version 3.0 GfM Gesellschaft für Maschinendiagnose mbH Berlin, 23th August 2019 Management: HRB 79023, VATIN. DE813267294, Internet: www.maschinendiagnose.com, Contact: mailbox@maschinendiagnose.com Dr.-Ing. Rainer Wirth Place of Company: Koepenicker Strasse 325, 12555 Berlin, Phone +49 / 30 / 65 76 25 65, Fax +49 / 30 / 65 76 25 64 Dipl.-Ing.
-
Page 4: Table Of Contents
Vibration Measurement ..................... 20 6.2.1. Sensor Overview ....................... 20 6.2.2. Measurement protocol ....................21 6.2.3. Time Signals ......................23 6.2.4. Spectra ........................23 6.2.5. Characteristic Values ....................24 6.3. Balancing ........................25 6.3.1. Preparation ....................... 26 PeakStore5 Manual Version 3.0... - Page 5 6.3.2. Origin Measurement....................27 6.3.3. Test Measurement ....................27 6.3.4. Validation Measurement ................... 27 6.3.5. Finalization ........................ 28 6.4. Data Management ....................29 Remote Control ......................32 PeakStore5 Manual Version 3.0...
-
Page 6: General
If applied correctly it is not expected to have affects according to device safety or EMV. This conformity declaration applies only the systems supplied by GfM. Changes or extensions are in the respon- sibility of the operator and thus has to ensure the conformity with the corresponding EG-Directive. -
Page 7: Notes To Radio Interference Suppression
1.2. Notes to radio interference suppression The PeakStore5 fulfills the EMV-policy for unlimited usage in living area and industrial area in a regular installed state. All additional products that are connected to the device must be also suppressed by radio interference according to BMPT-Vfg. -
Page 8: Changes
1.10. Protected Earth, Shield, Power Supply The PeakStore5 has to be connected to protected earth to fulfill the thresholds for devices of class B according to part 15 of the FCC-Guidelines. The same counts as a requirement for the specified technical data. -
Page 9: Accumulator And Battery
PeakStore5. Afterwards the accumulator can be removed. 1. Switch off PeakStore5 and unplug all cables. 2. Turn PeakStore5 and remove the four screws on the back of the measurement device. 3. Remove the accumulator by switching the two locks (see Picture 1). -
Page 10: Delivery Components
If the PeakStore5 is in Standby mode, the settling process is first started. The actual measurement will start immediately after the settling process is finished. -
Page 11: Connections
The accelerometers are connected to the connectors labeled with 1 to 12 on the upper side of the PeakStore5. The accelerometers are directly supplied by the PeakStore5. If sensors are connected that require an additional power supply, e.g. displacement sensors, the additional power supply has to be connected to the DC IN connector on the right side (see 4.3). -
Page 12: Speed Inputs
LED on the sensor if the PeakStore5 is switched on. The correct speed measurement can be verified in the sensor overview of the PeakStore5 or via the remote control. The display can variate slightly. If there are heavy variations, the orientation of the speed sensor should be checked and the measurement should be repeated. -
Page 13: Usb Connection
The connection between the PeakStore5 and the tablet is done via a 5-pole spring contact on the hidden front side of the PeakStore5 to the expansion port of the tablet on the back. The USB connection of the expansion port is also used for the power supply of the measurement component of the PeakStore5. -
Page 14: Connections At The Tablet
Peakanalyzer Manager. This function is available via the button “Deactivate PeakStore” in the sensor overview or via the function key Fn2 on the upper side of the PeakStore5. In this case only the input channels are deactivated and the main interface is still supplied with power. - Page 15 Home key of the tablet must be pressed. In the menu on the right side the Device button must be touched to open the optional tablet modules. In this menu the external COM port can be deactivated and also activated. Picture 11: tablet module configuration PeakStore5 Manual Version 3.0...
-
Page 16: Software Usage
If this option is activated, it is also shown in the license manager in the Peakanalyzer Manager. The coupling of the PeakStore5 to the tablet is done via the expansion port in the standard delivery. This expansion port is activated automatically during the boot process of the tablet but can also be activated manually via the tablet module configuration. -
Page 17: General
The date of the calibration data. Also, a new calibration file can be loaded in this section. • The amount of available measurements with the current channel settings. If the measure- ment time is set to undefined on the vibration channel site, the maximum storage time is shown. PeakStore5 Manual Version 3.0... -
Page 18: Speed Channels
The trigger threshold of the speed channel can be adopted if necessary. The speed sensors that are delivered by GfM Gesellschaft für Maschinendiagnose mbH work ideal with the standard value of 5 V. -
Page 19: Vibration Channels
Coupling: The coupling can be chosen for each channel individually from IEPE, AC or DC. If the configuration type balancing was chosen, a balancing layer must be assigned to each sensor. Furthermore, the sampling frequency is fixed to 51.2 kHz for all sensors. PeakStore5 Manual Version 3.0... -
Page 20: Characteristic Values
DIN ISO 10816-21 with bandwidth 10 Hz – 5 kHz For each characteristic value a warning and an alarm threshold can be configured. It is than possible to monitor warn and alarm threshold exceeding in the measurement overview. PeakStore5 Manual Version 3.0... -
Page 21: Measurement Protocol Template
"Activate automatic sensor placement" must be set. The desired position has to be clicked to place the sensor. If an already placed sensor is clicked again, a popup will open to change the measurement position and direction. PeakStore5 Manual Version 3.0... -
Page 22: Vibration Measurement
If the PeakStore5 is active, the PeakStore5 can be deactivated via the same button or the function key Fn2 on the top of the PeakStore5. If activated, the PeakStore5 is in a monitoring mode where the current characteristic values and the current speed can be viewed. -
Page 23: Measurement Protocol
PeakStore5. Additionally, there are infor- mation of the current measurement start time and the current measurement number. Also the available free measurements that depend on the free disk space is shown. - Page 24 Additionally, there are functionalities to revert the last operation, erase parts of the picture or delete the complete picture. Miscellaneous • An arbitrary text that can contain additional information of the measurement PeakStore5 Manual Version 3.0...
-
Page 25: Time Signals
The curve window is frequently updated to show the latest data during the measurement. If the measure- ment is finished, the curve window can be zoomed freely to show certain parts in detail. 6.2.4. Spectra PeakStore5 Manual Version 3.0... -
Page 26: Characteristic Values
This allows an easier comparison of the characteristic values. This behaviour can be changed in the options under Extras → Options → PeakStore → Characteristic Values. Furthermore, the colouring of the sensor name can be changed to show different characteristic value types in different colours. PeakStore5 Manual Version 3.0... -
Page 27: Balancing
The main results of the balancing process are aggregated in a polar view and can be shown at any time of the measurement. Picture 22: Polar view of two-layer balancing A protocol of the whole balancing process is shown and saved after the balancing process is finished. PeakStore5 Manual Version 3.0... -
Page 28: Preparation
• Balancing target: The imbalance of the machine can be determined via the measured vi- bration acceleration or via the inferred vibration velocity. PeakStore5 Manual Version 3.0... -
Page 29: Origin Measurement
Picture 25 shows an exemplary calculation of required balancing masses to reduce the initial imbalance. If it is not possible to apply the exact masses to the locations, the actually applied masses can be entered. PeakStore5 Manual Version 3.0... -
Page 30: Finalization
The protocol of the balancing process will directly be shown in an internal pdf viewer (see Picture 26). The measurement data and protocol are also available in the data management section afterwards. Picture 26: Balancing report PeakStore5 Manual Version 3.0... -
Page 31: Data Management
Data Management Picture 27: Measurement data in the data management The data management handles all recorded measurement data of the PeakStore5. All meas- urement data are structured in the left tree view. The button View above the measurement listing allows to change the structuring of the measurement data listing. The following options are available: •... - Page 32 The meas- urement data will be exported to the GfM internal raw data format by default. Alternatively, the data can be exported to WAV or ASCII format.
- Page 33 On the left side of the Diagnostic Tool the measurement data that were selected in the PeakStore5 data management are shown. Each measurement can be preprocessed individu- ally. Afterwards the order, envelope order, frequency and envelope frequency spectra as well as the characteristic values are calculated for each measurement.
-
Page 34: Remote Control
If the WLAN connection is established on both sides, the PeakStore Remote App can be started and a broadcast search for the PeakStore5 can be done. If the PeakStore5 is not au- tomatically found, the PeakStore5 can be added manually. Therefore the IP address of the WLAN connection of the tablet, that is shown in the sensor overview if configured, must be entered in the App. - Page 35 App. These can be photos of type designations, photos of the machine or sensor positioning. The taken photos are directly transmitted to the PeakStore5 and are saved in the current meas- urement after confirmation. An arbitrary free description and a category (machine picture, gen- erator picture, gear box picture or other) can be added for each picture.
- Page 37 GfM Gesellschaft für Maschinendiagnose mbH Koepenicker Strasse 325 12555 Berlin Deutschland – Germany Phone Berlin +49 / 30 / 65 76 25 65 Phone Dortmund +49 / 231 / 77 64 723 www.maschinendiagnose.de Q0188e...
