Summary of Contents for EPAK DivKit VSAT Ri Series

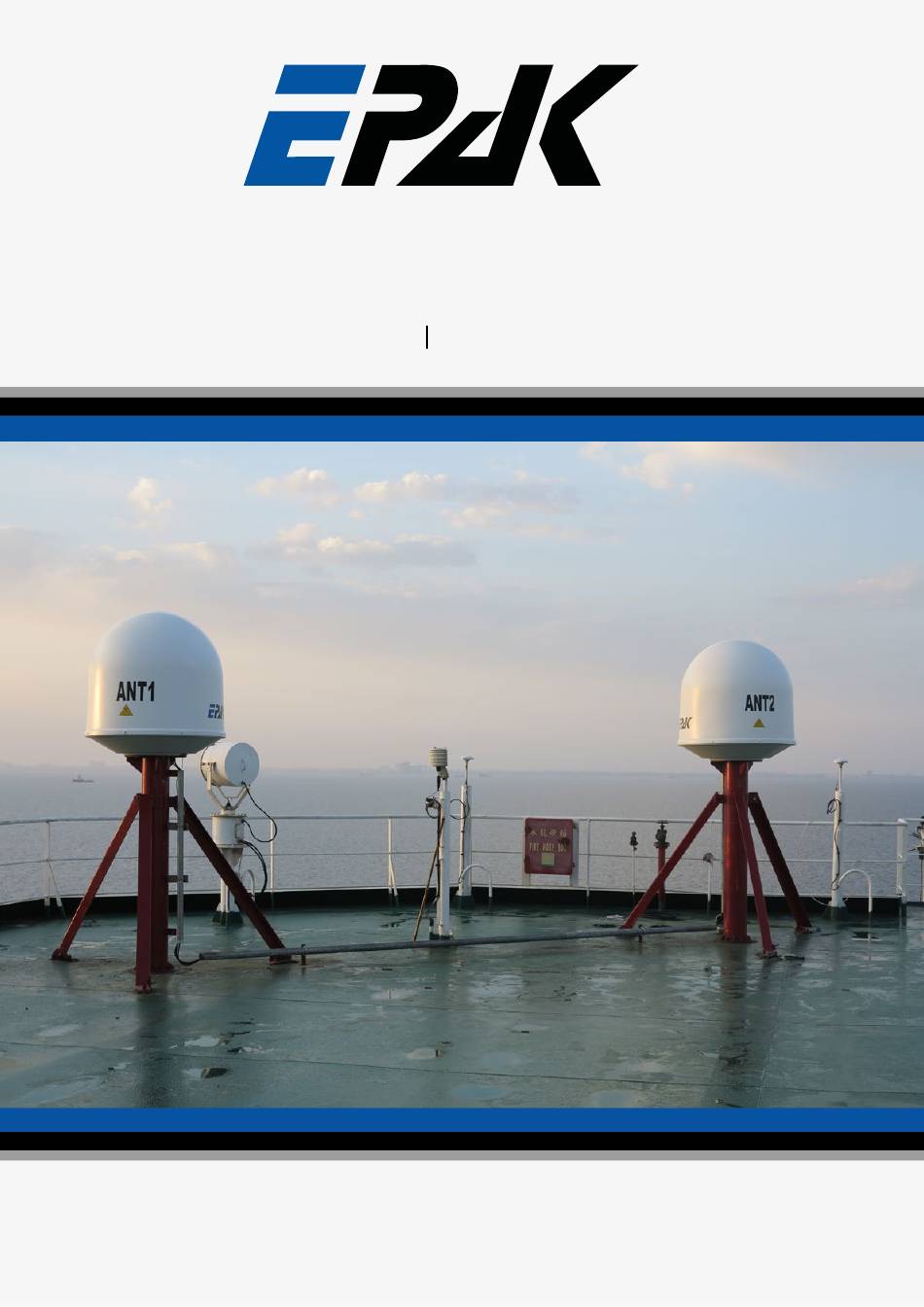

- Page 1 ® Marine Satellite Systems and Services DivKit VSAT Ri-Series DSi-Series 29.03.19 ID: 0123...
-
Page 2: Table Of Contents
Description of the operating elements on front plane ..............5 Description of the of the connectors on the back plane ..................6 Cabling the EPAK VSAT DivKit - regular scheme The integrated matching system - attenuating and amplifying ..........7 ......................7 4.4.1 The importance of matching ........................9... -
Page 3: What Is A Diversity Kit
The EPAK Diversity Kit is combining the free line of sight ranges of 2 antennas: once one antenna is blocked in sight, the other antenna seamlessly takes over the satellite connection. This requires a high performance switching device, that can split and reroute RF signals nearly immediately. -
Page 4: Using The Vsat Divkit
Using the VSAT DivKit The VSAT DivKit comes in a robust 19" rack case, ideal for combining it with the EPAK ACUs in one rack. The holes for fixing it with screws in the rack, are on the far left and the far right side when you look from the front. -
Page 5: Description Of The Of The Connectors On The Back Plane
Description of the of the connectors on the back plane. Fig. 2: EPAK VSAT-DivKit - back panel view. Explanation Name Description RJ45(1) Ethernet port 1, recommended for ship's LAN RJ45(2) Ethernet port 2, recommended to be spare RJ45(3) Ethernet port 3, recommended to connect to WAN port of the master ACU... -
Page 6: Cabling The Epak Vsat Divkit - Regular Scheme
Cabling the EPAK VSAT DivKit - regular scheme Traffic Modem Slave Master antenna antenna LAN 1 LAN 1 LAN 2 LAN 2 Spare Ethernet ports 24 VDC Power Diversity Kit Supply Unit Switch Unit Connectors: Colours: F-type TNC male Vessel's... -
Page 7: The Integrated Matching System - Attenuating And Amplifying
Antenna 2 Antenna 1 RX power: -20dBm RX power: -30dBm ACU 2 ACU 1 EPAK DIVERSITY KIT No matching at power regulators arrriving power level: Modem -20dBm for RX2 -30dBm for Rx1 Fig. 4: Example for the mismatching power levels of RX at the inputs of the modem. - Page 8 Cable loss: 5dB Cable loss: 10dB ACU 2 ACU 1 EPAK DIVERSITY KIT Modem TX power: -10dBm Fig. 5: Example for mismatching power levels of TX at the output of the modem. Explanation: Fig. 5 shows different TX power levels arriving the transceiver.
-
Page 9: The Attenuator-Regulators
4.4.2 The attenuator-regulators For matching the different power levels of both antennas, four pieces of 16 step rotary switches are located at the front panel of the VSAT DivKit. This is often necessary for matching the signal power of both antennas to avoid lockouts or signal loss like de- scribed above. -
Page 10: The Integrated Ethernet Switch
Rotary Switch Suppression/ in HEX num Amplifying in dB amplifying amplifying amplifying amplifying amplifying amplifying amplifying amplifying attenuation attenuation attenuation attenuation attenuation attenuation attenuation Tab. 3: Adjustable power levels The integrated Ethernet Switch For providing necessary network connections, the DivKit has an integrated network switch. The DivKit itself is connected to it too, inside.
