Attention:
Please read these installation,
operating instructions and safety
information carefully before
installing and putting the unit into
service.
These must always be handed to
the owner/user.
Installation and
operating instructions
OWA
Mycare
Point-of-use water filter
Language: English
Valid for: China

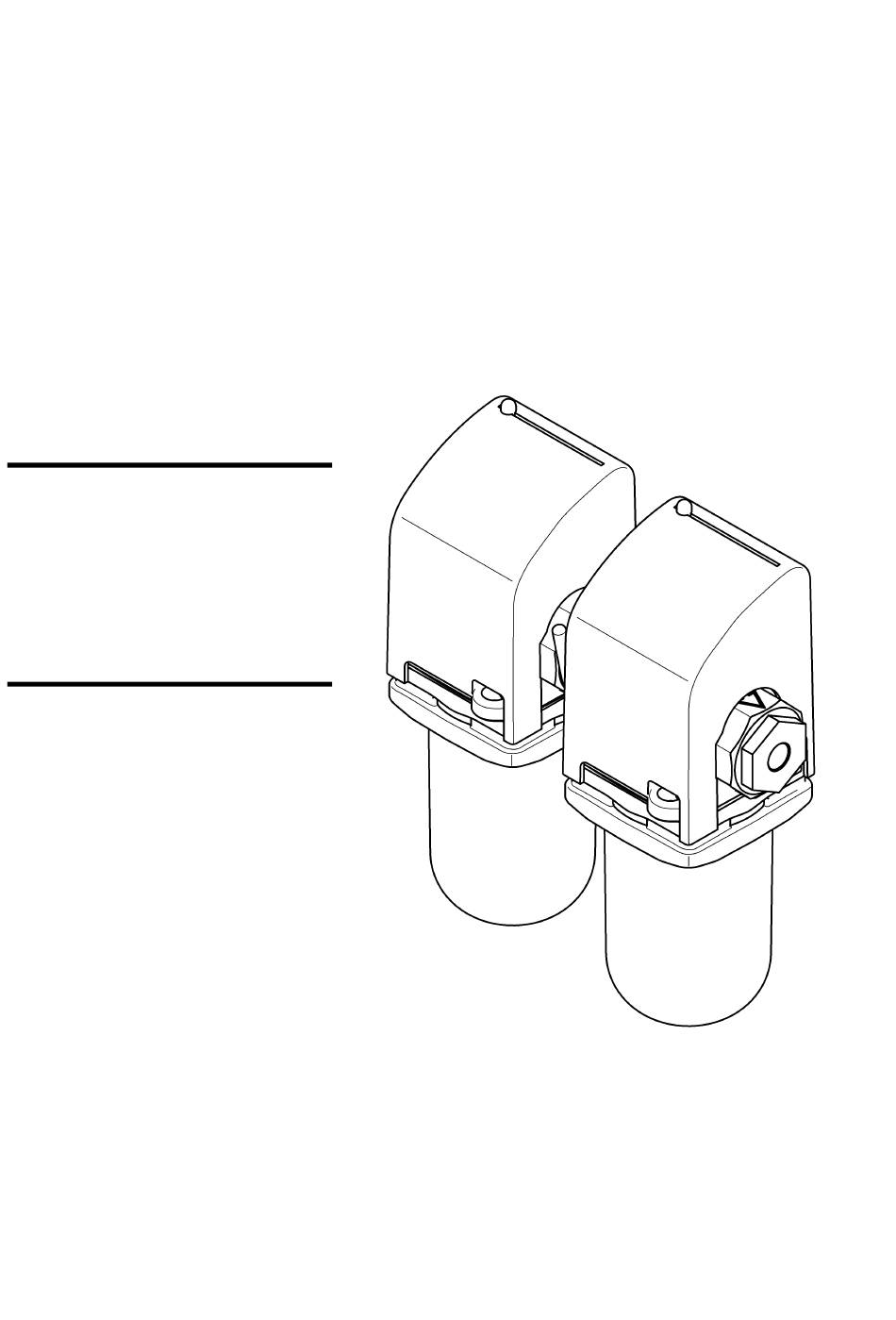

Fig.: Mycare MP 50
MP50
Advertisement
Table of Contents
Summary of Contents for OWA Mycare MP50
- Page 1 Installation and operating instructions Mycare MP50 Point-of-use water filter Language: English Valid for: China Attention: Please read these installation, operating instructions and safety information carefully before installing and putting the unit into service. These must always be handed to the owner/user. Fig.: Mycare MP 50...
- Page 2 (see back page). Trademarks: Trademarks used in this document are protected and registered trademarks of the respective holder. © OWA GmbH D-73708 Esslingen All rights reserved. Reprints – even of extracts – are only permitted with special written approval. Mycare MP 50...
- Page 3 Before you begin: – Inspect carton and product carefully and thoroughly for defects or shipping damage. – Use this product in accordance with all the respective local regulations, codes and safety practices. – Do not install this product in applica- tions were the ambient temperature is below 5 °C (41 °F).
-
Page 4: Table Of Contents
About this instruction manual About this instruction Table of contents manual 1. About this instruction manual..4 1.1 Symbols used......... 5 1.2 Safety indications and dangers due ATTENTION to non-compliance......5 (see chapter “Safety indications 1.3 Units used ........5 dangers due to non-compliance”) 2. -
Page 5: Symbols Used
About this instruction manual In addition to the general safety notes Safety indications and dangers due to non-compliance outlined in the chapter “Intended use”, please reference the special safety notes Non-compliance with the general danger which have been outlined in all the chap- symbols given in this manual may result in ters provided in this manual. -
Page 6: Intended Use
Intended use Intended use The Mycare water filter may be used only as described in these operating instruc- tions, any further application is to be The water to be filtered must be of deemed non-compliant with the safety drinking water quality! requirements indicated herein which may Do not use with water that is microbio- result in a higher hazard risk to persons and... -
Page 7: Water Pressure
Intended use Water pressure Information on hazard risks The water pressure has to be between 103 kPa (15 psi) and 345 kPa (50 psi). 2.2.1 Electrical equipment / installations The water pressure must not fall below 103 kPa (15 psi) as otherwise the operation Electrical devices / equipment that are not can be impaired! splash-water proof and are situated in the... -
Page 8: Product Description
Product description Product description The Mycare water filter is intended to be installed in the direct vicinity (as close as possible) to the point of use (see Intended purpose fig. 4). This Mycare water filter is suitable for ATTENTION the use in cold drinking water supply, up to a water temperature of maximum 30 °C The water supply is to be turned off / shut off (86 °F). - Page 9 Installation 4.1.1 Requirements: point of use 4.1.2 Wall-mounted installation The room where the unit is installed must There has to be enough space for the wall- be dry and frost free! mounted installation (see chapter “Installa- tion dimensions”). Use the enclosed specifi- Unauthorized persons must not have cation sheet with bracket dimensions as a access to the Mycare water filter!
-
Page 10: Installation And Initial Putting Into Service Of The Point-Of-Use Water Filter
Installation Installation and initial putting Particles of activated carbon may into service of the point-of-use become dislodged from the car- water filter tridge during flushing. This has no bearing on the filter 1 First install the enclosed micro-filtration function and only underlines the cartridge into Mycare... - Page 11 Installation water filter shut-off valve cold water shut-off valve tubing Shut-off valves and tubing wall-mounting tubing by others brackets water filter Fig. 8: Installation Mycare MP 50...
-
Page 12: Service
Service Service – is easy to install. – is easy to change out cartridges. – is easy to use. ATTENTION (see chapter “Safety indications and dan- gers due to non-compliance”) Always observe the chapter “Units used”! Commissioning Before starting up (initial putting into service or start-up after cartridge change or mainte- nance work ) the Mycare... -
Page 13: Shut Down
Service Shut down provided. IMPORTANT: Do not touch any plastic ATTENTION parts, especially the inside of the filter housing, or the cartridge, with your bare (see chapter “Safety indications and dan- hands. gers due to non-compliance”) 10 Insert the new replacement cartridge in Please consult the chapter “Units used”... - Page 14 Service filter-change indicator flange cover Allen key SW 5 bleed screw built-in rotary flange used cartridge (micro-filtration) replacement cartridge (micro-filtration) used cartridge (activated carbon) profiled flange seal bolt head screw filter housing complete Fig. 11: Replacing the cartridges Mycare MP 50...
-
Page 15: Trouble Shooting Chart
Trouble shooting chart Trouble shooting chart Error Cause Remedy Water has an The Mycare For hygienic reasons let the water run for unpleasant water filter has been approximately 10 minutes. If the condition does smell or is disc- un-used for too long not improve, the cartridge must be replaced. -
Page 16: Maintenance
Maintenance Maintenance ATTENTION (see chapter “Safety indications and dan- gers due to non-compliance”) Always observe the chapter “Units used”! Cleaning ATTENTION (see chapter “Safety indications and dan- gers due to non-compliance”) Only use clear, clean drinking water to clean the housing! Domestic all-purpose cleaners and glass cleaners can contain up to 25 % solvents or alcohol (spiritus) which may damage the... -
Page 17: Data Sheet
Data sheet Data sheet (0.53 US gpm) Total capacity per filter 2000 l Type cartridge (528 US gal) Mycare water filter 2000 l (528 US gal) Model MP 50 Effective filter value 0.2 micron (0.0002 mm) Technical data 1) depend on water quality Water temperature 1 - 30 °C (34 - 86 °F) -
Page 18: Spare Parts Mp 50
Spare parts MP 50 10. Spare parts MP 50 Mycare MP 50... - Page 19 Spare parts MP 50 Spare parts list MP 50 Designation Item (Recommended average replacement interval for Piece(s) Order no. wearing parts) Spare parts set “Reducer” ¾" AG - ¼" IG 2110040 Spare parts set “Filter hood” (consisting of pos. 5, 6, 7, 8) 2110102 Spare parts set “Wall-mounting bracket”...
-
Page 20: Customer Service
Customer service Customer service OWA GmbH Postfach/P.O. Box 100831 Made in Germany by OWA www.owa-world.com D-73708 Esslingen Germany Telephone : +49(0)711 388 07 86 +49(0)711 388 02 85 e-mail: info@owa-world.com www.owa-world.com Installed by: All illustrations, dimensions and information for the different models are those valid on the date of prin- ting.
