L
EOS Flood
UX
LED LUMINAIRES FOR ARCHITECTURAL LIGHTING
Warning
• LuxEOS luminaires must be installed by a qualified electrician.
• Installation must be carried out in accordance with local and/or national
electrical installation codes of practice.
• Isolate the mains supply to the driver during installation and whenever subsequently
disconnecting or reconnecting the fitting to avoid electric shock.
MAINS & DATA CONNECTIONS
Typical Connections (Luxeos 9 shown)
LuxCONNECT IP66 Hardwired connection boxes with separate Power & DMX wiring & QuickLINK+ luminaire connections
QuickLINK+ Cable
Power In
DMX In
LuxCONNECT IP66 Hardwired connection boxes with combined Power & DMX wiring & QuickLINK+ luminaire connections
QuickLINK+ Cable
Power & Data In
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com sales@pulsarlight.com +44 (0) 1223 403 500
INSTALLATION
9 - 18 - 36 -
QuickLINK+ Cable
QuickLINK+ Cable
- Link -
- Link -
QuickLINK+ Cable
QuickLINK+ Cable
- Link -
- Link -
Beam
20 - 40 - 80
• Use the correct polarity when wiring, if in any doubt please contact Pulsar.
• Pulsar luminaires are designed for lighting applications and must not be used
for any other purpose.
• Unless authorised by Pulsar, field repairs of the luminaire will void the warranty.
QuickLINK+ Cable
- Link -
QuickLINK+ Cable
- Link -
QuickLINK+ Cable
- Link -
QuickLINK+ Cable
- Link -
7650-INST-ALL
1 of 12
Advertisement
Subscribe to Our Youtube Channel

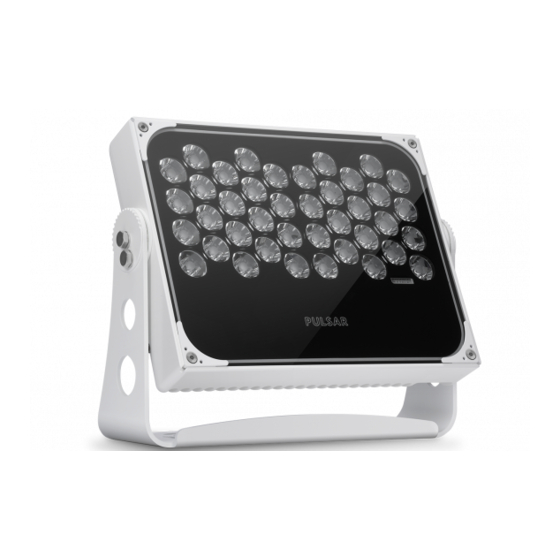

Summary of Contents for Pulsar LUXEOS Flood 9
- Page 1 Warning • LuxEOS luminaires must be installed by a qualified electrician. • Use the correct polarity when wiring, if in any doubt please contact Pulsar. • Installation must be carried out in accordance with local and/or national • Pulsar luminaires are designed for lighting applications and must not be used electrical installation codes of practice.
-
Page 2: Wiring Details
INSTALLATION EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING WIRING DETAILS LuxCONNECT IP66 Hardwired connection enclosure with combined Power & DMX input & QuickLINK+ luminaire connection SUPPLY IN / THRU 240VAC 20A MAX LIVE EARTH NEUTRAL... - Page 3 INSTALLATION EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING CONTROL LuxEOS luminaires support DMX512, DMX512:1990, (R2013), ANSI E1.20 – 2010 (DMX with RDM V1.0) All DMX512 protocols are supported including E1.11 DMX with RDM. Other protocols may be supported with future software releases or hardware add-ons.
- Page 4 • Refit the front glass ensuring that the rubber seal is still located into the groove • Replace and refit the corner bracket and retighten the screws (B) evenly in sequence. HBS Sheet LuxEOS Flood 9 Shown P U L S A R 7650-INST-ALL 1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP www.pulsarlight.com sales@pulsarlight.com +44 (0) 1223 403 500...
- Page 5 INSTALLATION EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING OPTICAL CONTROL - SNOOTS & LOUVRES Attachments for Glare 3 Attachments are available to reduce light glare from LuxEOS luminaires, these being a 50mm Snoot, Half Snoot and Louvre. Each attachments is fitted with the supplied M4 fixing screws as shown below.
- Page 6 EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING MECHANICAL DETAILS - LuxEOS Flood 9 & Beam 20 (All dimensions in mm) Front view Side view Rear view Top view Weights LuxEOS Flood 9 - 7.2 kgs...
- Page 7 INSTALLATION EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING MECHANICAL DETAILS - LuxEOS Flood 18 & Beam 40 (All dimensions in mm) Front view Side view Rear view Top view Weights LuxEOS Flood 18- 12 kgs LuxEOS Beam 40 - 12.2 kgs...
- Page 8 INSTALLATION EOS Flood Beam 9 - 18 - 36 - 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING MECHANICAL DETAILS LuxEOS Flood 36 & Beam 80 (All dimensions in mm) Front view Side view Rear view Top view Weights LuxEOS Flood 36 - 23 kgs LuxEOS Beam 80 - 23.4 kgs...
- Page 9 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING MECHANICAL DETAILS - YOKE BRACKETS LuxEOS Flood 9 & Beam 20 Yoke Bracket LuxEOS Flood 18 & Beam 40 Yoke Bracket LuxEOS Flood 36 & Beam 80 Yoke Bracket Hole details...
- Page 10 Two optional mounting brackets are available, one to fit the LuxEOS 9 & Beam 20, LuxEOS 18 & Beam 40, and one to fit the LuxEOS 36 and Beam 80 LuxEOS Flood 9 fitted with Mounting Plate LuxEOS Flood 18 with Mounting Plate...
- Page 11 20 - 40 - 80 LED LUMINAIRES FOR ARCHITECTURAL LIGHTING MECHANICAL DETAILS - OPTIONAL MOUNTING PLATES LuxEOS Flood 9 & 18, Beam 20 & 40 Mounting Plate Hole details (A) - Clearance for M12 fixings (B) - Clearance for M10 fixings (C) - M10 Studs for Standard Yoke LuxEOS Flood 36 &...
-
Page 12: Additional Information
Pulsar’s maximum liability shall not exceed the price paid for the product. In the unlikely event of a fault occurring, do not use without repair, return the product, with a description of the fault, to your supplier or direct to Pulsar for immediate attention.
