AIMS Power PV130CASE Instructions

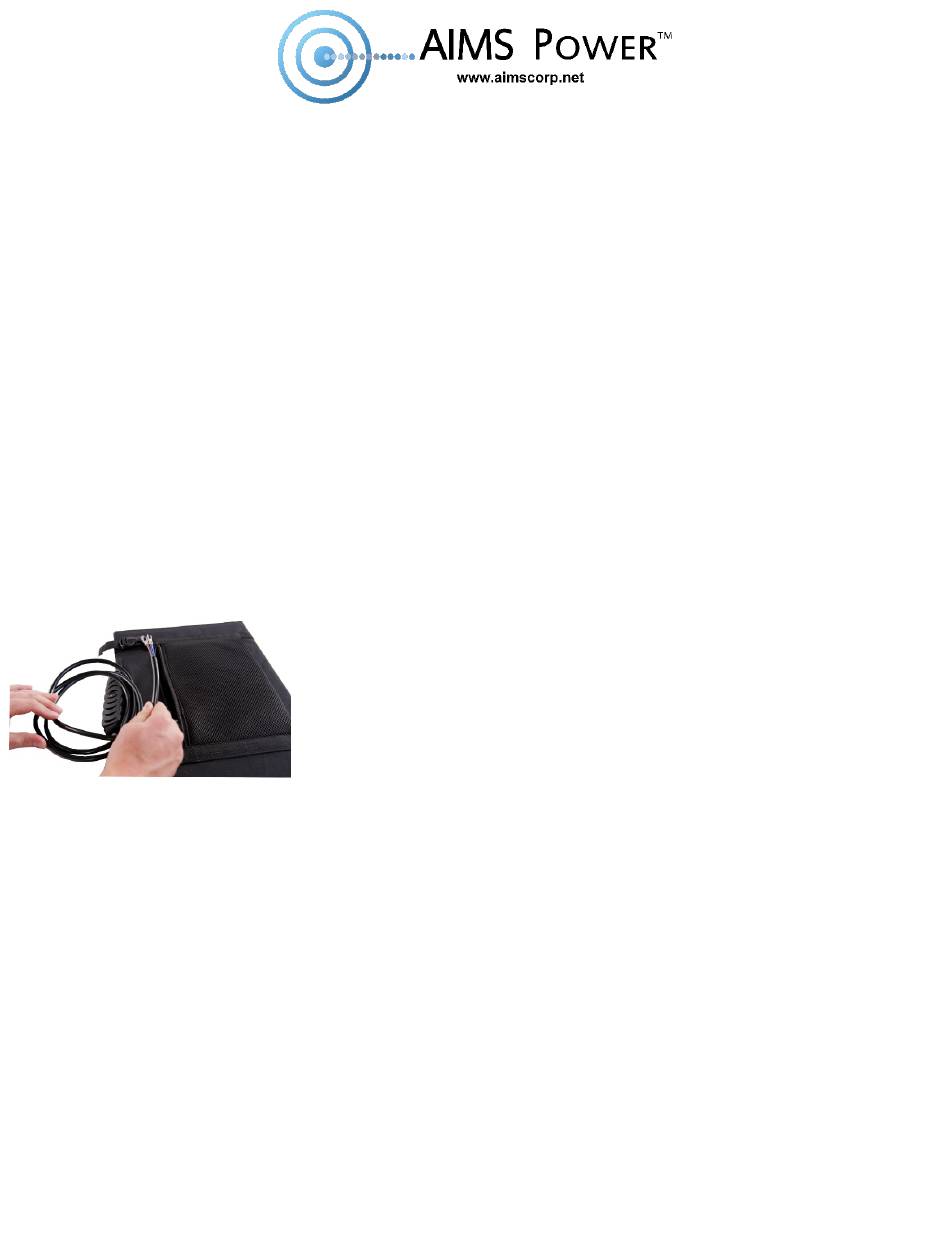

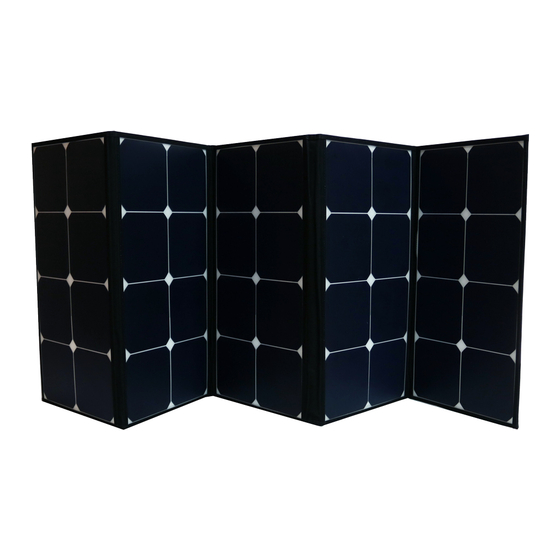

PORTABLE FOLDABLE SOLAR PANEL INSTRUCTIONS
PV130CASE

Product Inspection

1. Confirm there is no visible damage to the product.
2. Contents include panel and pre-wired charge controller cables.

Installation

1. The panel includes a prewired positive and negative cable that connects to a solar charge controller providing a
charge to an external battery.
Brown wire = positive (+)
Blue wire = negative (-)
2. The wires connect to a charge controller via the spade lug on the end. Some charge controllers may connect via bare
wire. If this is the case, simply cut off the spade lugs and slide bare wire into the controller.
3. When connecting the solar panel to charge controller:
-Make sure the charge controller is connected to the battery FIRST, then connect the panel to the charge controller.
4. Ensure the cables are connected securely. Do NOT reverse the polarity. This will damage the panel and void the
warranty.
5. When disconnecting the solar panel from charge controller:
-Make sure to disconnect the solar panel from charge controller FIRST, then disconnect solar charge controller from
battery.
