Summary of Contents for Raidmax AGUSTA

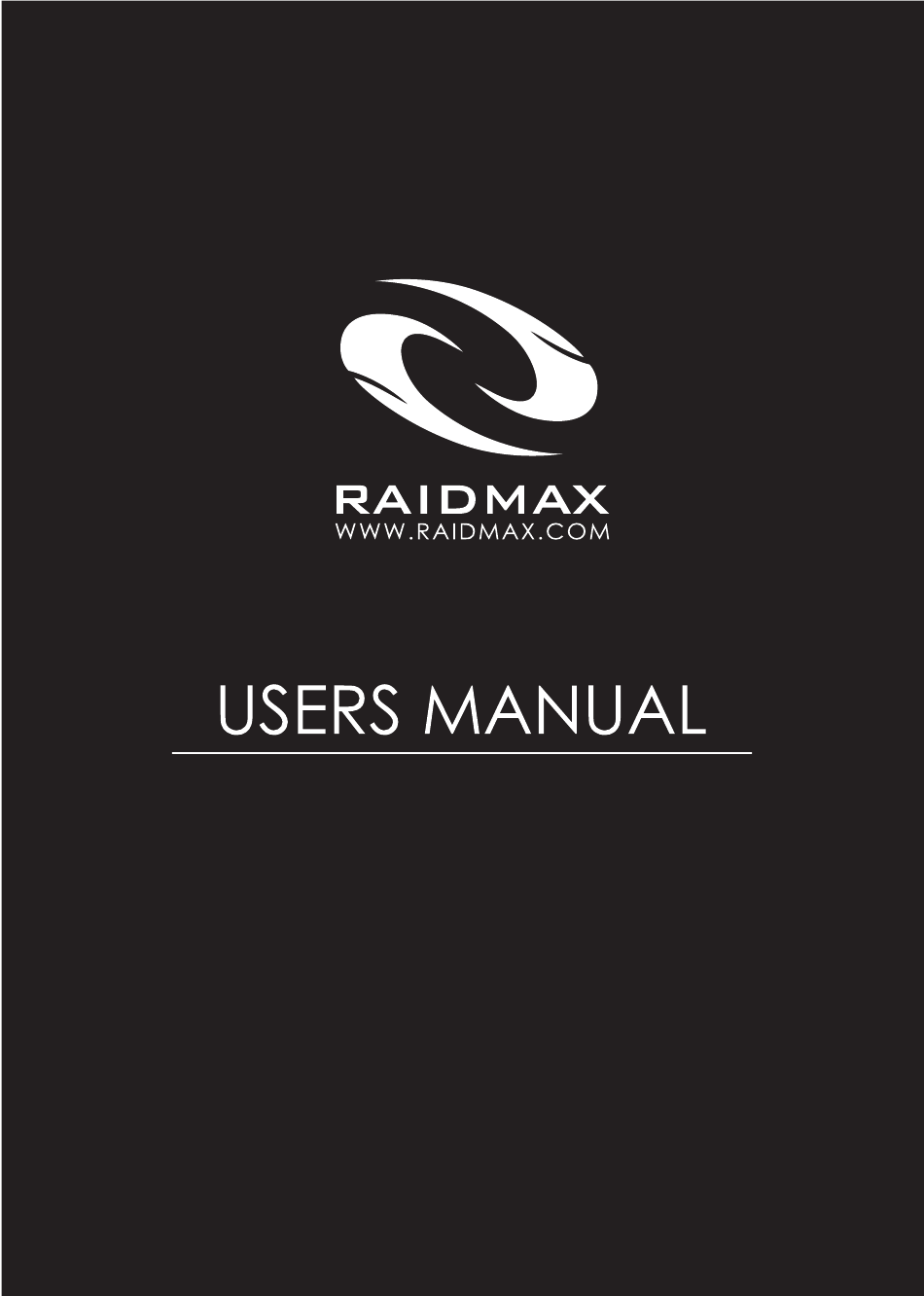

- Page 1 AGUSTA -ATX605...
- Page 2 After numerous global feedback, Raidmax is known all over the world. It is said our company is not only a case designer but also the perfect budget keeper.”...
-
Page 3: Specification
SPECIFICATION MODEL NO. AGUSTA (ATX-605) Meshed bay covers FRONT BEZEL MATERIAL 0.6mm SECC BODY MATERIAL Solid designed window SIDE PANEL 5 X 5.25" EXTERNAL DRIVE BAYS 6 x 3.5" INTERNAL DRIVE BAYS SSD DRIVE BAYS 10" X 12" MAX SIZE ATX FORM FACTOR/... -
Page 4: Power Supply Installation
POWER SUPPLY INSTALLATION Please refer to the case interior infrastructure and secure the power supply at the back of the case. * Secure the PSU in the right direction by using screw. NOTE: CPU, RAM and any other peripheral installations are not included in this manual. -
Page 5: Motherboard Installation
MOTHERBOARD INSTALLATION Due to each motherboard has different layout, it is highly suggested to refer to your motherboard’s manual when installing motherboard into the case. This chassis is available for standard ATX and Micro ATX. This case includes the standard I/O panel which is used by majority of today’s motherboard. - Page 6 3. USB 3.0 CONNECTION (1) The motherboard with USB3.0 support is required. (2) Connect the USB3.0 cable to the USB3.0 port. NOTE: Please refer to your motherboard manual for proper installation instructions. 4. FAN SPEED AND LIGHT CONTROLLER CONNECTION Fan light controller Fan speed controller 1.Use left button to control fan speed.
-
Page 7: Cable Management
5. CABLE MANAGEMENT 1. Running wires through the holes to keep all wires organized. 2. Specail cut-out design of side panel gives more room for cable management. 3. Rubber avoids damage of cables and also helps fastened. -
Page 8: Driver Bays Installation
6. DRIVER BAYS INSTALLATION (b),(c) (a) 5.25" Driver bays installation Close 1. Remove the bay cover. 2. Put the drive into the bay in the right direction. 3. Put tool free lock into the place and turn clockwise to secure the drive. (b) 3.5"... - Page 9 (c) 3.5”HDD cage is also available for 2.5” H.D. installation 1. Turn the hard disk bracket upside down and secure the 2.5” HD or SSD to the bracket by using screws. 2.+ 3. Put the hard disk bracket back in the right direction. (d) 2.5"...
- Page 10 7. PCIEXPRESS, AGP, PCI CARD INSTALLATION 1. Loosen the screw to remove the cover. 2. Secure the graphic card in the right direction by using the screw.
- Page 11 If you have any further questions or comments, please do not hesitate to contact us at: techsupport@raidmax.com Thank you for your support...
- Page 12 www.raidmax.com...
