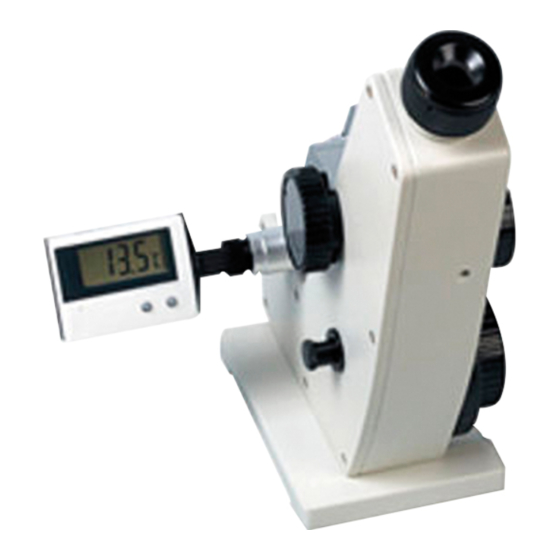

- Page 1 ABBE Analogic refractometer RST111 Please read the User Manual carefully before use, and follow all operating and safety instructions! user manual english...
-
Page 2: Warranty
User Manual ABBE Analogic refractometer RST111 Preface Users should read this manual carefully, follow the instructions and procedures, and beware of all the cautions when using this instrument. Service When help is needed, you can always contact the Service Department of manufacturer for technical support: www.labbox.com / e-mail: info@labbox.com... -
Page 3: Safety Instructions
1. Safety Instructions • Please read this manual carefully before installing or operating this equipment. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential safety hazard. We are not responsible for any injury or damage caused by modifying the instrument without authorization. •... -
Page 4: Main Parts Diagram
4. Main parts diagram 1. Reflecting mirror 7. Dispersion graduation wheel 13.Thermometer holder 2. Rotation shaft 8. Eyepiece 14. Base 3. Hood 9. Cover plate 15. Refr. index graduation wheel 4. Thermometer 10. Hand wheel 16.Adjusting cavity 5. Light entering prism holder 11. -
Page 5: Operation
Between the light-entering prism (1) and the refracting prism (2) there is a small gap, in which the liquid to be measured is placed. When a light beam (natural light or incandescent light) enters the light-entering prism (1), a diffuse reflection will be caused on its frosted surface; therefore, incident rays with various angles in the liquid to be measured will, via the reflecting prism (2), form a light beam with reflection angles larger than the angle of emergency. - Page 6 5.1.2 before performing the measurement and making the calibration of the indication each time, the dull surface, the polished surfaces of the reflecting prism and standard sample should be cleaned with absorbent cotton soaked in a mixed solution of absolute alcohol and diethy1 ether (1:1), so as to remove other foreign substance which will affect the sharpness of image and the accuracy of measurement.
-
Page 7: Maintenance
6. Maintenance To ensure the accuracy of the instrument and prevent it from damage, please pay attention to the maintenance. Some points for attention are hereby given: 6.1 The instrument should be placed in a dry and well-ventilated room, so as to prevent the optical components from becoming damp and going moldy. - Page 9 When the reading Z indicated on the scale ring is 30, the value σreadfrom the Table takes (+) sign; if 30, (-) sign ＜ ＞ Note: The dispersion angle of the refracting prism: ф = 62°, maximum angle dispersion of Amici prism: 2K= 183.62’, refractive index of refracting prism: nD = 1.7547, average dispersion of refracting prism: nF-nC=0.02738 Take measuring the average dispersion of distilled water as an example: When temperature is 20℃,nD =1.3330 The reading of dispersion value indicated on the scale ring will be:...
- Page 10 7. How to use the digital thermometer Open the cover and install the batteries in accordance with the polarities The thermometer will turn on automatically Turn off and put the key for four seconds turn on, put the key back on When the temperature is higher than 70 °C, display will show H, when is lower than -50 °...
- Page 11 Nota importante para los aparatos electrónicos vendidos en España Important note for electronic devices sold in Spain Remarque importante pour les appareils électroniques vendus en Espagne Instrucciones sobre la protección del medio ambiente y la eliminación de aparatos electrónicos: Los aparatos eléctricos y electrónicos marcados con este símbolo no pueden desecharse en vertederos. De conformidad con la Directiva 2002/96/ CE, los usuarios de la Unión Europea de aparatos eléctricos y electrónicos, tienen la oportunidad de retornar el instrumento para su eliminación al distribuidor o fabricante del equipo después de la compra de uno nuevo.
- Page 12 www.labbox.com...
