TLC Electrical Supplies LEDLITE LTCL4W User Instructions

LTCL4W
Please read these instructions and retain them for future reference.

Important information

It is recommended that the fittings are installed by a qualified electrician ensuring the installation
complies to current IEE wiring regulations & local building control.
We cannot accept responsibility for any claims arising from a poor installation.

Important User Advice

• Always switch off mains supply before installation.
• The fitting is suitable for indoor use only.
• This product is Double Insulated and does not require connection to an Earth circuit.
• This system operates at Safety Extra Low Voltage (12V), via a LED power supply.
• Never connect the light fittings directly to the mains.
• Do not exceed the LED power supply load - a maximum of 6 lights can be connected with the
18W power supply included.

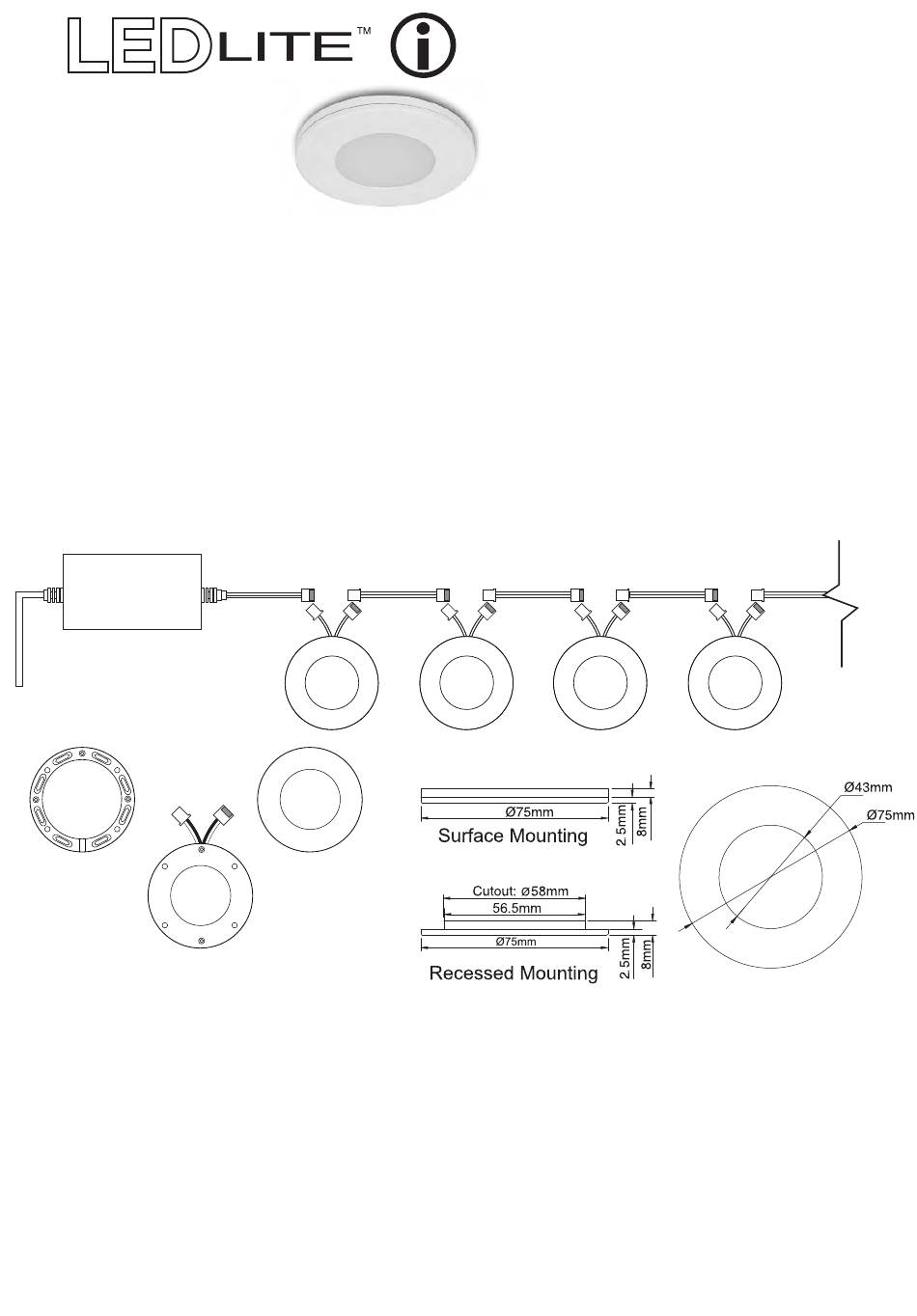

Components and Structure:

Electronic
Power Supply
1m Cable
220-240 V/AC
Cabinet Light
Surface Mount Ring
Cabinet Light with
Male & Female Connector

Specifications:

• Nominal Power: 2.2W/light
• Power Adapter Max Load: 18W
• Up to 6 Cabinet lights can be installed
in series using supplied adapter
• Lumen Output: 180lm/light
• Beam Angle: 110
• CRI(Ra): 80
• LED Colour: 4000k Cool White
• IP Rating: IP44
• 2 Year Warranty
• Operation Temp: Max Ta=45 C
24-07-2018
1m
+
-
3 cm 3 cm
Cabinet Light
Magnetic Bezel
0
0
User Instructions

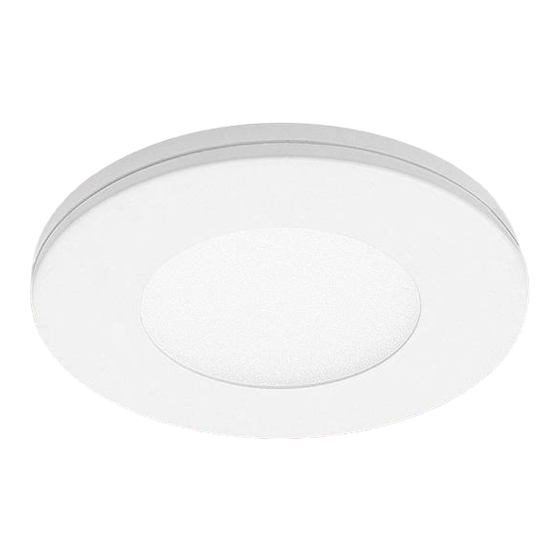

2.2W Ultra Slim LED
Cabinet Light Set 4pcs.
0.5m link 0.5m link
cable cable
Dimensions:
• Housing Material: High Quality Heat Conductive Plastic
• White Magnetic bezel included
• Cabinet lights complete with male and female connectors
• Surface or Recess Mount

Package includes:

• Ultra slim Cabinet Lights with male & female
connectors x 4pcs
• 18W 220-240VAC LED Driver x 1pc
• 3M sticky pads for surface mounting x 4pcs
• Mounting screws x 8pcs
• 0.5m 12V supply cable x 3pcs
• 1m 12V supply cable x 1pc
0.5m link
cable
Max 6 pcs.
Total 18W
