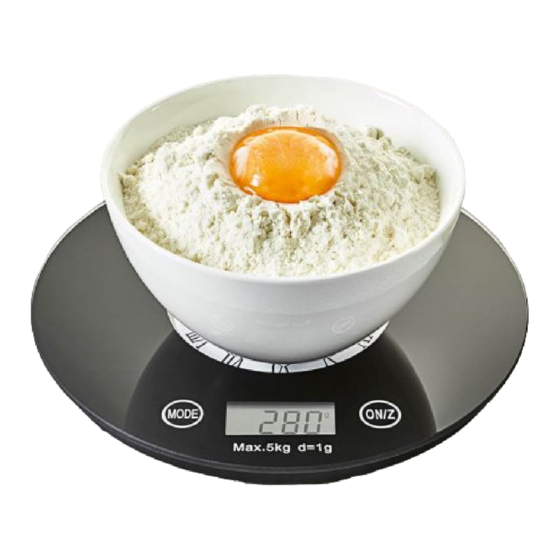

Eurotops 45484 Instruction Manual

MA568/ EPK408
Please read the manual before your first use. Keep this manual safe for future reference!
A SPECIFICATIONS
▪ Equipped with a high precision "strain-gauge" sensor
▪ Capacity 5000g
▪ Division 1g
▪ LCD Display 0.5"
▪ Tare function and g/oz convertible
▪ Low power and overload indicator
▪ 3mm tempered safety glass platform
▪ Two touch key function: ON/Z and Mode
▪ Quartz clock
B HOW TO INSTALL THE BATTERIES?
1. Battery required:
▪ 1 x 3V CR2032 lithium battery (included) for scale
▪ 1 x 1.5V LR44 (or AG13) alkaline zinc-manganese for clock.
Note: Before first use, pull out the plastic tab of the battery compartment!
When low battery indication "Lo", please install the new battery
after opening the cover of the battery holder.
2. Detailed description of the back of scale
Detailed description of the back of the
scale
Fig.1
3. Battery replacement for scale
a. Turn the scale over (see fig. 1 below to locate the battery compartment for scale [2]).
b. Remove the cover of the battery compartment by pulling out the black plastic tab (fig.3).
c. Take the used battery out by inserting the tip of pen inside the gap as shown on figure below. The
battery will tip allowing you to pull it out (fig.4).
d. Put a new lithium battery CR2032 (3V) by placing the battery under the large black plastic tab (fig.5).
e. Then press down on the battery. Make sure that the battery's positive pole faces upwards.
f. Put the cover back by inserting the 2 plastic tabs first, and then press down on the battery
compartment.
ELECTRONIC KITCHEN SCALE
INSTRUCTION MANUAL
Detailed description of
movement of clock (n°3)
1. Hook to hang the clock (scale)
2. Battery for the scale
3. Movement for the clock
a. battery compartment for
movement
b. Round wheel to set the time
Fig.2
