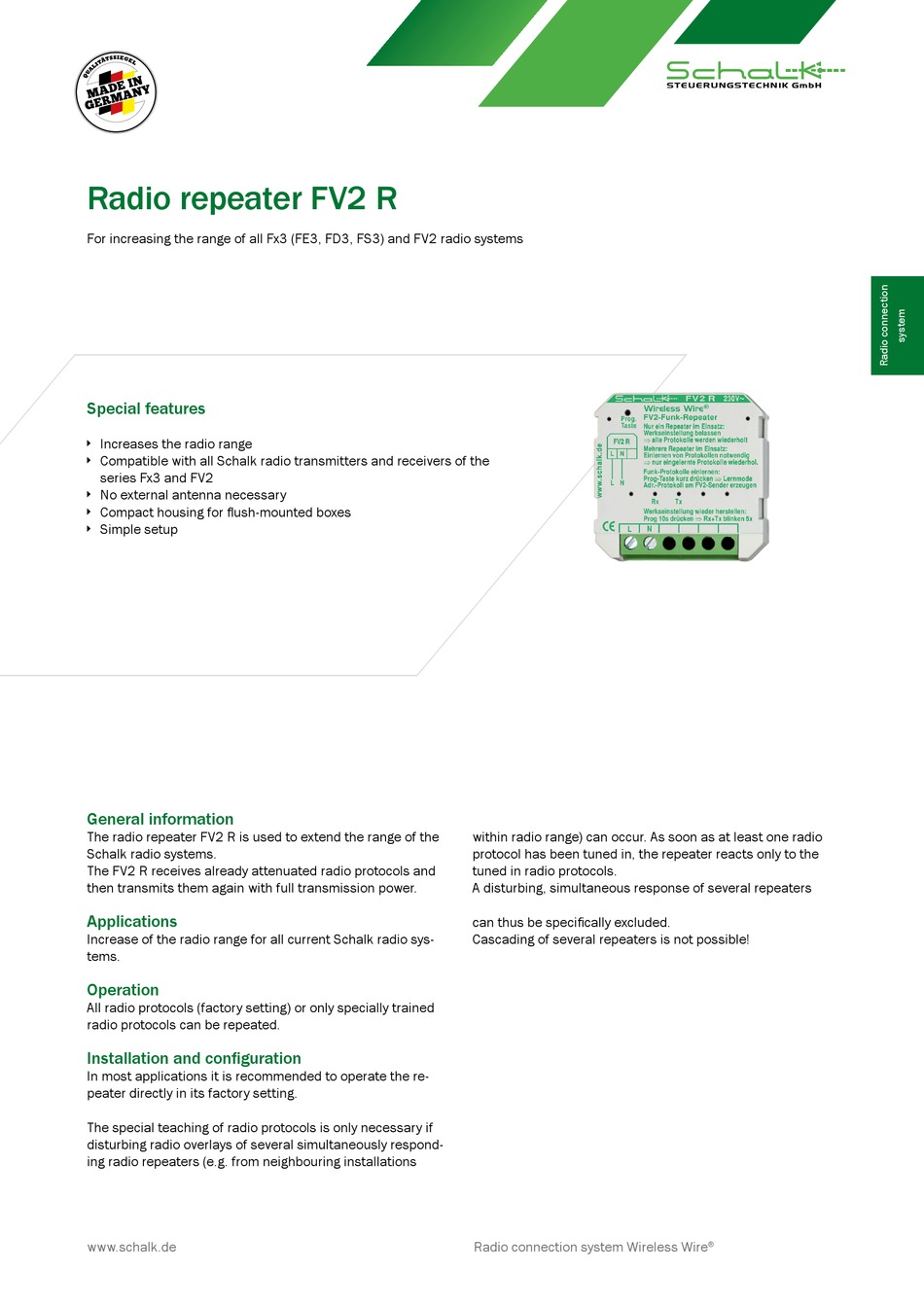

Radio repeater FV2 R
For increasing the range of all Fx3 (FE3, FD3, FS3) and FV2 radio systems
Special features
Ì
Increases the radio range
Ì
Compatible with all Schalk radio transmitters and receivers of the
series Fx3 and FV2
Ì
No external antenna necessary
Ì
Compact housing for flush-mounted boxes
Ì
Simple setup
General information
The radio repeater FV2 R is used to extend the range of the
Schalk radio systems.
The FV2 R receives already attenuated radio protocols and
then transmits them again with full transmission power.
Applications
Increase of the radio range for all current Schalk radio sys-
tems.
Operation
All radio protocols (factory setting) or only specially trained
radio protocols can be repeated.
Installation and configuration
In most applications it is recommended to operate the re-
peater directly in its factory setting.
The special teaching of radio protocols is only necessary if
disturbing radio overlays of several simultaneously respond-
ing radio repeaters (e.g. from neighbouring installations
www.schalk.de
within radio range) can occur. As soon as at least one radio
protocol has been tuned in, the repeater reacts only to the
tuned in radio protocols.
A disturbing, simultaneous response of several repeaters
can thus be specifically excluded.
Cascading of several repeaters is not possible!
