300, 400 & 500 Pull Out Larder
The Pull-Out runners will require adjusting once baskets are loaded, as weight distribution will affect the closing action
Assembly
1
Note: Be aware of handle screw
positions when fixing the door straps

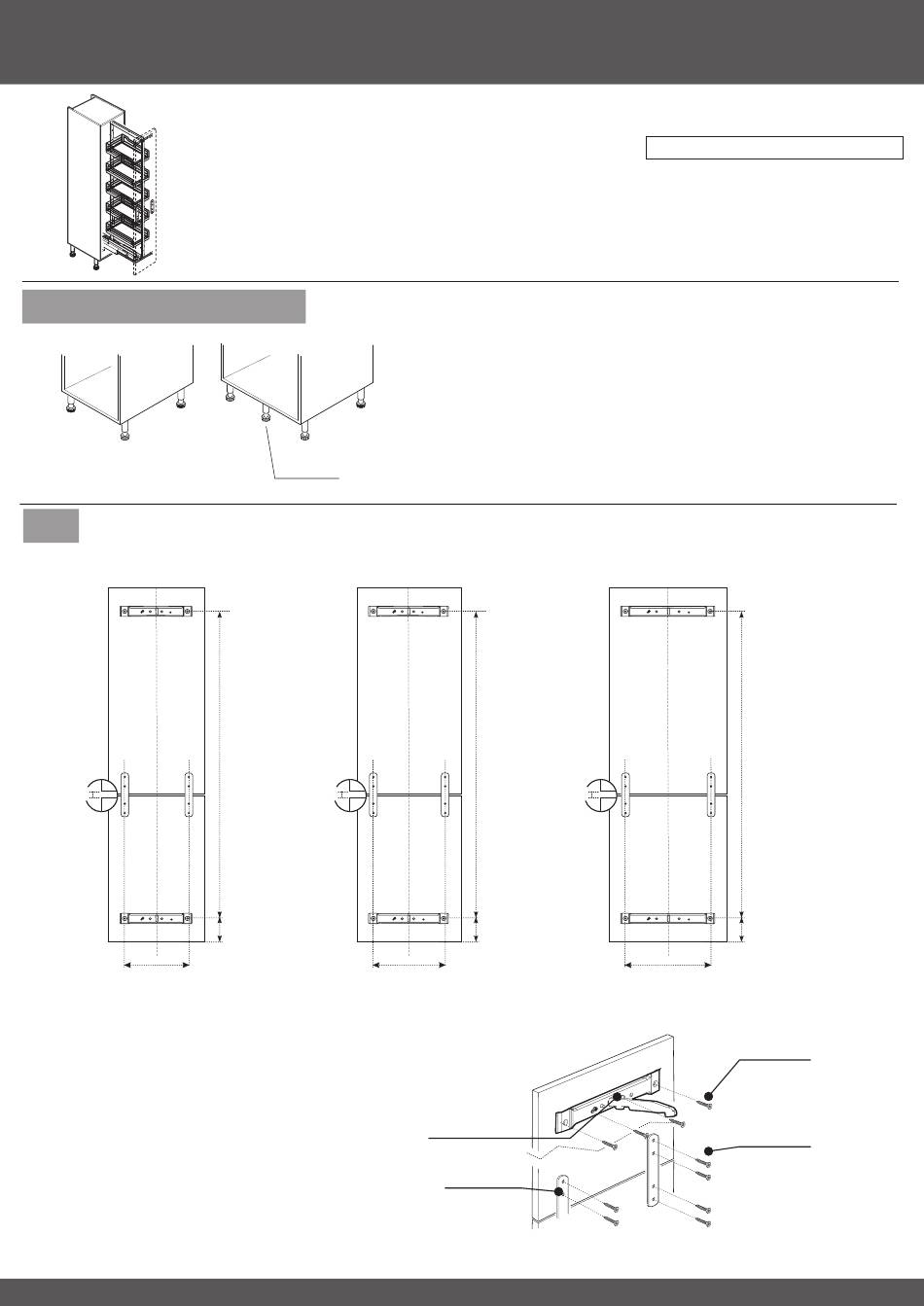

300 Frontal
2mm
=
=
225mm
HD516030
For five piece door constructions , care should be taken when fixing screws through into the back of the door
Integrated handle ranges require a longer door strap & a centre bracket supplied in the additional pack (see stage 4)
IMPORTANT: Ensure the cabinet is level, plumb and secured to the wall before installing
this product.
Follow the installation manual for fixing the feet to your cabinet.
Note: The 400 & 500 larder unit should have 5 feet fitted (one in a front centre position
for extra stability as shown in stage 1).
400 & 500 larder
additional foot
400 Frontal
1804mm
2mm
69mm
=
325mm
Ensure packaging is disposed of in a safe environmentally friendly way
We recommend the larder door handle is fitted horizontally
1804mm
2mm
69mm
=
Note: The two central screws in the top
bracket should not be fitted when
fitting a 5 piece door, with a
thin centre panel
Door Bracket x2
*Door
Strap x2
HYH13PF
Do not use a power driver for this product installation
18kg maximum load per basket
500 Frontal
1804mm
69mm
=
=
425mm
Screw x8
(4.5x16mm csk)
2 per bracket (300 Unit)
4 per bracket (400 & 500 Unit)
Screw x8
(4.5x16mm csk)
*For integrated handle
ranges use a longer door
straps & centre bracket supplied
in the additional pack
Important Notes:
HYH13PF
