1.

Components

1.1. major Components
1.2. Kit Contents:
Rear mounting brackets (2)
12-24 screws (16)
Galvanized hex bolt (1)
Galvanized hex nut (1)
10-32 nylon hex nut (1)
1/4 lock washer (1)
#10 flat washer (12)
2.

tools and equipment

In addition to the normal supply of tools, a 9/16 wrench
will be necessary.
3.

planning

Before you begin your installation, make sure you
understand how the unit is to be installed, where the unit
will be placed, and how the jumpers will be routed.
4.

installation

4.1. Foot Cap installation

The unit comes with all routing hubs and troughs already
assembled. The only assembly required is attaching the
unit to the frame.
step 1:
The foot extension that comes with the IBD
is to be installed first. To do so, remove the
two screws on the front of the frame foot cap
to remove the cover.
step 2:
Remove the foot cap cover for the IBD by
removing the screws in the front and the
back.
STANDARD RECOMMENDED PROCEDURE 003-914 | ISSUE 1 | March 2012 | PAGE 1 OF 3
Eclipse
Interbay Storage
®
Unit
p/n 003-914, Issue 1

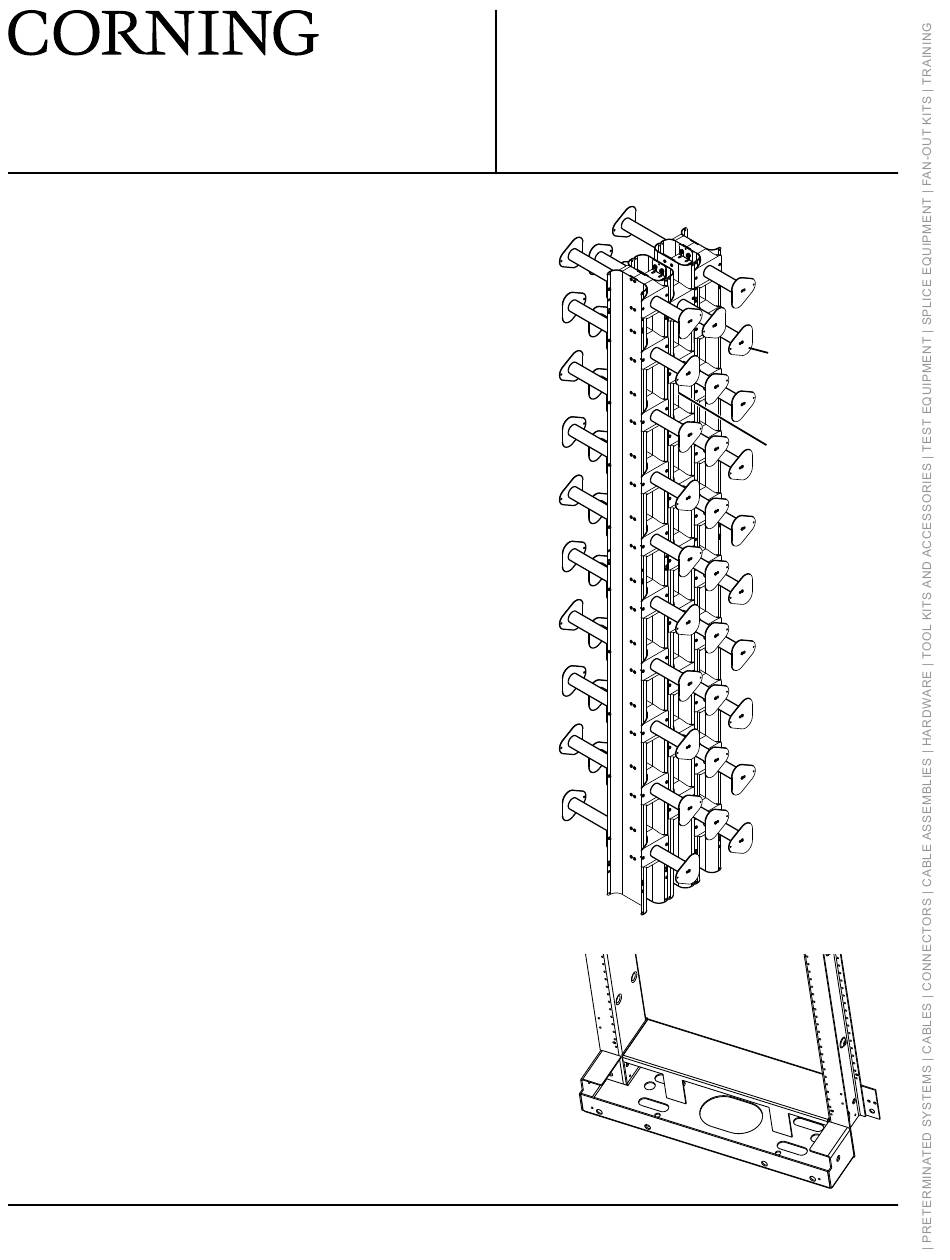

Routing Hubs
Feed-through
Ports
TPA-4096
TPA-4098
