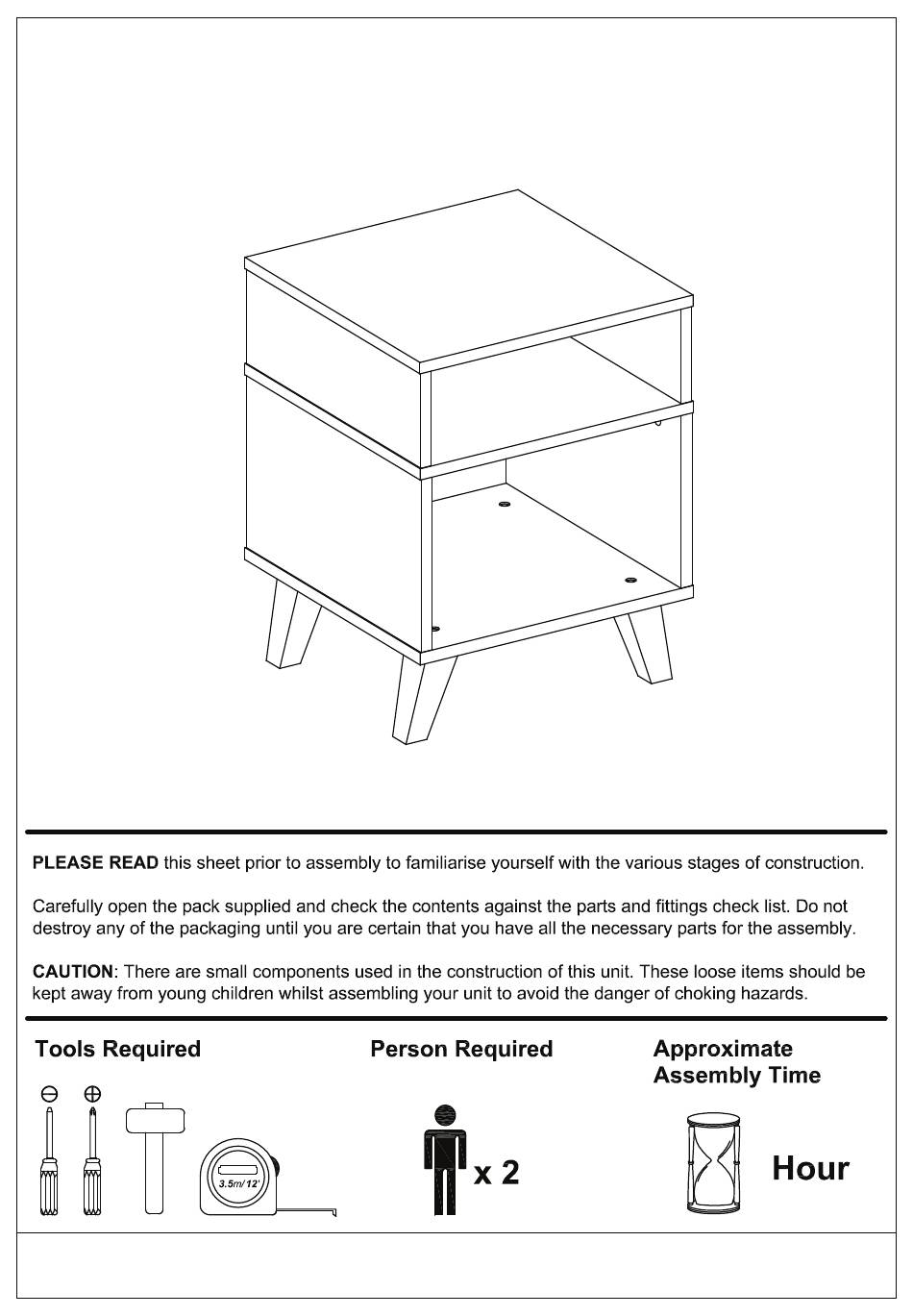

MODENA LAMP TABLE ASSEMBLY INSTRUCTIONS
LAMP TABLE.
Thank you for purchasing the
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)
3
9
5
x (D)
3
9
5
x (H)520mm
Colour : Melamine Grey
1
Batch No : PO# 3490
Page
Page 1 of 9
V1 3/19
Advertisement
Related Manuals for BIG FURNITURE WAREHOUSE MODENA G-MDNLAMGRY
Summary of Contents for BIG FURNITURE WAREHOUSE MODENA G-MDNLAMGRY
- Page 1 MODENA LAMP TABLE ASSEMBLY INSTRUCTIONS LAMP TABLE. Thank you for purchasing the Please read the instructions carefully to ensure safe operation of the product. Size: (W) x (D) x (H)520mm Colour : Melamine Grey Batch No : PO# 3490 Page Page 1 of 9 V1 3/19...
- Page 2 This product is intended for a maximum weight of 10kgs and drawer load capacity 5kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Top Side Panel (15 x 394 x 125mm) Top Panel (15 x 395 x 395mm) Fix Panel (15 x 395 x 395mm) Bottom Side Panel (L) (16 x 394 x 228mm) Bottom Side Panel (R) (16 x 394 x 228mm) Bottom Panel (16 x 395 x 395mm) Page 3 of 9 V1 3/19...
- Page 4 M6 x 40mm (Black) M4.7 x 38mm (Black) D6 x 30mm M5 x 29mm JCBC Screw CSK Screw Wooden Dowel Minifix Bolt D15 x 12mm Minifix Cam (120 mm) Minifix Cap Solid Wood Allen Key Page 4 of 9 V1 3/19...
- Page 5 STEP 1 Parts Required Qty Panel (A ) Panel (D) Panel (E) Page 5 of 9 V1 3/19...
- Page 6 STEP 2 Parts Required Qty Panel (B) Panel (C) STEP 3 Parts Required Qty Panel (A) Panel (B) Page 6 of 9 V1 3/19...
- Page 7 STEP 4 Parts Required Qty Panel (C) STEP 5 Parts Required Qty Panel (D) Panel (E) Page 7 of 9 V1 3/19...
- Page 8 STEP 6 Parts Required Qty Parts Required Qt Panel (F) Panel (F) STEP 7 Page 8 of 9 V1 3/19...
- Page 9 MODENA LAMP TABLE Your is now completely assembled Page 9 of 9 V1 3/19...
