Summary of Contents for ultraPLAY uPLAY TODAY PBP-8-1S

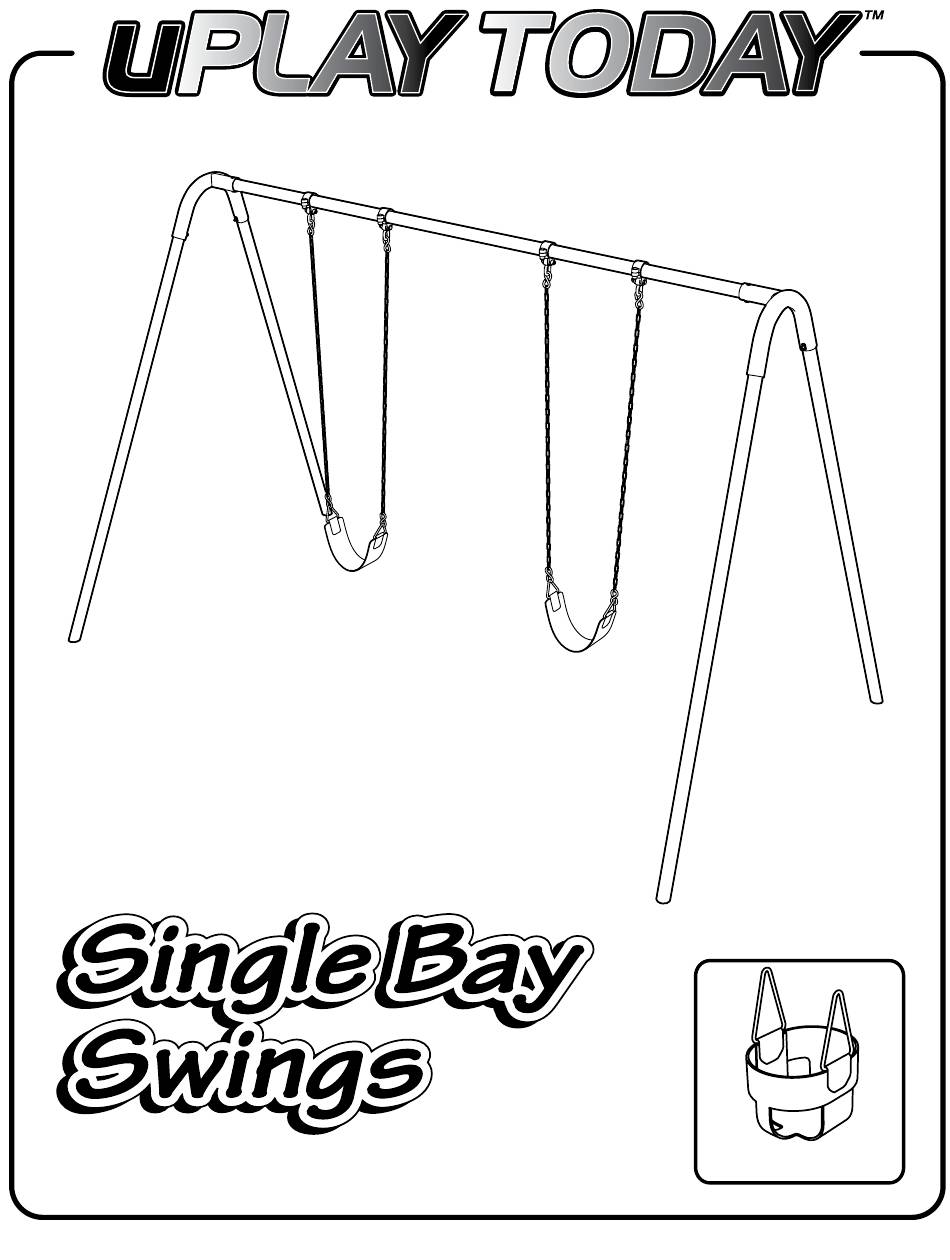

- Page 1 MODEL # PBP-8-1S (Set of 2 Strap Seats) MODEL # PBP-8-1C (Set of 2 Infant Seats) (2)Infant Seats ASSEMBLY INSTRUCTIONS (55-451RB) UPLAYTODAY • 800.458.5872 • ultraplay.com 02-10-15...
-
Page 2: Specifications
Check “S” Hooks specified by ASTM F 1487 Section 6.3 for entanglement. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection or disease. Maintain detailed installation, inspection, maintenance and repair records for public-use playground equipment. UPLAYTODAY • 800.458.5872 • ultraplay.com... -
Page 3: Tools Required
TOOLS REQUIRED Utility Knife Level Socket Wrench 3/4” 3/4” Wrench Allen Wrench 1/4” Tape Measure UPLAYTODAY • 800.458.5872 • ultraplay.com... - Page 4 HARDWARE REFERENCE (Actual Size) 7/16” x 2” Carriage Bolt 3/8” x 2-1/2” Hex Bolt (33-06-0094) (33-05-0031) 1/2” x 3/4” Long Allen Head 7/16” Lock Nut 3/8” Barrel Nut Set Screw (33-01-0017) (33-01-0013) (33-05-0009) UPLAYTODAY • 800.458.5872 • ultraplay.com...
- Page 5 IMPORTANT: Never install play equipment over hard, unresilient surfaces such as asphalt, concrete or compacted earth. It is the owner’s responsibility to ensure the “minimum area required” contains an appropriate amount of resilient material to cushion accidental falls. UPLAYTODAY • 800.458.5872 • ultraplay.com...
- Page 6 COMPONENTS Item Description Quantity End Connector 8’ Top Rail Swing Hangers Swing Legs Swing Seat w/Chain Package Infant Seat w/Chain Package (optional) 55-451RB UPLAYTODAY • 800.458.5872 • ultraplay.com...
- Page 7 Brick or equivalent compacted earth. It is the owner’s responsibility to ensure the “minimum area required” contains an appropriate GROUND amount of resilient material to cushion accidental falls. UPLAYTODAY • 800.458.5872 • ultraplay.com...
-
Page 8: Front View
NOTE: Swing Hanger(B) placement is measured from the center of each Swing Hanger(B). Infant swings and strap swings MUST be installed together in pairs in each swing bay. FRONT VIEW 27” 22” 34” 22” 27” (559mm) (864mm) (559mm) (686mm) (686mm) 132”(3353mm) UPLAYTODAY • 800.458.5872 • ultraplay.com... - Page 9 3/8” Barrel Nut TOP RAIL 1. Insert Top Rail into tube of Yoke Connector(A). 2. Align holes in Top Rail and Yoke Connector(A) and insert Hex Bolt(B). 3. Secure with Barrel Nut(C). 4. Repeat for other side. UPLAYTODAY • 800.458.5872 • ultraplay.com...
- Page 10 1. Insert Leg(A) into tube of Yoke Connector. 2. Secure with Set Screw(B). 3. Repeat for remaining (3) Legs. 4. Stand Swing upright and place into footers holes. ASSEMBLY IS COMPLETE Make sure swings are level and pour concrete into footers. UPLAYTODAY • 800.458.5872 • ultraplay.com...
- Page 11 18" [457mm] ASTM 12" [305mm] 15 3/4" [400mm] CPSC * UNDER LOADED CONDITION BASED ON WEIGHT OF 165lb. [75kg.] Infant Swing Seats must be AT LEAST 24” At least 24”(610mm) from the resilient Surfacing. RESILIENT SURFACE UPLAYTODAY • 800.458.5872 • ultraplay.com...
