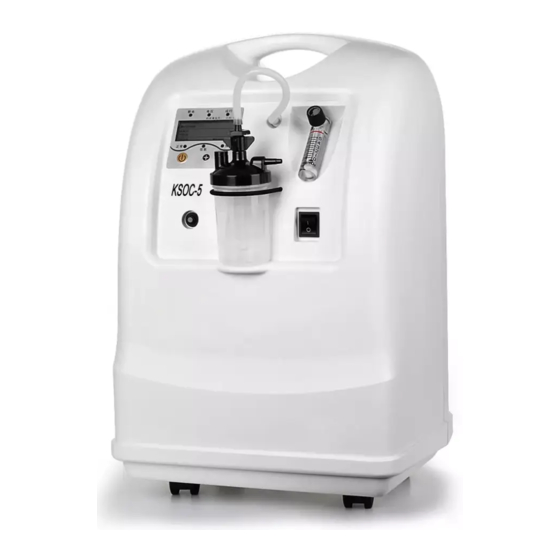

- Page 1 Rev.:1.4 OXYGEN CONCENTRATOR [KSOC SERIES] USER’S MANUAL Read carefully before use!
- Page 2 Drawing, Symbols, Abbreviation Note: Some symbols may not appear on your equipment. Symbol Symbol Explanation Explanation Increase or decrease Caution (Knob) Fragile-handle with care Type BF applied part Authorized representative Keep dry in the European Community This side up Class II equipment ON (power) Batch code OFF (power)
-
Page 3: Table Of Contents
Table of Contents 1 Safety Guidance....................1 2 Working Principle & Flowchart..............5 3 Intended Use and population................6 4 Front and back view..................7 5 Construction and Main Material..............8 6 Technical Parameters..................9 7 Models and Performance................11 8 Working Conditions..................11 9 Operation Instruction..................12 10 Atomization (for -M &-N models)............... -
Page 4: Safety Guidance
1 Safety Guidance 1. For the first time use, remove the fixed bolts on the bottom of the oxygen concentrator with tool we offered before using the concentrator. 2. If do not remove the bolts on the bottom of the oxygen concentrator, the concentrator will not work well. - Page 5 Safety Instruction 1. It uses the power of AC 220-240V 50/60HZ or AC110V 60HZ. 2. If any object or liquid enters the concentrators, immediately disconnect the power plugs, and have them examined by the expert before re-use. 2. And if the concentrator is to be left unused for a long time, unplug the plug from the power outlet;...
- Page 6 etc. F. The patient maybe is an intended operator, do not service and maintain while the ME equipment is in use. G. In certain circumstances oxygen therapy can be hazardous and that seeking medical advice before using the concentrator is advisable. H.
- Page 7 Be careful of the work environment, normal temperature range: 5℃－ relative humidity: ≤75% 40℃., E. Keep it stable at work and avoid sloping or inverting F. Do not pump the equipment as oxygen bag when the bottle has water. G. The water in the bottle should not be too much in case of the overflow (please keep the water level between MAX and MIN), and change the water often.
-
Page 8: Working Principle & Flowchart
2 Working Principle & Flowchart 1. Working Principle KSOC series of Medical oxygen concentrator is made up of filter system, compressor, adsorb tower, electrical control system, humidifier system and the reasonable air course from case structure. It adopts the current world’s advanced transformation absorption (PSA) principle. -
Page 9: Intended Use And Population
3 Intended Use and population Intended Use: For medical institutions to prepare oxygen for patients with hypoxia. Intended patient population: Adult and child; Medical condition: medical institutions; institutions or healthcare facilities with health care capabilities. Intended user: medical professional or trained patient; Contraindications: patients with oxygen poisoning and oxygen allergy are forbidden. -
Page 10: Front And Back View
4 Front and back view Front View Handle Humidifier connection tube Oxygen outlet Flow monitor Indicators and buttons Power switch Humidifier Atomization nozzle Humidifier holder Fixing elastic rope Caster Back View Air filter Overload protector Label Caster Power cable... -
Page 11: Construction And Main Material
5 Construction and Main Material Main Structure Material Filter system Foam filter, AB Sresin Compressor ZL102cast alum, filling PTFE Absorption chamber 6063 alum alloy, O5 zeolite Electrical system PCB, Silicone components Humidifying system ABS resin, Polypropylene Case ABS resin... -
Page 12: Technical Parameters
6 Technical Parameters Table 1 Main technical specification Power Max Flow O2 density Noise Dimension (mm) Weight Atomization Timing Remote control Item consumption (L/min) (V/V) dB(A) (L*W*H)±10 mm (Kg) Amount (mL/min) period distance (VA) KSOC-3 KSOC-3N ≥0.2 ≤53 ≤320 KSOC-3T KSOC-3M ≥0.2 KSOC-5... - Page 13 The density range output by KSOC-3 series: 0.5 L/min ~3L/min:≥90%; 4L/min:≥82%; 5L/min:≥78% The density range output by KSOC-5 series: 0.5 L/min ~3L/min:≥92%; 4L/min:≥91%; 5L/min:≥90% The effect of altitude on oxygen density delivered by oxygen concentrator： Altitude ≤800m 800m～1500m...
-
Page 14: Models And Performance
7 Models and Performance “N” Model is feature configuration, which is added air atomization function on the basic functions. “T” Model is feature configuration, which is added the function of Remote Control. “M” Model is feature configuration, which is added the functions of air atomization and Remote Control. -
Page 15: Operation Instruction
9 Operation Instruction Put the oxygen concentrator in a convenient and safe place where there is air flow and make sure its back case is at least 15 cm away from the wall, window or any other things that are obstructing the airflow. LCD, Indicators and Keys Total running time Current running... - Page 16 4. Put the humidifier onto the oxygen concentrator and fix it with the rubber band. Connect the outlet of the oxygen concentrator and inlet of the humidifier with the soft tube. 5. Connect the oxygen cannula of nasal pipette or oxygen tube with the humidifier outlet tightly or oxygen outlet of concentrator directly for fear for leak.
-
Page 17: Atomization (For -M &-N Models)
10 Atomization (for -M &-N models) 1. Take out the accompanied nebulizer, pour into proper atomized liquid by doctor’s advice, fix the water laps and tighten the cover in the clockwise. 2. Unscrew the atomization end cap and insert the atomization tube. Connect the other head of the atomization tube with the connecting nozzle on the nebulizer bottom. -
Page 18: Alarm And Indicator System
12 Alarm and Indicator System . Alarm system design aims at monitoring the working oxygen concentrator in case of such situations as power off, abnormal pressure or indicator of running condition of the equipment. All alarms of the concentrator are technical alarms. It includes an acoustic alarm system and a visual alarm system. -
Page 19: Maintenance And Service
cleanness of outlet and inlet of air without any blocks. And then restart the equipment, please inform the distributor or manufacturer and shut down the concentrator if the alarm is still on. 5. Total running time display: The LCD of oxygen concentrator will show the current running time of each normal operation and total running time of oxygen concentrator, convenient for user to operate regular necessarily maintenance. - Page 20 Make sure the filtration sponge dried and then fix to use, or it will influence the use age. Intake air filter inside oxygen concentrator should be replaced at least once or twice a year. The inner intake air filter could be seen when the transom is removed.
-
Page 21: Disposable
Please take the batteries out of the controller if unused for a long time. It uses 23A 12V battery to do wireless remote control. When it cannot works, the battery may not have sufficient power. Please replace the battery periodically with the same battery and be careful of the affirmative and negative pole. -
Page 22: Troubleshooting
16 Troubleshooting Problems Potential Causes Solutions After turned on 1. The plug doesn’t insert the 1．Push the plug. the switch, the switch firm. 2．Check the power. light and 2. No power. 3．Press the button of concentrator 3. Overload protector overload protector. doesn’t work. -
Page 23: Service
17 Service In the normal condition of usual use and storage, the company is responsible for free repair and replacement if the concentrator cannot be used within a week after sold (within 12 month of commercial storage). The user can take the oxygen concentrator to the company following service department or agency or distributor for free repair with the invoice and warranty card if the equipment cannot be used within 12 month after sold. -
Page 24: Emc Guidelines
The use of accessories, transmitters and cables other than those specified by Konsung, with the exception of accessories and cables sold by Konsung of Oxygen Concentrator as replacement parts for internal components, may result in increased emissions or decreased immunity of the Oxygen Concentrator. - Page 25 The use of accessories, transmitters and cables other than those specified by Konsung, with the exception of accessories and cables sold by Konsung of Oxygen Concentrator as replacement parts for internal components, may result in increased Emissions or decreased Immunity of the Oxygen Concentrator.
- Page 26 IEC 61000-3-2 100Hz to 2kHz, Harmonic distortion Class A 2.5minutes Voltage fluctuations IEC 61000-3-3 2 hours, Clause 5 and flicker NOTE: The Emissions characteristics of this equipment make it suitable for use in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment (for which CISPR 11 class B is normally required) this equipment might not offer adequate protection to radio-frequency communication services.
- Page 27 704-787 Pulse modulation 217Hz, 9V/m 800-960 Pulse modulation 18Hz, 28V/m 1720 1845 1700-1990 Pulse modulation 217Hz, 28V/m 1970 2450 2400-2570 Pulse modulation 217Hz, 28V/m 5240 5500 5100-5800 Pulse modulation 217Hz, 9V/m 5785 Table 4 – Input AC power Port Immunity test levels Basic EMC Phenomenon Professional healthcare facility...
- Page 28 40% of UT for 5 Periods At 0º, 180º Voltage 70% of UT for 25 Periods IEC 61000-4-11 interruptions At 0º, 180º Table 5 – Signal input/output parts Port Immunity test levels Basic EMC Phenomenon Professional healthcare facility standard environment ±2 kV Electrical fast transients/burst IEC 61000-4-4 5kHz repetition frequency...
