Summary of Contents for Trox TAP Series

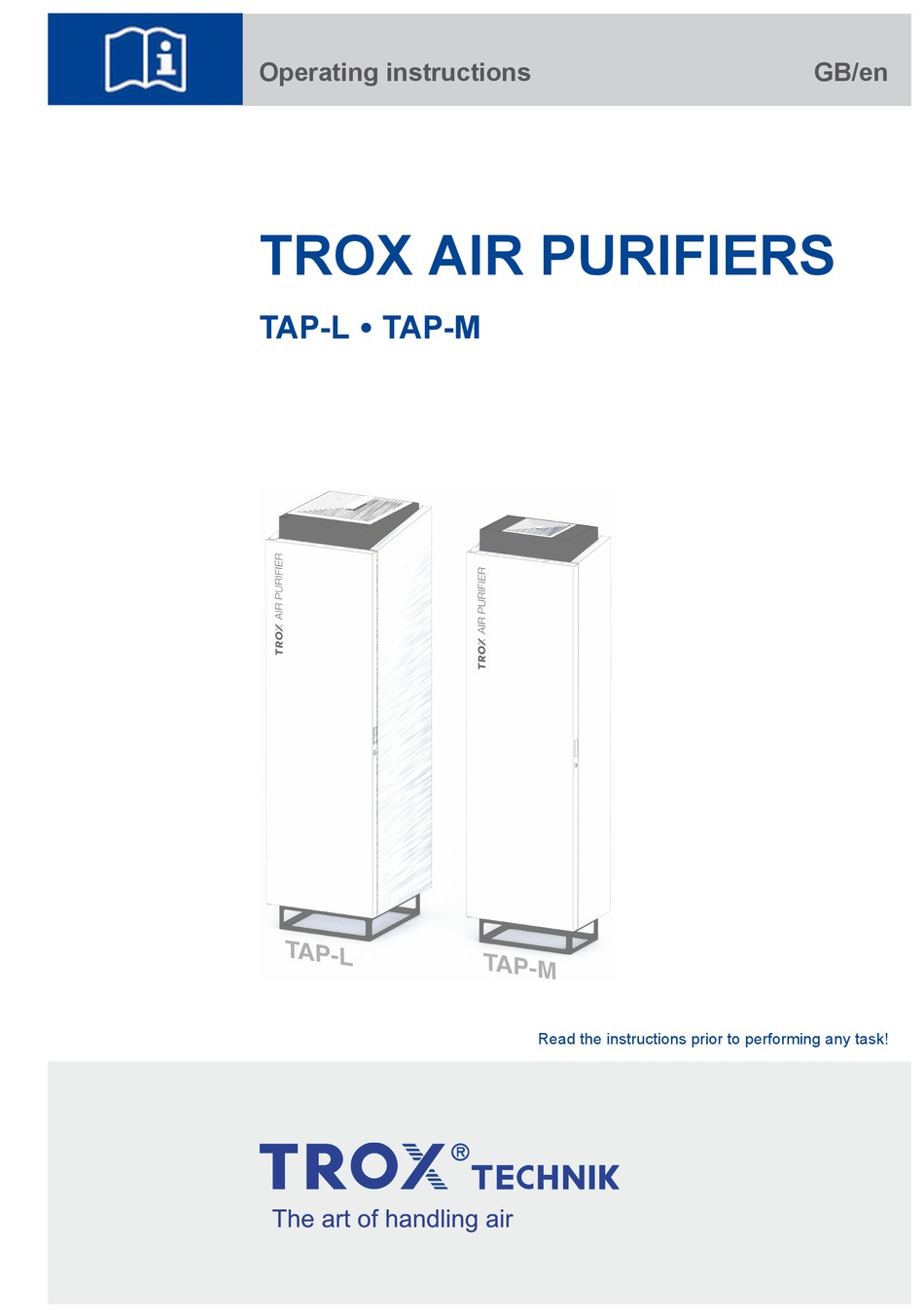

- Page 1 Operating instructions GB/en TROX AIR PURIFIERS TAP-L TAP-M Read the instructions prior to performing any task!
- Page 2 TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn, Germany Germany Phone: +49 (0) 2845 2020 Telefax: +49 2845 202-265 E-mail: trox-de@troxgroup.com Internet: http://www.troxtechnik.com A00000083746, 4, GB/en 11/2020 © 2020 TROX AIR PURIFIERS TAP-L TAP-M...
- Page 3 Limitation of liability About this manual The information in this manual has been compiled with This operating manual enables the TROX air purifier reference to the applicable standards and guidelines, TAP to be used safely and efficiently. the state of the art, and our expertise and experience of many years.
- Page 4 Specific safety notes The following symbols are used in safety notes to alert you to specific hazards: Warning signs Type of danger Warning – hand injuries. Warning – high-voltage. Warning – danger zone. TROX AIR PURIFIERS TAP-L TAP-M...
-
Page 5: Table Of Contents
7.1 Check and change filter ......19 7.2 Cleaning and disinfection ......Technical data ..........21 8.1 Circuit diagram ........Disposal ............23 Declaration of conformity ......24 Commissioning report/Maintenance report ................25 Index..............26 TROX AIR PURIFIERS TAP-L TAP-M... -
Page 6: Safety
1.1 Correct use unit are protected against damage (e.g. from ani- mals). The TROX air purifier is used to purify atmospheric air – Before each use, check the unit and connection indoors. As a stationary air purifier, the unit ensures a parts for possible damage. -
Page 7: Qualified Staff
Dust mask FFP2 Dust masks protect users from inhaling contaminated material such as aerosols and harmful dusts. Safety shoes Safety shoes protect the feet against crushing, falling parts, and from slipping on slippery ground. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 8: Residual Risks
This sticker indicates that the operating manual must be read and understood before any work is performed on the air purifier. It is located inside the unit, behind the door and above the filters. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 9: Behaviour In An Emergency
Remove the mains plug from the mains socket. ð Do not reconnect a defective unit to the mains supply. Have the unit repaired by the manufac- turer or a qualified specialist company. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 10: Information About The Unit
The air purifier is supplied in two construction variants (L and M), which differ in size (unit depth), weight, volume flow rate, sound power and filter size, Ä 8 ‘Technical data’ on page 21 . TROX AIR PURIFIERS TAP-L TAP-M... - Page 11 Information about the unit Fig. 4: Airflow The TROX air purifier draws indoor air into the unit at the lower air intake and feeds it to the filters. The pre- filter separates coarser particles, then the HEPA filter separates the smallest suspended particles from the indoor air.
-
Page 12: Transport, Storage And Packaging
Fig. 7: Transport by trolley – Use only lifting and transport gear designed for the required load. – When setting the unit upright, secure it against shifting and tipping over until installation is com- plete. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 13: Storage
3.4 Packaging Packaging materials: Wood Cardboard Foil packaging Expanded polystyrene ENVIRONMENT! Handling packaging materials Properly dispose of packaging material! TROX AIR PURIFIERS TAP-L TAP-M... -
Page 14: Installation
With regard to space requirements, it must be ensured that the control elements on the rear of the unit remain accessible and that the door can be opened far enough to allow a filter change (door opening angle 90°). TROX AIR PURIFIERS TAP-L TAP-M... -
Page 15: Mounting
Fig. 10: Securing of the fixing bracket on the wall necessary that the mains socket is close to the unit and easily accessible. Secure the bracket to the wall with suitable fixing mate- rial (screws and wallplugs) (slotted holes 7 mm). TROX AIR PURIFIERS TAP-L TAP-M... -
Page 16: Operation
5.4 Switching the unit off Use the mains isolator to switch off the unit ( Fig. 12 /1). ð If necessary, pull out the mains plug, e.g. during maintenance work or longer interrup- tions in operation. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 17: Operation On A Timer
Press the [▼] [▲] keys at the same time until ‘INFO’ appears. Press the [▼] key until ‘SETTING’ appears. Press the [P] key ð Setpoint 1 appears Press the [P] key again to activate setting mode. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 18: Troubleshooting
Fan or bearing defec- Switch off unit and notify customer service tive If you are unable to rectify the fault yourself: Contact the TROX customer service (see page 3) or a qualified electrician. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 19: Maintenance And Cleaning
Check the filter chambers for contamination 5.2 ‘Switching on’ on page 16 . and clean them with a damp cloth if neces- sary. ð Replace the prefilter if required, or according to the specified change intervals. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 20: Cleaning And Disinfection
To ensure permanent protection from suspended parti- cles contaminated with viruses and bacteria, we recom- mend using only genuine TROX filters. Original TROX filters carry a sticker on the frame with both the use before date and information on how to order replacements. -
Page 21: Technical Data
LwA dB(A) dB(A) 1000 1200 1400 1600 Sound pressure LpA with room attenuation 8 dB Construction M Volume flow rate [m³/h] LwA dB(A) dB(A) 1000 1200 Sound pressure LpA with room attenuation 8 dB TROX AIR PURIFIERS TAP-L TAP-M... -
Page 22: Circuit Diagram
Technical data Circuit diagram 8.1 Circuit diagram Fig. 14: Circuit diagram TROX AIR PURIFIERS TAP-L TAP-M... -
Page 23: Disposal
As electrical and electronic components may also contain recyclables (e. g. precious metals), they must be provided for recycling or disposal by a specialist disposal company. TROX AIR PURIFIERS TAP-L TAP-M... -
Page 24: Declaration Of Conformity
Declaration of conformity Declaration of conformity TROX AIR PURIFIERS TAP-L TAP-M... -
Page 25: Commissioning Report/Maintenance Report
Changing HEPA filter ☐ ☐ Checking the function of the air purifier (fan): Comment: Next maintenance See note on maintenance intervals, scheduled for: Ä ‘Maintenance measures’ on page 19 . Signature: (Technician) Company: (Stamp) TROX AIR PURIFIERS TAP-L TAP-M... -
Page 26: Index
Switching on............16 Hotline................. 3 switch off.............. 16 Unit description............Incorrect use............... Installation location............ 14 Volume flow rate Setting..............17 Labelling..............7 Limitation of liability............. 3 Warranty claims............3 Wiring................ 22 Mains connection............15 Maintenance.............. 19 TROX AIR PURIFIERS TAP-L TAP-M... - Page 27 TROX AIR PURIFIERS TAP-L TAP-M...
- Page 28 Germany TROX GmbH Phone: +49 (0) 2845 2020 Heinrich-Trox-Platz Telefax: +49 2845 202-265 47504 Neukirchen-Vluyn, Ger- E-mail: trox-de@troxgroup.com © 2020 many http://www.troxtechnik.com...
