Summary of Contents for SEI Mirage BT7812A0TX

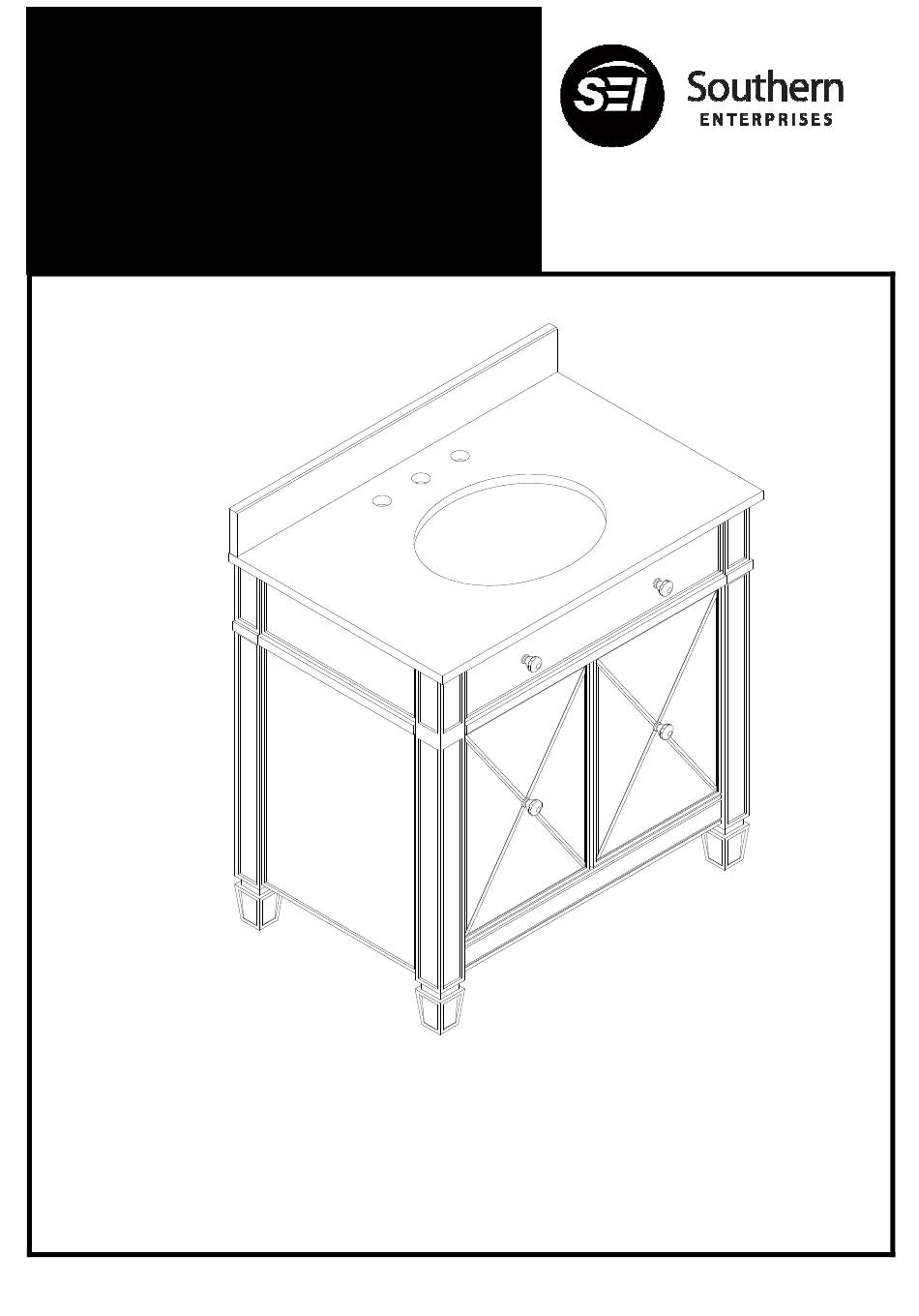

- Page 1 BT7812A0TX/BT7812B0TX Mirage Double-Door Vanity Sink Assembly Instructions For assistance with assembly, contact: Southern Enterprises, Inc. Customer Service: 1-800-633-5096 service@seidal.com www.seifurniturestore.com Page | 1...
- Page 2 Mirage Double-Door Vanity Sink Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if any hardware is missing.
- Page 3 Care and Cleaning Instructions: For replacement parts or Before using, wipe with a clean, dry cloth. Periodically apply questions, please call SEI furniture wax to renew the finish. Avoid rubbing or scratching the Customer Service at surface with rough or abrasive objects.
- Page 4 Mirage Double-Door Vanity Sink Assembly Instructions Insert Wood Dowels (5) into pre-drilled hole on Left Side Panel (C). Attach Upper Bars (E/F) to Left Side Panel (C) with Large Bolts (1) and Washers (2/3). Tighten Large Bolts (1) with Allen Wrench (4). Figure 1 Insert Wood Dowels (5) into pre-drilled holes on Left Side...
- Page 5 Insert Wood Dowels (5) into pre-drilled holes on assembled unit from Figure 2. Attach Right Side Panel (D) to assembled unit from Figure 2 with Large Bolts (1) and Washers (2/3). Tighten Large Bolts (1) with Allen Wrench (4). Figure 3 Attach Back Lower Bar (G) to Bottom Panel (H) with Large Bolt (1) and Washers (2/3).
- Page 6 Attach Knobs (6) to pre-assembled unit from Figure 4 with Small Bolts (7) and Rubber Gaskets (13). Tighten Medium Bolts (7) with Phillips screwdriver (not included). Figure 5 Attach Hinges (8) to Doors (I) with Screws (9). Tighten Screws (9) with Phillips screwdriver (not included).
- Page 7 Attach one Door (I) to assembled unit from Figure 5 with Screws (9). Attach Knob (6) to Door (I) with Small Bolt (7) and Rubber Gasket (13). Tighten Small Bolt (7) and Screw (9) with Phillips screwdriver (not included). Figure 7 Attach 2nd Door (I) to assembled unit from Figure 6 with Screws (9).
- Page 8 Insert Shelf Pins (12) into pre-drilled holes on side panels. Place Shelf (J) onto Shelf Pins (12). Figure 9 Insert Marble Top (A) into assembled unit from Figure 9. Figure 10 Page | 8...
- Page 9 Attach Metal Plates (10) to Back Splash (C) and assembled unit from Figure 10 with Medium Bolts (11) and Washers (2/3). Tighten Medium Bolts (11) with Allen Wrench (4). Figure 11 Now your Mirage Double-Door Vanity Sink is ready for use. Adjust foot pad to make unit level as needed.
- Page 10 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
