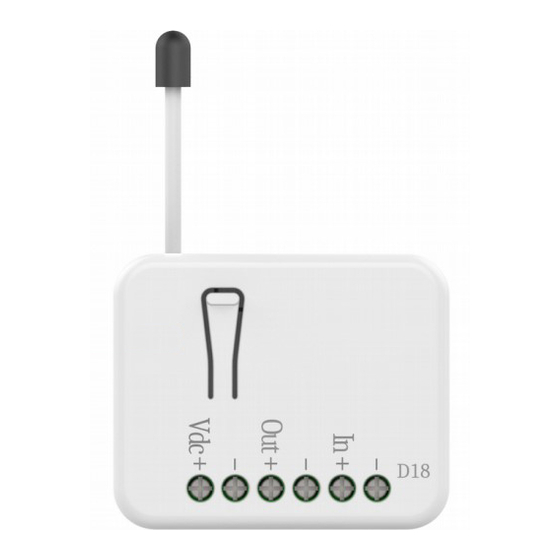

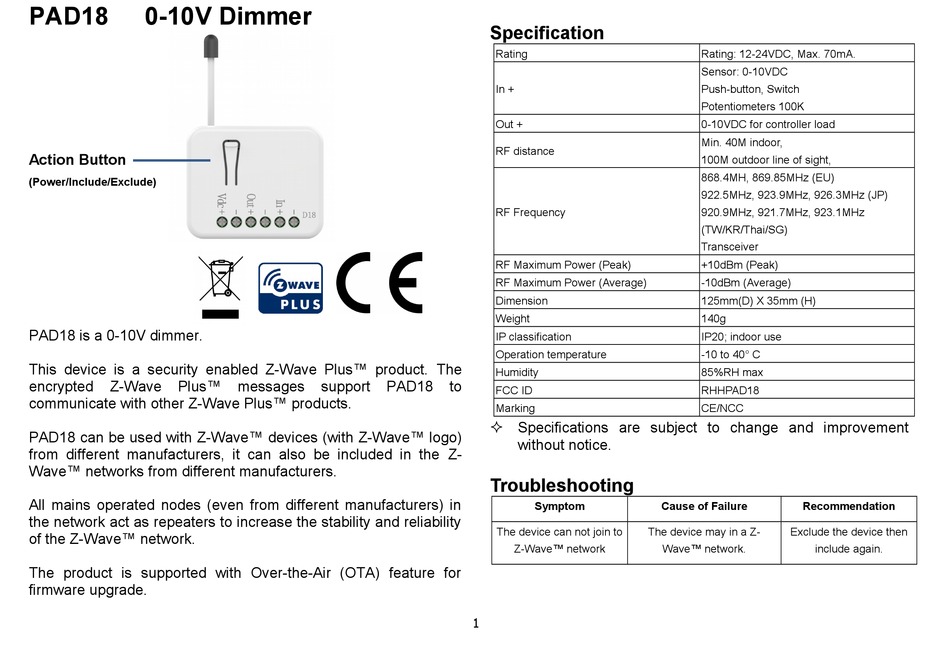

PAD18
0-10V Dimmer
Action Button
(Power/Include/Exclude)
PAD18 is a 0-10V dimmer.
This device is a security enabled Z-Wave Plus™ product. The
encrypted
Z-Wave
Plus™
communicate with other Z-Wave Plus™ products.
PAD18 can be used with Z-Wave™ devices (with Z-Wave™ logo)
from different manufacturers, it can also be included in the Z-
Wave™ networks from different manufacturers.
All mains operated nodes (even from different manufacturers) in
the network act as repeaters to increase the stability and reliability
of the Z-Wave™ network.
The product is supported with Over-the-Air (OTA) feature for
firmware upgrade.
messages
support
PAD18
Specification
Rating
In +
Out +
RF distance
RF Frequency
RF Maximum Power (Peak)
RF Maximum Power (Average)
Dimension
Weight
IP classification
Operation temperature
Humidity
to
FCC ID
Marking
Specifications are subject to change and improvement
without notice.
Troubleshooting
Symptom
The device can not join to
Z-Wave™ network
1
Rating: 12-24VDC, Max. 70mA.
Sensor: 0-10VDC
Push-button, Switch
Potentiometers 100K
0-10VDC for controller load
Min. 40M indoor,
100M outdoor line of sight,
868.4MH, 869.85MHz (EU)
922.5MHz, 923.9MHz, 926.3MHz (JP)
920.9MHz, 921.7MHz, 923.1MHz
(TW/KR/Thai/SG)
Transceiver
+10dBm (Peak)
-10dBm (Average)
125mm(D) X 35mm (H)
140g
IP20; indoor use
-10 to 40° C
85%RH max
RHHPAD18
CE/NCC
Cause of Failure
Recommendation
The device may in a Z-
Exclude the device then
Wave™ network.
include again.
Advertisement
Table of Contents
Related Manuals for Philio Technology Corporation PAD18
Summary of Contents for Philio Technology Corporation PAD18
- Page 1 Z-Wave Plus™ products. Marking CE/NCC Specifications are subject to change and improvement PAD18 can be used with Z-Wave™ devices (with Z-Wave™ logo) without notice. from different manufacturers, it can also be included in the Z- Wave™ networks from different manufacturers.
- Page 2 Installation Steps For Instruction to http:// www.philio-tech.com 1. Connect the switch to the In +& -, or potentiometer, or various sensors. 2. Connect Out +& - to controller load. 3. Connect Vdc +& - to 12-24VDC. 「 Danger of Electrocution Fig 1.
- Page 3 1. To initiate the SmartSart process, please type in the first five digits of DSK string or There is a button with LED indicator in front of PAD18. It is used scan the QR code. The QR Code can be to dim on/off the light and carry out the inclusion, exclusion, reset found on PAD18 or in the box.
- Page 4 Basic Command Class and Multilevel Switch Command Class. Under normal operation, when the PAD18 has not been allocated a However, if PAD18 is included as a secure node, it responds only Without node ID, the LED light will flash on and off alternately at 1-second...
- Page 5 Z-Wave Configuration ™ To set dimming level minimum value. Size Dimming level will Name Default Value Description (Info) (Byte) directly go to 0% when Output Min 0~ (Maximum dimming value is lower 0: General Switch Level level 1) than the setting value. 1: Variable Resistor Setting value: Input Mode...
- Page 6 Notice 1: Always Reset a Z-Wave™ device before trying to add it Highest granted Security Class Indicator to a Z-Wave™ network. Notice 2: PAD18 can be operated in any Z-Wave™ network Highest granted Security Class Manufacturer Specific which provided by other certified Z-Wave™ Controllers. All non-...
- Page 7 This device complies with Part 15 of the FCC Rules. Operation is Philio Technology Corporation subject to the following two conditions: 1. This device may not cause harmful interference, and 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C)
