Intralot PHOTON Setup Instructions

Once your Photon Terminal has been installed, you may use the training mode at any time to familiarize yourself and
your team with the device. In the TERMINAL TAB, press the TRAINING MODE button. Confirm your selection. Press
the SIGN IN button and enter in the last 6 digits of the retailer number for the user ID and 9999 for the passcode. To
exit training mode, simply press the SIGN OFF button and confirm your selection.

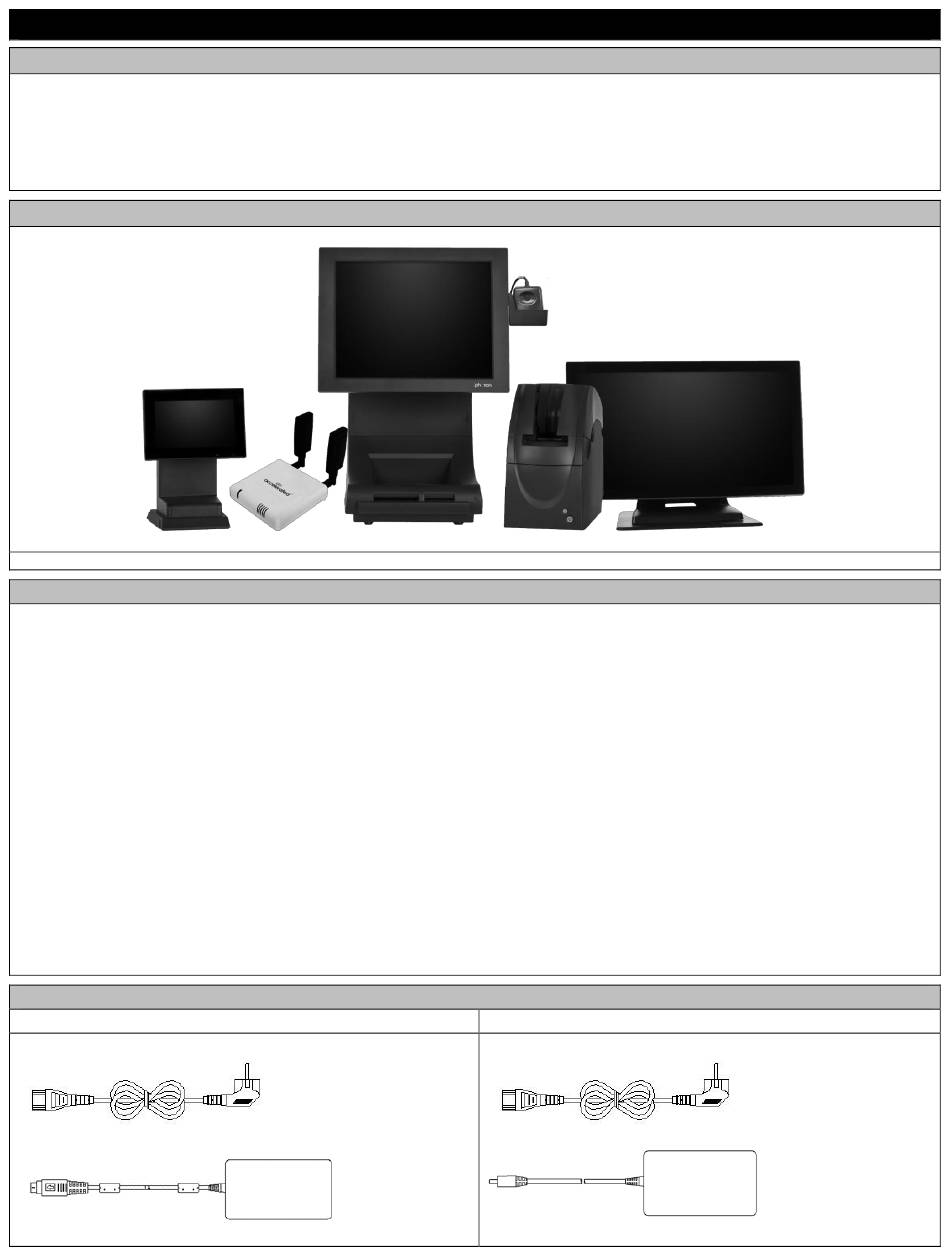

From left to right: Genion, Accelerated Modem, Photon Terminal, Barcode Reader, Printer, and Player Advertisement Display
EQUIPMENT LIST
Photon Terminal Package
1. Photon Terminal (1 pcs)
2. BRC Case Holder (1 pcs)
3. 2D Barcode Scanner (1 pcs)
4. Light Proof Shield (2 pcs)
5. Photon AC Cord (1 pcs)
6. Photon Adapter 12V 12.5A (1 pcs)
Accelerated Modem Package
1. Accelerated Modem (1pcs)
2.Modem Power Cable
3. LAN Cable for LAN Port 1
CABLES AND POWER CORDS
Photon Terminal AC Cord and Adaptor
INTRALOT PHOTON TERMINAL SET UP INSTRUCTIONS
THE COMPLETE PHOTON FAMILY
TRAINING MODE
Printer TSP-L10 Package
1. Printer TSP-L10 (1 pcs)
2. Printer Power Cable (1 pcs)
3. Printer Power Supply Adaptor (1 pcs)
4. USB Cable (1 pcs)
Genion Package
1. Genion Lite (1 pcs)
2. Genion Power Cable (1 pcs)
3. Genion Power Supply Adaptor (1 pcs)
4. LAN Cable for LAN Port 2
Player Advertisement Display (PAD)
1. Power Cable
2. HDMI Cable
Genion Power Cable and Adaptor
