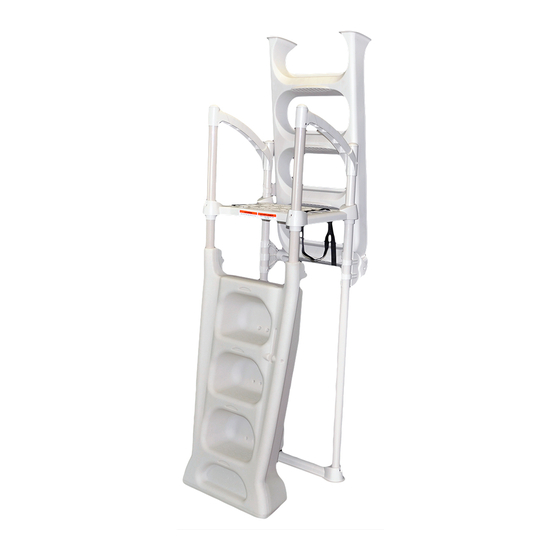

H2O WITH CLASSIC 6003
Contents of ladder box SKU # 7000
SCREW BAG 140-0010
510-005
x4
Install the step on a flat surface.
Do not jump or dive from the step or ladder.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer's instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.
Dry Side
x2
x2
WARNING
Wet Side
2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
Contents of ladder box SKU # 6003
SCREW BAG 140-0058
x2
x2
x18
x2 x2
x2
Security strap
A
1) Cut the two posts
included with the H20 to
29.25 inches long.
2) Insert the two posts into
the H2O ladder and fasten
them in place as shown
here with the screws
provided.
3) Slide the platform onto
the posts.
MANUFACTURER WARRANTY
1 year on pool ladder.
1 year on outside ladder.
REV. 10/12/2015
x2
x2
x2
x2
Required tools
(not included)
A weather-resistant padlock is
recommended.
Maximum functional
width of 1/4 inch.
29.25''
x4
1 year on hardware.
PN: 110-107
Sand
(not included)
PG:1
Advertisement
Related Manuals for Lumio INNOVAPLAS H2O WITH CLASSIC 6003
Summary of Contents for Lumio INNOVAPLAS H2O WITH CLASSIC 6003
- Page 1 H2O WITH CLASSIC 6003 Sand Contents of ladder box SKU # 7000 Contents of ladder box SKU # 6003 (not included) SCREW BAG 140-0058 SCREW BAG 140-0010 510-005 x2 x2 Security strap WARNING Required tools (not included) A weather-resistant padlock is recommended.
- Page 2 H2O WITH CLASSIC 6003 1) Fill the two bags provided with sand. 1) Insert the four post 2) Insert the sand bags into the base covers into their respective before submerging the step. locations on the handrails. 2) Insert the two handrails over the two front posts securing them in place with the screws provided.
