ETC VORA Assembly

STEP

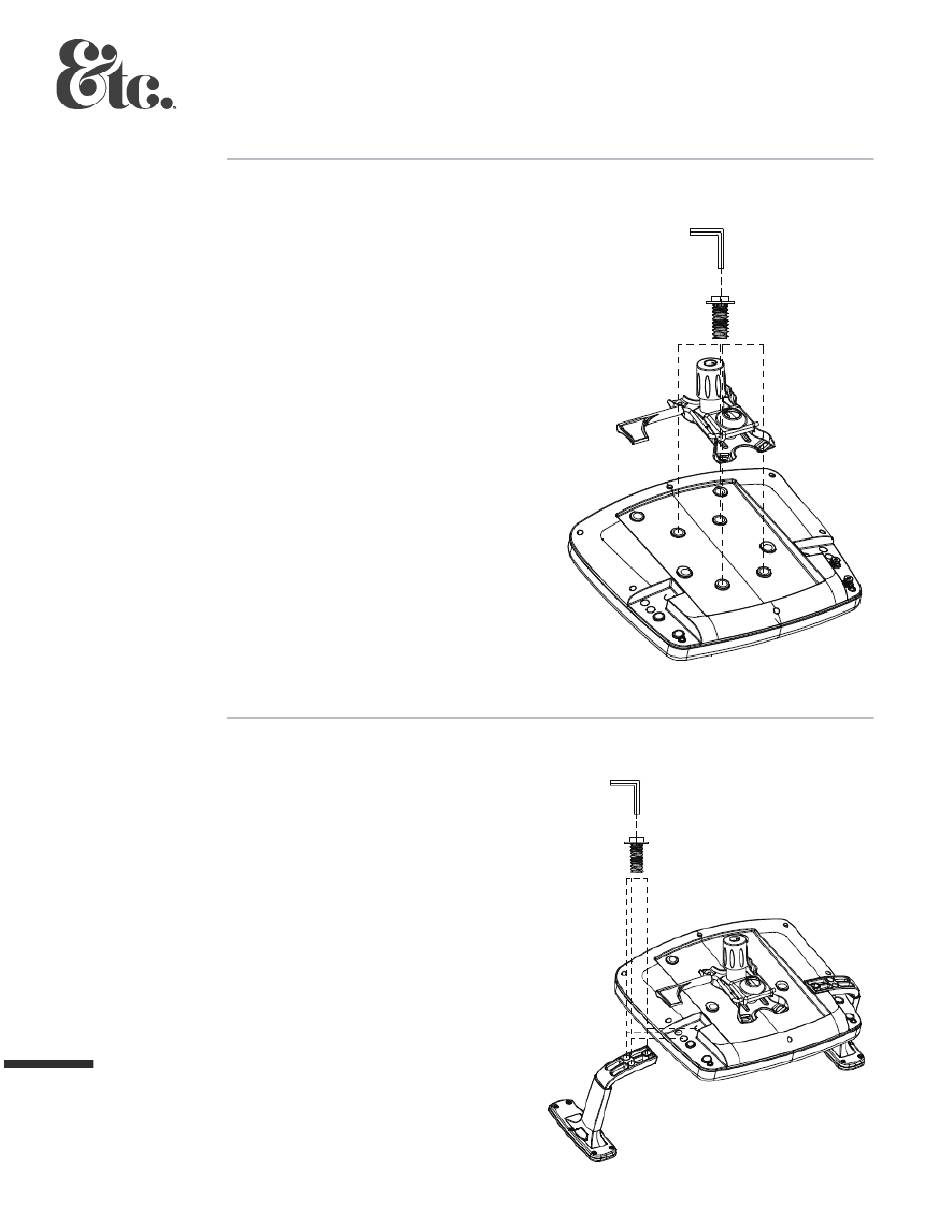

PLACE SEAT ASSEMBLY UPSIDE DOWN ON AN

ELEVATED FLAT SURFACE. POSITION SWIVEL TILT

CONTROL MECHANISM ON BOTTOM SIDE OF

SEAT ASSEMBLY TO MATCH THE INSIDE 4-HOLE

CONFIGURATION.

NOTE: THE SWIVEL TILT CONTROL ADJUSTMENT

KNOB IS TO BE POSITIONED TOWARD THE FRONT OF

THE SEAT. THE FRONT OF THE SEAT IS IDENTIFIED

BY THE FRONT ASSET LABEL. USING THE 5MM HEX

KEY WRENCH, SECURE THE SWIVEL TILT CONTROL

MECHANISM TO THE SEAT ASSEMBLY USING FOUR

5/16-18 X 1" HEX HEAD BOLTS.

STEP

POSITION THE RIGHT AND LEFT ARM ASSEMBLIES

ON THE BOTTOM OF THE SEAT AS SHOWN.

NOTE: TO ASSURE PROPER ASSEMBLY OF THE

RIGHT AND LEFT ARMS, EACH ARM SHOULD ANGLE

TOWARD THE FRONT OF THE SEAT, NOT REARWARD.

USING THE 5MM HEX KEY WRENCH, SECURE EACH

ARM WITH THREE 5/16-18 X 1 1/4" TRUSS HEAD BOLTS.

LifeWorkEtc.com

800-634-9514

VORA ASSEMBLY

FRONT

OF SEAT

FRONT

OF SEAT
