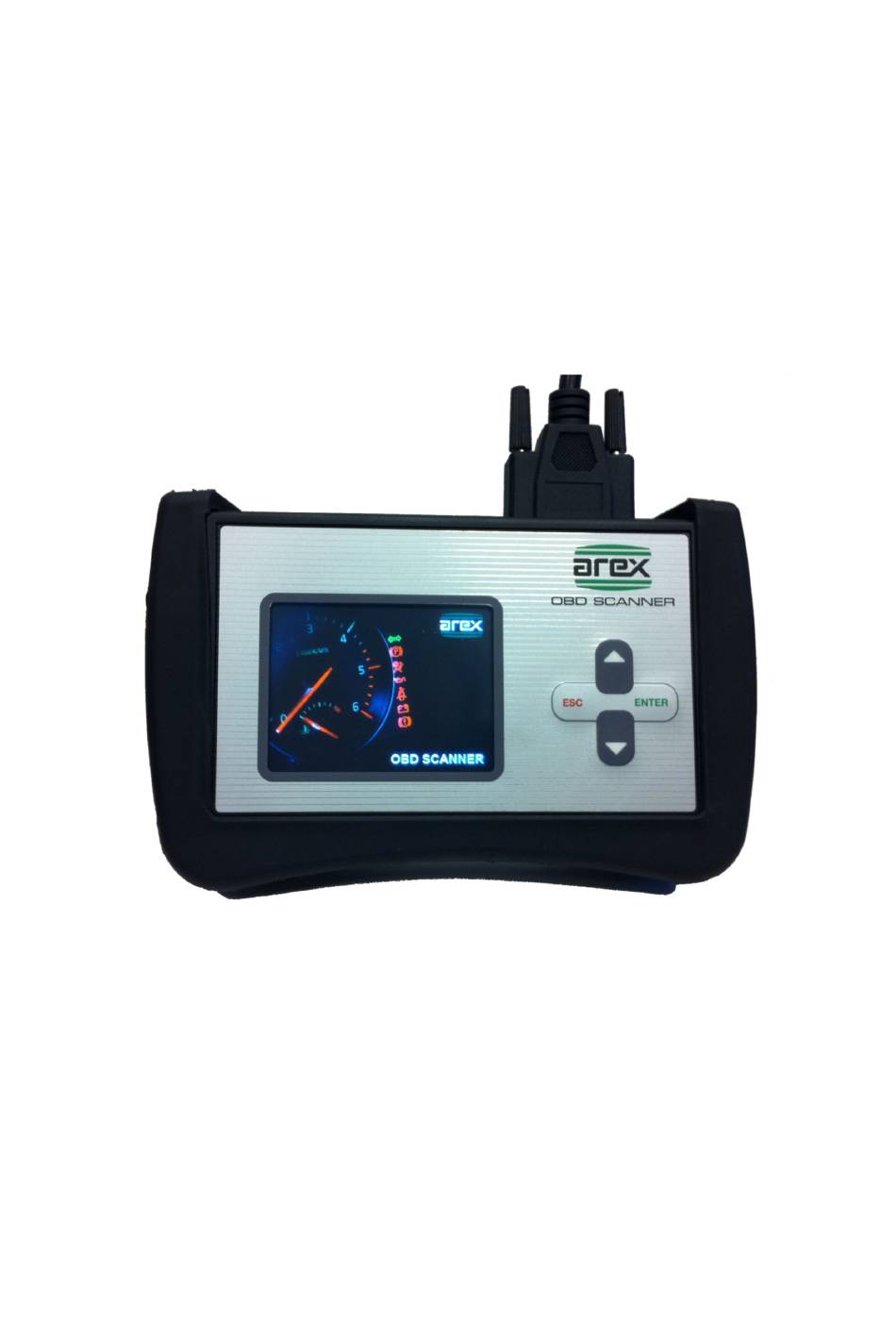

- Page 1 User’s Manual AREX OBD-scanner...
- Page 2 All efforts have been made to ensure the accuracy of this manual. However, should any errors be detected, AREX would greatly appreciate being informed of them. The above not withstanding, AREX cannot assume any responsibility for any errors in this manual or their consequences.
- Page 3 Datum: 12 feb 2014 Software versie: V1.00 USERS MANUAL AREX OBD SCANNER...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ............................. 5 2. OBD FOR INSPECTION ..........................5 3. OBD PROCEDURE ............................5 4. OBD-SCANNER MENU ..........................7 APPENDIX: FLOW CHART USERS MANUAL AREX OBD SCANNER... -
Page 5: Introduction
For vehicles with a first registration date of 2006 the emissions test remains unchanged. 3. OBD Procedure The Arex OBD scanner meets the requirements set by the RDW. The readout of the EOBD is done through an ISO 15031-3 connector (16-pin plug) and supports the following protocols: ISO 9141-2, SAE J1850 PWM, SAE J1850 VPW, ISO/DIS 14230-4 KWP, ISO/DIS 15765-4 CAN. - Page 6 P0AXX P0AXX USERS MANUAL AREX OBD SCANNER...
-
Page 7: Obd-Scanner Menu
Besides reading the error codes and the MIL status, must be considered whether the Readiness tests have been completed. If this is not the case, a normal exhaust gas measurement is to be carried out. 4. OBD-scanner menu The menu of the OBD scanner looks as follows: Start inspection Erase error codes Live data... - Page 8 If the error codes are cleared, the Readiness is also cleared and all tests will have to be done again before it is will indicate 'Ready'. USERS MANUAL AREX OBD SCANNER...
-
Page 9: Appendix: Flow Chart
APPENDIX: FLOW CHART USERS MANUAL AREX OBD SCANNER... - Page 10 USERS MANUAL AREX OBD SCANNER...
