- Page 1 M O L E o p e r a t i n g m a n u a l...
-
Page 2: Table Of Contents
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE Contents T E C H N I C A L D E S C R I P T I O N 1. Introduction 2. Application 3. Technical specification 4. Complete set 5. Case for transportation and storage 6. -
Page 3: Introduction

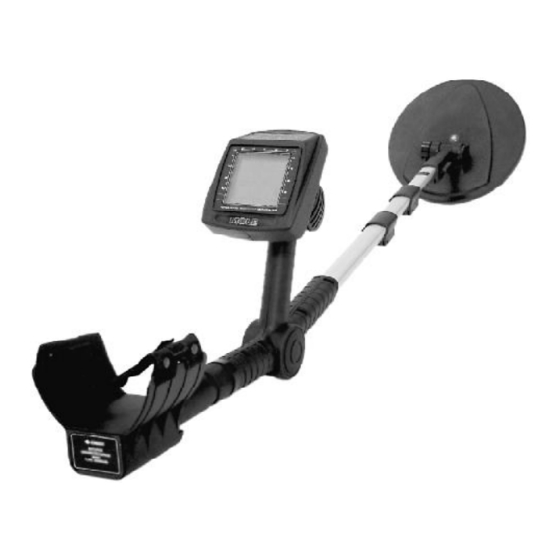

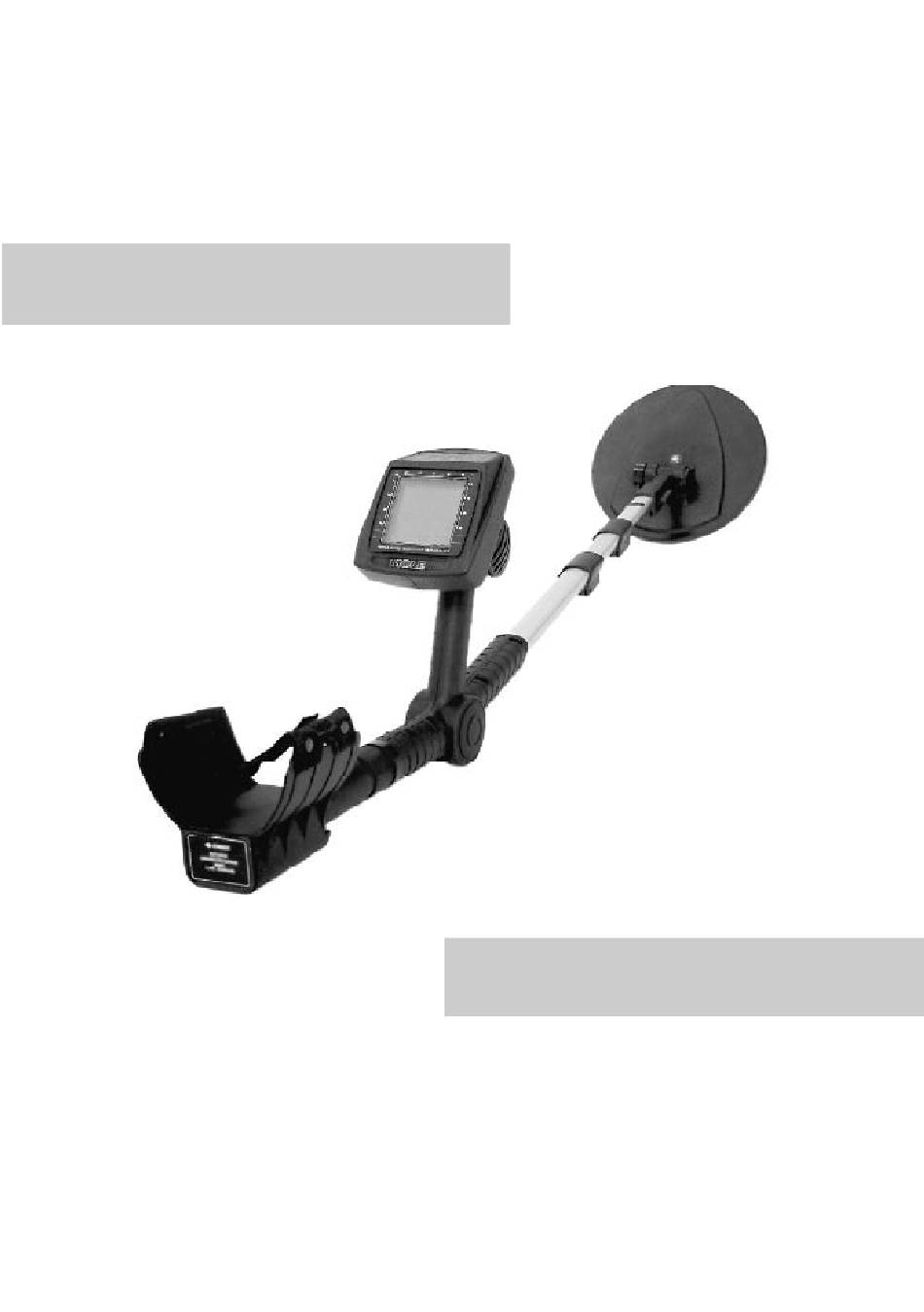

MOLE is a portable device for distance metal detection, operating under the Application “transmission - reception” principle. The device is intended for searching and... -
Page 4: Technical Specification
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE T E C H N I C A L D E S C R I P T I O N There are 2 operating modes in the device: standard and special, selecting of operating mode depends on operator’s skill. -
Page 5: Complete Set
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE T E C H N I C A L D E S C R I P T I O N The complete set of MOLE consists of the following components Complete set 1) Electronic unit with handle and telescopic bar;... -
Page 6: Case For Transportation And Storage
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE T E C H N I C A L D E S C R I P T I O N Case for transportation and storage is a plastic case with protective layer and fixing clasps. The case is intended for... -
Page 7: O P E R A T I N G M A N U A L
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L In MOLE operating manual there is an information, necessary for its proper exploitation (operation, technical Introduction maintenance, transportation). Operation rules cover the total period of the device exploitation. - Page 8 PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L Graphical LCD is located at the front panel of the device; along the perimeter of LCD there is a scale, which allows to evaluate the type, dimensions and location of the objects relative to the search head.
- Page 9 PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L detect ground discontinuities, the device should be switched to appropriate mode (fig. 11) with the help of the «MODE» button.
- Page 10 PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L four (MIN, NOM, MAX, AUTO) levels of sensitivity to ground discontinuity. Next pressing the «MENU» button causes «Backlight off»...
-
Page 11: Preperation For Operation
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L LCD one of four (MIN, NOM, MAX, AUTO) levels of sensitivity to ground discontinuity is indicated. At the right upper corner of LCD in hodograph... -
Page 12: Operation With The Device
Operation MOLE device is operated by single operator, who has passed special training. with the Minimal allowable distance between neighboring operating de- vices should be more than 3 meters (while their operating at maximum device frequency separation). -
Page 13: Additional Capabilities Of The Device
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L Ground level is conditionally shown by the dash line at the LCD upper part. The presence of discontinuities (cavi- ties or nonconductive objects) at the surface ground level is shown by the curving line (fig. - Page 14 PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L Detection of one and the same object can be indicated in various ways and depends on the orientation of the object and the direction from which fig.37...
-
Page 15: Troubleshooting
During the whole exploitation period the technical maintenance of MOLE device should be carried out in accordance with the present operating manual Technical requirements. maintenance Technical maintenance of the device presupposes... -
Page 16: Transportation And Storage
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L During the control examination it is necessary to check the following: 1).Availability, fixing and laying of the components from the device complete set;... -
Page 17: Instructions For Operating With The Charger
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L It is prohibited to use the charger outside the pre- mises/cars. Instructions for The charger has a visual indicator of supply (gree... - Page 18 PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE O P E R A T I N G M A N U A L In case of absence of LEDs glow- ATTENTION! ing at the charger corpus, discon- nect the charger from the main...
-
Page 19: Warranty
PORTABLE SELECTIVE MICROPROCESSOR METAL DETECTOR MOLE Non-failure operation of the device under the proper handling is guaranteed by the Manufacturer Warranty during the period of 12 months from the delivery date. During that period, repair and replacement of defective and faulty devices will be provided, if necessary, at the Manufacturer’s own expenses, and...
