Summary of Contents for Agrilight AGRILED 3 Series

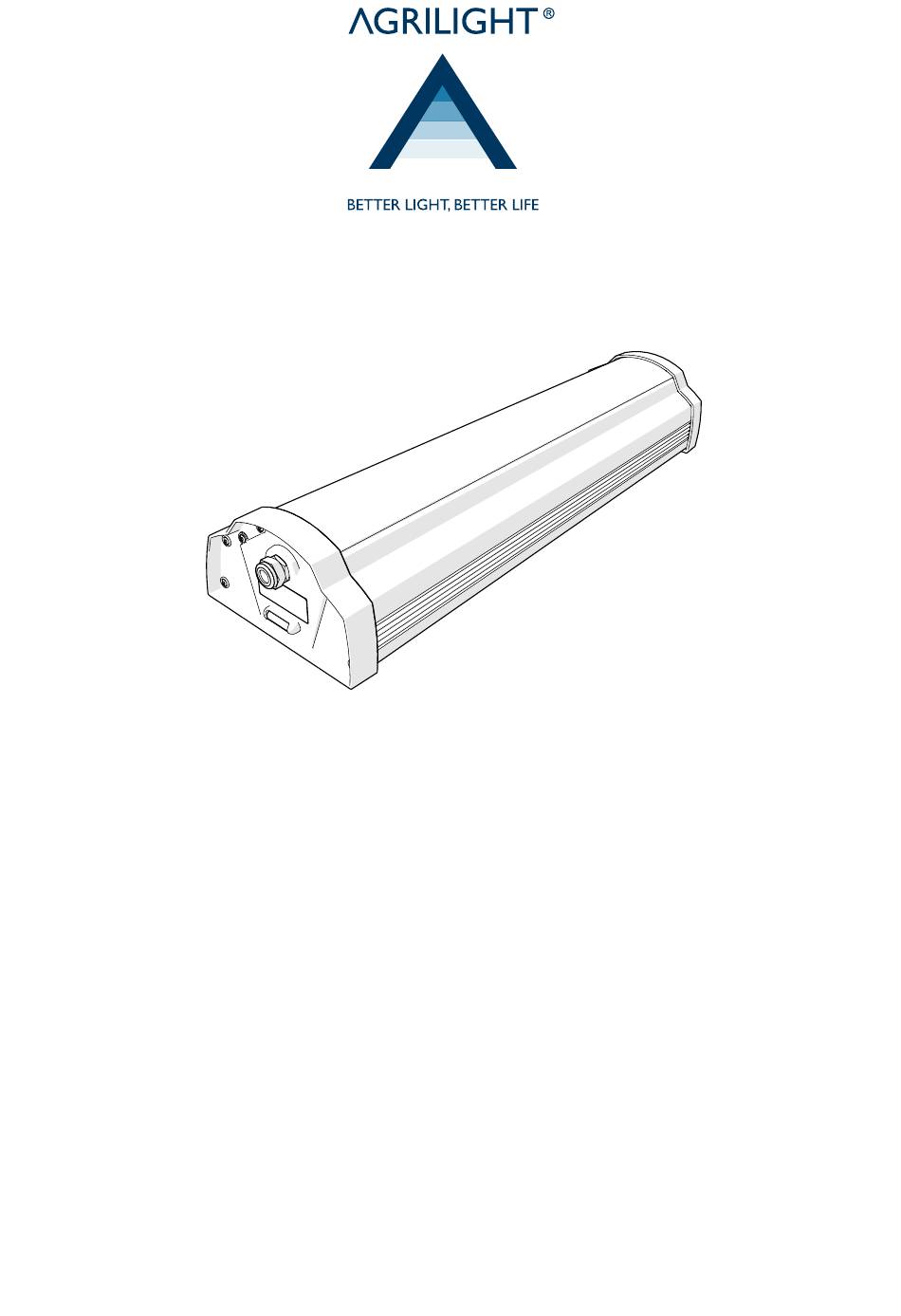

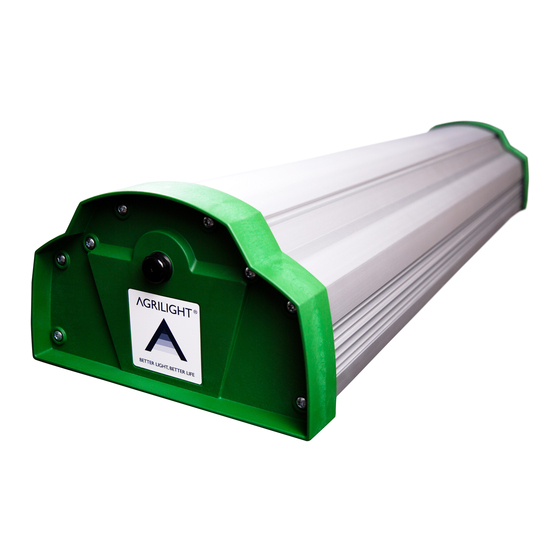

- Page 1 AGRILED 3 Series ® Luminaire Installation and user manual Original manual V1.0 © Agrilight b.v. 2020...
- Page 2 Agrilight b.v. accepts no liability for damage and/or problems arising from the use of spare parts not supplied by Agrilight b.v.. This manual has been compiled with all possible care. Agrilight b.v. assumes no responsibility for any errors in this manual and/or the consequences of an erroneous interpretation of the instructions.
-
Page 3: Preface
The registration sticker is attached to the AGRILED 3 Series luminaire. Always include the type number of your luminaire when you contact your local Agrilight dealer or order spare parts. Additionally, this information can be found on the registration sticker:... -
Page 4: Manufacturer Details
Should you discover any errors or omissions, please bring this to the attention of Agrilight b.v., so that we can make amendments. This will enable us to improve our documentation. -
Page 5: Symbols Used
Symbols used The following marking conventions are used in this manual and on the luminaire to draw attention to specific topics or actions: Warns of a situation that could result in death or serious physical injury and/or may cause material damage if one does not obey the safety instructions. Warns of a situation that could result in minor or moderate physical injury and/or may cause material damage if one does not follow the safety instructions. -
Page 6: Liability
During the lifetime of the AGRILED 3 Series, engineering improvements may result in the need to revise this manual. It is then at the discretion of Agrilight b.v., if a revision/new version of this manual is required. The following table describes the main changes for each document version of this manual. -
Page 7: Table Of Contents
5.2 Electrical installation......................16 6 Commissioning........................... 19 7 Operation............................. 20 7.1 Operating the luminaire......................20 8 Maintenance..........................21 8.1 Cleaning..........................21 9 Troubleshooting.......................... 22 9.1 Questions and Answers......................22 9.2 Repair procedures........................ 22 10 Disposal............................. 25 11 Declaration of Conformity....................... 26 AGRILIGHT B.V. Contents... -
Page 8: Introduction
3 Series is intended as a luminaire for lighting livestock and agricultural buildings and halls. Any use other than the approved intended use described above is considered unintended use. Agrilight b.v. cannot be held responsible for possible (consequential) damage caused by improper, incorrect or inadvisable use. ®... -
Page 9: Description
220-240V AC, 50 / 60Hz Input current 1,05A 0,53A Red LED 0,03A 0,03A current White LED 240W +/- 5% 140W +/- 5% power Red LED power Power factor > 0,98 Dimmable Yes (DALI) Photo biological safety IP/IK rating IP65 / IK08 AGRILIGHT B.V. Description... -
Page 10: Dimensions
925 × 230 × 150mm box (L × W × Weight 8,3 kg 8,3 kg 8,1 kg 8,1 kg 7,9 kg Lifetime 100.000 L90 B50 Warranty 5 years 3 years Dimensions Dimensions of the luminaire: Length: 805mm Width: 214mm Height: 130mm AGRILIGHT B.V. Description... -
Page 11: Safety
• The end user is responsible for the proper installation and product use. An incorrect installation may result in product damage or shortcomings. The warranty will become void, if the product and/or electronic components are damaged due to an incorrect installation. AGRILIGHT B.V. Safety... -
Page 12: Transport And Storage
Always transport the luminaire with care, in its original packaging which is delivered with the product. If the product is to be stored, it must be kept in a dry, clean environment with an ambient temperature between 0°C and 40°C. AGRILIGHT B.V. Transport and storage... -
Page 13: Installation
The luminaire can be mounted in two different ways: With a roof bracket system With a suspension system Choose the correct mounting method for your situation. Both mounting systems must be ordered separately from Agrilight. Disconnect the power. AGRILIGHT B.V. Installation... - Page 14 1. Remove the luminaire and brackets from the protective packaging. 2. Mount the two sets of brackets on the luminaire and slide the brackets together. Keep a distance of 550 mm between the two sets. AGRILIGHT B.V. Installation...
- Page 15 Mount the mounting strips to the brackets and tighten the bolts and nuts. b. Mount the roof bracket to the roof or ceiling. c. Mount the luminaire with strips to the roof bracket and tighten the bolts and nuts. AGRILIGHT B.V. Installation...
-
Page 16: Electrical Installation
If necessary, connect two mounting strips together, using two extra sets of bolts, nuts and washers (not provided): Electrical installation To prevent water ingress, make sure there is a loop in the cable, as shown in the image below: AGRILIGHT B.V. Installation... - Page 17 Wire Wire colour Phase Brown Earth connection Yellow/green Neutral Blue ® ® Cable for AGRILED 3 and AGRILED 3 pro: Function Wire Wire colour Phase Brown Earth connection Yellow/green Neutral Blue DALI + Black DALI - Grey AGRILIGHT B.V. Installation...
- Page 18 The wire functions are indicated on the wires. Connections LED Function Connector Wire colour White led + White White Led - Blue Red LED + Red Led - Black The number of wires depends on the type of luminaire. AGRILIGHT B.V. Installation...
-
Page 19: Commissioning
Commissioning When all cables are connected, switch on the power supply. Consult the DALI controller manual for information about operating the luminaire. AGRILIGHT B.V. Commissioning... -
Page 20: Operation
Operating the luminaire • The power supply 230V must be connected. • The light level (1-100%) can be adjusted using a DALI controller. • If no DALI controller is connected, the luminaire will switch on at 100%. AGRILIGHT B.V. Operation... -
Page 21: Maintenance
Contamination can lead to overheating and reduce the lifetime of the luminaire. Clean the luminaire with a dry or slightly damp cloth to keep the best light performance and lifetime. Never clean the luminaire with corrosive cleaning agents, abrasives or other aggressive liquids. AGRILIGHT B.V. Maintenance... -
Page 22: Troubleshooting
If all above does not help, contact your Agrilight dealer. Repair procedures When the luminaire does not function properly, please contact your Agrilight dealer. If necessary, the gear tray can be replaced by an installer. Follow these steps to replace the gear tray. - Page 23 The screws may fall out of the end cap. Store the screws in a safe place. 3. Remove the end cap from the luminaire. 4. Slide out the gear tray for 150mm and disconnect the LED wires from (A) and the power supply cable from (B). 5. Remove the gear tray completely. AGRILIGHT B.V. Troubleshooting...
- Page 24 Reconnect the power supply cable to (B). Refer to Electrical installation on page 16 Make sure you do not forget the earth connection. If the luminaire does not work correctly after replacing the gear tray, contact your Agrilight dealer.
-
Page 25: Disposal
WEEE directive, require special reuse and recycling processing. For this reason, Agrilight has arranged that this product can be recycled at the local recycling/ disposal companies to collect and recycle this product at no cost to you. Additional local legislation may apply. -
Page 26: Declaration Of Conformity
Declaration of Conformity AGRILIGHT B.V. Declaration of Conformity... - Page 27 Agrilight b.v. Vlotlaan 643 2681 TZ Monster The Netherlands +31 (0)174 287 287 www.agrilight.com info@agrilight.com...
