1
Setup and run EasyReport program
2
Connect via USB SE/DE collector to the PC with EasyReport
program running. Wait for approximately 1 minute so collector
would be able to get time synchronization.
3
Pair sensors with the collector:
3.1
Insert the batteries into the sensors,
observing polarity.
3.2
Press the button inside the counter
as it is shown on the picture,
during next 10 seconds do the step 3.3
3.3
Point the collector to the counter
and press "READ" button
Please disconnect the collector
NOTE
from USB before reading sensor
4
Sensor mounting:
4.1
To acquire the best counting precision we highly recommend
to follow this mounting scheme
Notice, if you are using bi-directional sensors (DE model),
4.2
then by default outgoing visitors refers to DirA, but incoming to DirB.
POINTING OUTSIDE THE SHOP
SensMax SE/DE quick start user guide
USB
1.5m
DirA
Dir B
www.sensmax.eu
POINTING INSIDE THE SHOP
Advertisement
Table of Contents

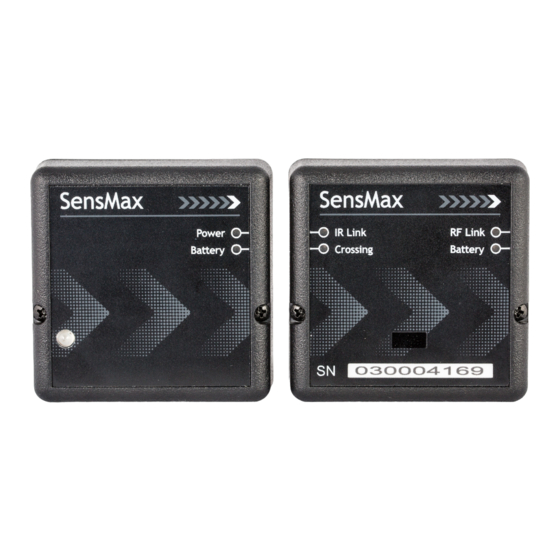

Summary of Contents for SensMax SE
- Page 1 SensMax SE/DE quick start user guide Setup and run EasyReport program Connect via USB SE/DE collector to the PC with EasyReport program running. Wait for approximately 1 minute so collector would be able to get time synchronization. Pair sensors with the collector: Insert the batteries into the sensors, observing polarity.
- Page 2 After some crossings have been made, you can collect rst data from counters and transfer to EasyReport program: Read data from counters Connect via USB data collector to your PC Press “Download from collector” in EasyReport program SensMax SensMax FILE COUNTERS CASH REGISTER...
