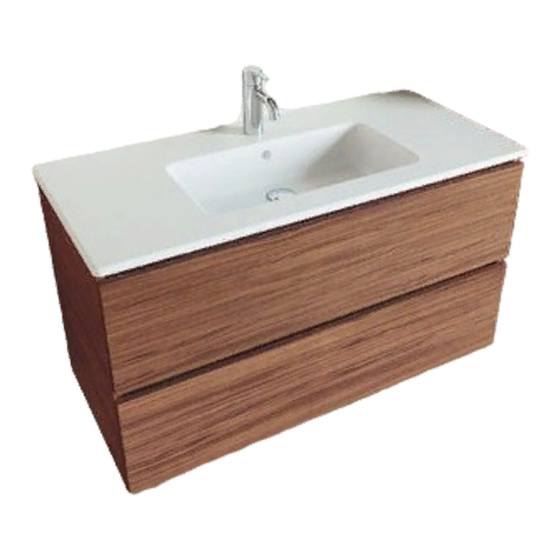

Spring Under Basin Cabinet Installatiehandleiding | Installation manual | Manuel d’installation | Montageanleitung | Návod k instalaci | Instrukcja instalacji | Telepítési kézikönyv | Руководство по установке...
Page 3
IF00418.0 Supply and discharge dimensions (mm) Spring Glow 1200 600/800/1000 Spring Rise 1000/1200 600/800/1000 500/600 Spring Vow 1000/1200 600/800/1000 500/600...
Page 4
IF00418.0 Supply and discharge dimensions (mm) Spring Dew 600/800/1000 1200 Spring Blush 600/800/1000/1200...
Page 5
IF00418.0 Under Basin Cabinet 2. Measure and mark holes 1. Check supply & discharge dimensions for attaching wall brackets Page 3 & 4 W-60 3. Drill holes and insert wall plugs H = Height Washbasin W = Width Under Basin Cabinet 4.
Page 6
IF00418.0 Under Basin Cabinet 9. Mark holes for safety pins 10. Unmount cabinet from wall 12. Mount under basin cabinet back on wall 11. Drill the two holes and insert wall plugs Ø8 13. Screw in safety pins 14. Check level & attach slide over bracket covers 15.
Page 7
IF00418.0 Under Basin Cabinet 16. Attach drawer system cover 17. Place washbasin & seal 18. Finish off sealing 19. Attach pop-up & siphon Only for washbasin with overflow...
