GENERAL SPECIFICATION

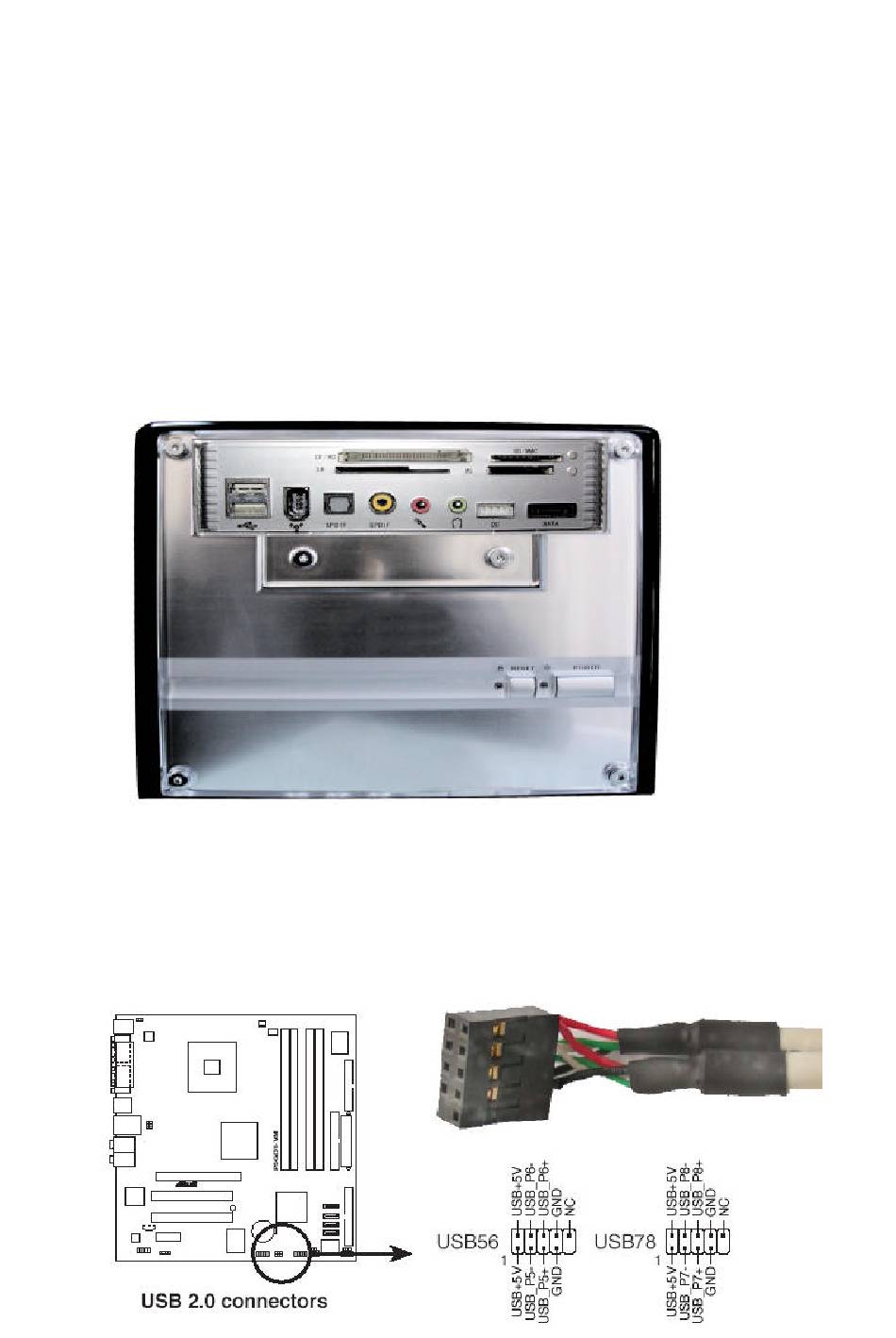

Front panel I/O BOX with its connected cables
INSTALLATION:
A. Make sure the computer Power is off after shut down the computer and open the
cover of the computer;
B. Remove the 5.25"plastic cover from the computer where is the free bay you want
to install;
C. Install the transfer board to the empty bay,fix it by screws.
D. Connect the cables attached to the BOX to the correct pins where on the Mother
board when the BOX is installed:
1. USB Port
Take the USB module cable to the USB 2.0 connectors which on the Monther board
User's Manual
Advertisement
Table of Contents
Summary of Contents for Connectland Front panel I/O Box
- Page 1 User’s Manual GENERAL SPECIFICATION Front panel I/O BOX with its connected cables INSTALLATION: A. Make sure the computer Power is off after shut down the computer and open the cover of the computer; B. Remove the 5.25"plastic cover from the computer where is the free bay you want to install;...
- Page 2 2.Audio Port Take Audio module cable to the legacy AC'97 Audio pinheader where on the Monther board; 3.1394 Port Take the 1394 cable to the 1394 Port where on the Monther board and Make sure the housing which connect to the 1394 Pins define is correct; 4.SPDIF_OUT Connect the S/PDIF module cable to the S/PDIF connector which on the Monther board...
- Page 3 5.Serial ATA Port First Make sure the 4-pin power cable that from Power supply is connector to the correct location of the I/O board.And then take the Serial ATA signal cable connect to the Serial ATA port on the Monther board. 6.Card Reader Take the 5-pin USB signal cable connect from CN1 location of the Card reader PCB to the another USB port where on the Monther board.
- Page 4 Front panel I/O Box Connectors 1.USB 2.0 Port These two 4-pin Universal Serial Bus ports are available for connecting USB2.0 devices. 2.IEEE 1394 This 6-pin fire wire are connecting IEEE1394 device. 3.SM Connector This port is use for connecting memory SM card 4.CF/MD Connector This port is use for connecting memory CF or MD...
- Page 5 6.MS Connector This port is use for connecting memory MS card 7.8.S/PDIF digital sound Connector The technology turns your computer into a heigh-end entertainment system with digital connectivity to powerful audio and speaker systems. 9.Microphone Connector This port connects a microphone 10.LINE -OUT Connector This port connects a headphone or a speaker 11.DC Power Connector This 4-pin Wafer is use for supply SATA Power +12V or +5V...
- Page 7 BIOS setup program...
