ASSAMBLY INSTRUCTIONS

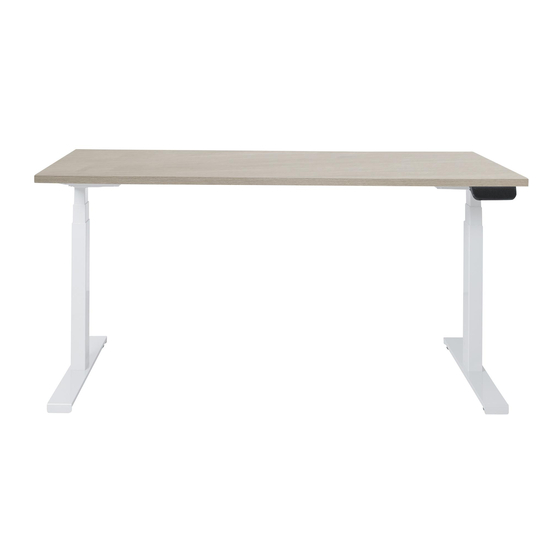

DEXTRO PLUS
F A M I L Y O W N E D
• NOTE: All our desktops have a standard
hole pattern to mount all our furniture
lines. However, you only need 4 inserts
to mount the top to the base. These
show themselves when you place the
sheet on the frame. The other inserts
in the frame are fixed with the supplied
wood screws.
WARNING: FAILURE TO COMPLY WITH OR OBSERVE
ALL ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS
PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.
Important information
Read the entire instruction manual before you
can start installation and assembly.
This product is not intended for use by young childeren without
supervision.
This product is intended for indoor use only. Using this product
outdoors could lead to product faillure and personal injury.
Important: Ensure that you have received all parts according
to the component checklist prior to installation. If any parts are
missing or faulty, telephoneyour local distributor for a replacement.
Do not stand on this product, do not use this desk as a step
ladder.
Do not use this product unless all bolts, screws and knobs are
properly tightened. Failure to heed these warnings could result
in serious injury.
COMPONENTS
B(x1)
Control unit
A(x1)
C(x1)
Telescopic crossbar
Shelf
D(x2)
Side bracket
E(x2)
Foot
G(x2) F(x1)
Hook Fixing plate
J(x1)
I(x1)
H(x2)
Control panel
Adapter
Lifting
column
S-C (x2) S-D(x6)
S-A (x20) S-B (x10)
S-F (x8)
S-E (x3)
Rubber pad
Allen key Cable clip
1- Assembling the frame
• Attach the two side brackets
to the two ends of the frame
using four screws as shown
and tighten all screws with an
Allen key.
• Remove the protective films from the
adhesive rubber pads.
• Stick the rubber pads to the frame.
2- Assamble tabletop
• Put the frame on the tabletop
• Loosen the eight screws using
the Allen key.
• Adjust the frame lenght to suit
the desktop.
• Retighten all screws to secure.
• The inserts are already in the
desktop. The are more inserts
than needed because the tabletop
is used for multiple desks.
• Fasten the blade and frame with the
supplied screws.
S-D
