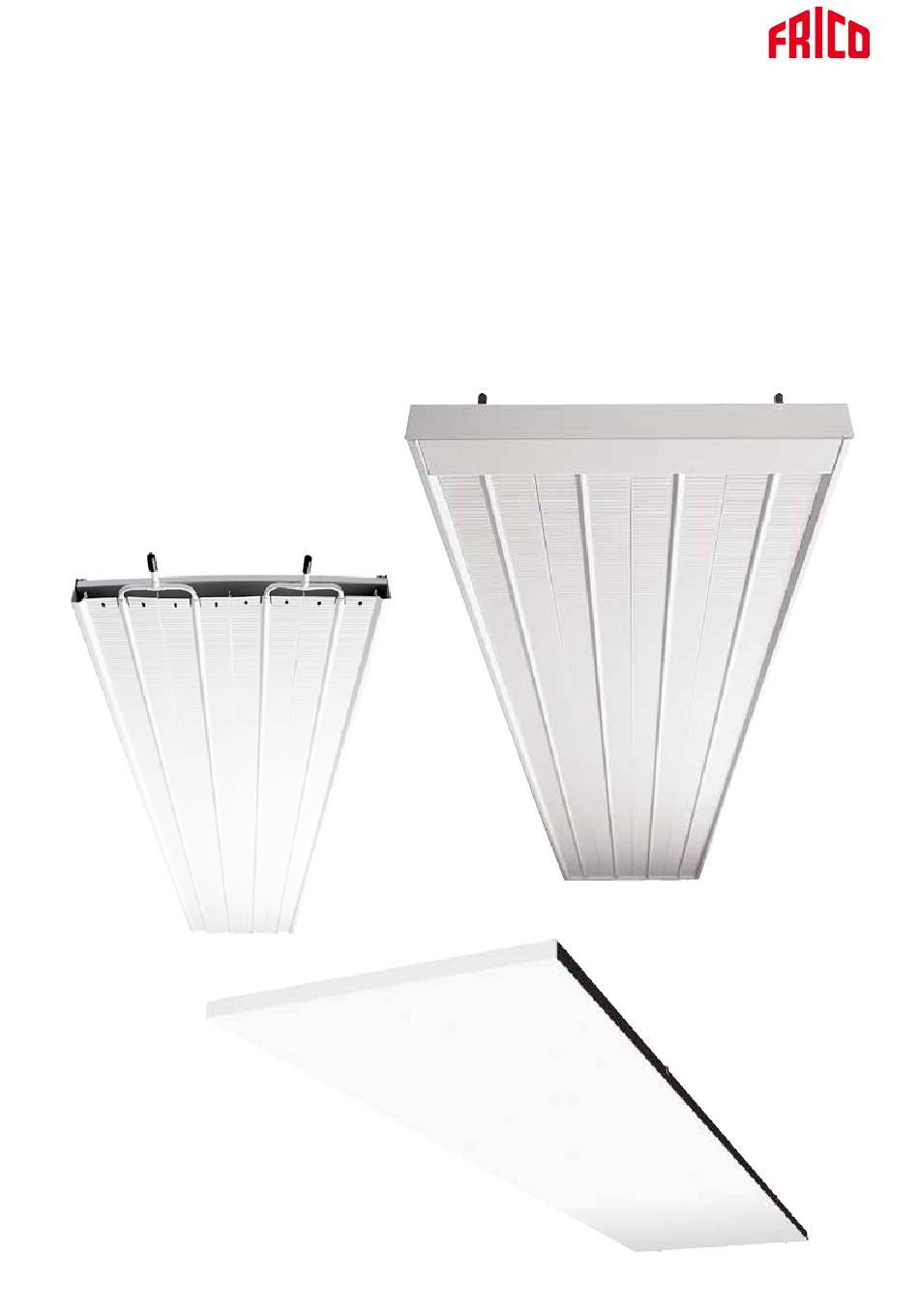

- Page 1 Original instructions Aquaztrip H, L, P Service & maintenance...
-
Page 2: Service And Maintenance

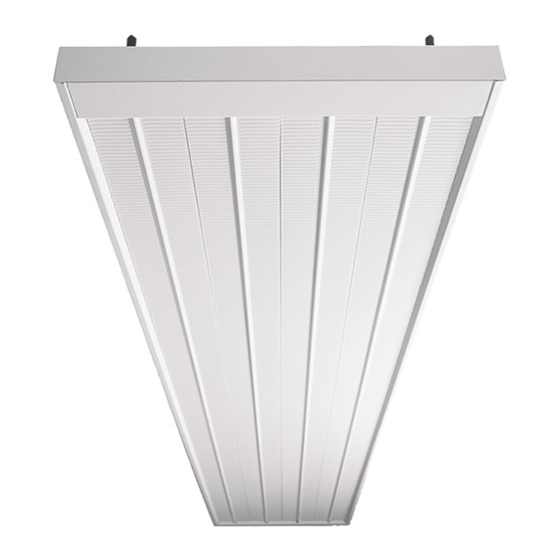

1.0 Installation 1.1 Product description Frico’s heating panels Aquaztrip can be mounted recessed in a false ceiling, with suspended mouting or on a wall and primarily provide heating by radiation. Radiant heating can also be used with high ceiling heights since the radiant heating, despite the high placement, heats the underlying surfaces directly without any losses to the air. - Page 3 Aquaztrip H, L, P Service & maintenance 1.4.1 When using push-on fittings – Please ensure that all pipes and fittings are undamaged, as even small dents and scratches potentially pose a risk of leakage in the system. Always remember to do a pressure test after assembly of the pipe work.
- Page 4 Aquaztrip H, L, P Service & maintenance When using push-on valve Notice! The connection pipes are internally soft-welded why it’s not allowed to solder the panel to the pipes. 1.4.2 Compression fitting – Please ensure that all pipes and fittings are undamaged, as even small dents and scratches potentially pose a risk of leakage in the system.
- Page 5 Aquaztrip H, L, P Service & maintenance When using compression coupling / valve on pipe – The copper insert should be placed inside the pipe on the panel. Always support the connecting pipe when inserting the copper insert into position.
- Page 6 Aquaztrip H, L, P Service & maintenance When using push-on valve After removing the protection cover, make sure that the pipe is intact and undam- aged, especially at the pipe end. Crocked or in other ways imperfect pipe ends will result in leaks.
- Page 7 Aquaztrip H, L, P Service & maintenance 2.0 Commissioning 2.1 Product labeling Label location exterior (On insulation, above water connection) Label location interior (Under insulation, above water connection). On the label you’ll find: – Order: Order identification number. – Product: Product configuration.
- Page 8 Aquaztrip H, L, P Service & maintenance 3.0 Maintenance The interval of cleaning depends on the indoor environment where the panel is placed. Under optimal conditions the Aquaztrip P panels only need cleaning every 5 years. 3.1 Cleaning instructions –...
- Page 9 Aquaztrip H, L, P Service & maintenance 4.4 Water quality – Maintenance of the system´s and the product´s water circuit should be handled by a specialist. – To prevent corrosion, the water circuit must be airtight. – The water system must also be equipped with aerators to remove any build-up air in the system.
- Page 10 Montageanleitungen und Telefonnummer/ E-Mail- Adressen der Ansprechpartner. www.frico.net/de Änderungen vorbehalten. Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net.
