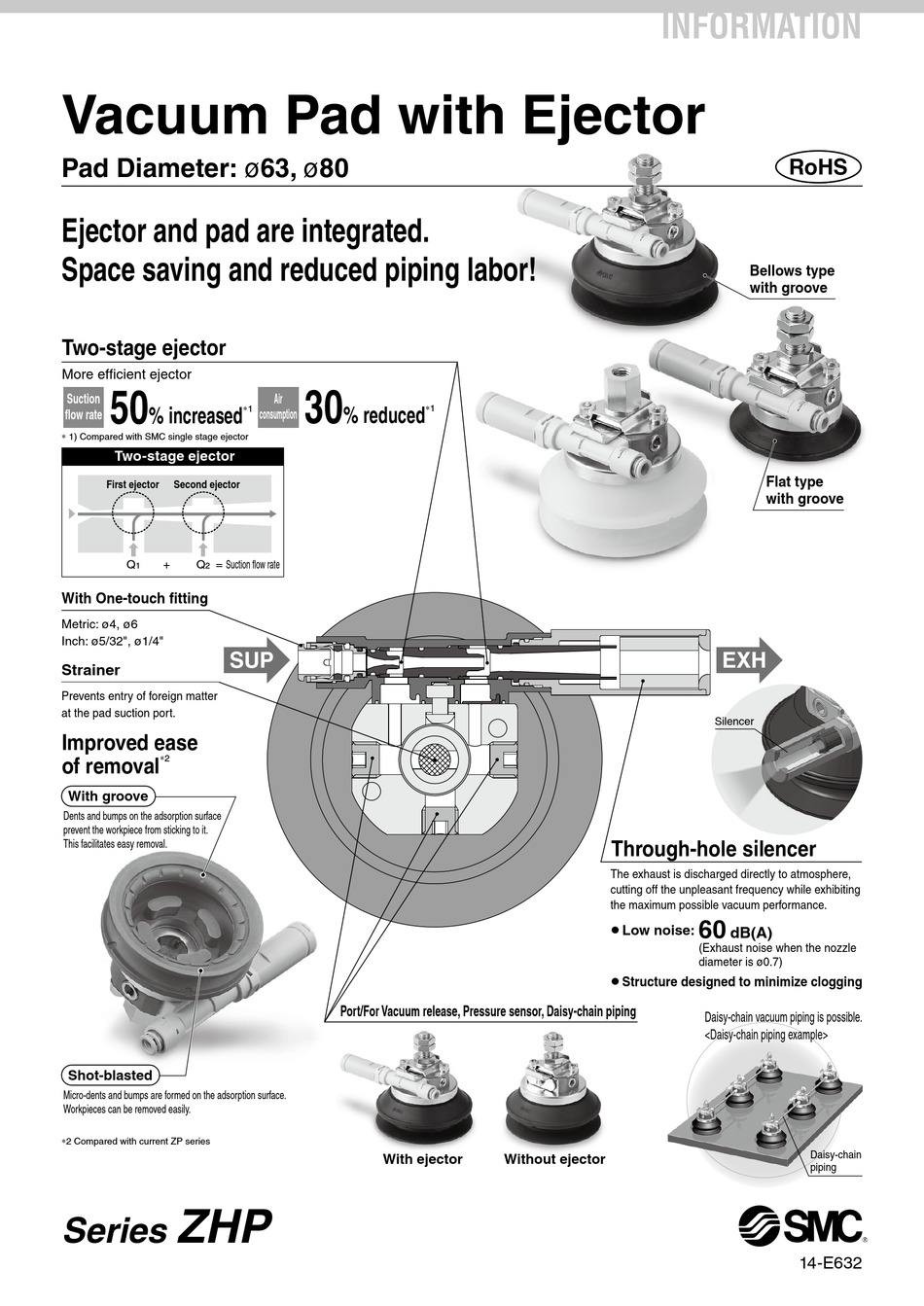

SMC Networks ZHP Series Manual

Vacuum Pad with Ejector
Pad Diameter: ø63, ø80
Ejector and pad are integrated.
Space saving and reduced piping labor!
Two-stage ejector
More efficient ejector
50
Suction
% increased
flow rate
∗ 1) Compared with SMC single stage ejector
Two-stage ejector
First ejector Second ejector
Q + Q = Suction flow rate
1 2
With One-touch fitting
Metric: ø4, ø6
Inch: ø5/32", ø1/4"
SUP
Strainer
Prevents entry of foreign matter
at the pad suction port.
Improved ease
of removal ∗2
With groove
Dents and bumps on the adsorption surface
prevent the workpiece from sticking to it.
This facilitates easy removal.
Shot-blasted
Micro-dents and bumps are formed on the adsorption surface.
Workpieces can be removed easily.
∗2 Compared with current ZP series
ZHP
Series
30
Air
% reduced
∗1
consumption
Port/For Vacuum release, Pressure sensor, Daisy-chain piping
With ejector
∗1
Without ejector
INFORMATION
Bellows type
with groove
Flat type
with groove
EXH
Silencer
Through-hole silencer
The exhaust is discharged directly to atmosphere,
cutting off the unpleasant frequency while exhibiting
the maximum possible vacuum performance.
60
¡Low noise:
dB(A)
(Exhaust noise when the nozzle
diameter is ø0.7)
¡Structure designed to minimize clogging
Daisy-chain vacuum piping is possible.
<Daisy-chain piping example>
RoHS
Daisy-chain
piping
14-E632
