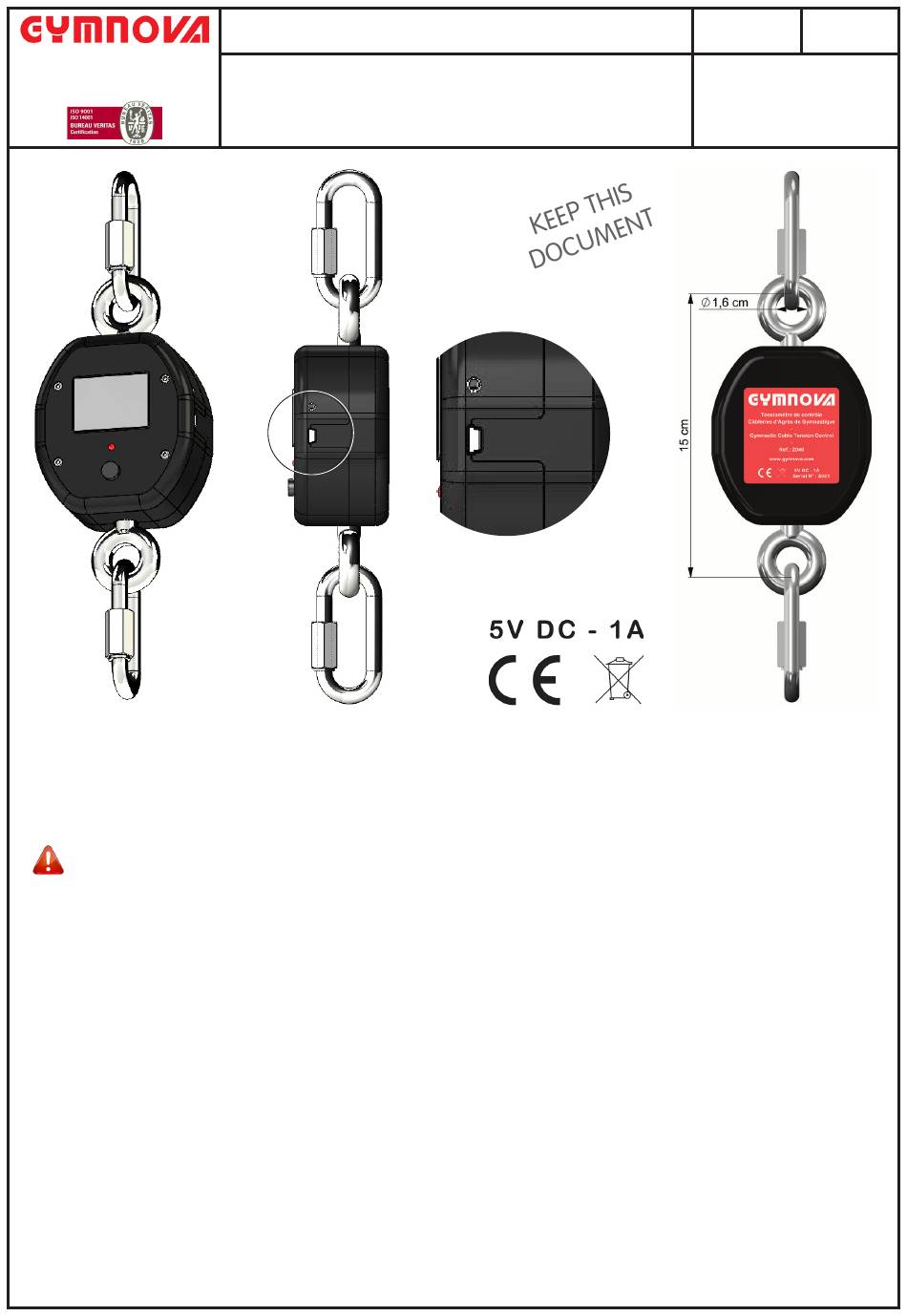

Gymnova 2040 Assembly Instructions

CS 30056 - 45 RUE G. DE FLOTTE
13375 MARSEILLE CEDEX 12 (F )
RAnCE
TEL : 33.(0).4.91.87.51.20 FAX : 33.(0).4.91.93.86.89
. .
www GyMnOvA COM
Warning:
This equipment should be installed by a qualified individual, able to assemble the apparatus and its guying. Using this
equipment for purposes other than those originally intended (cable tension measurement) is prohibited. When assembly as
been done correctly, the device can be used by fitters, gymnasts, trainers and judges.
IMPORTANT: The device should be assembled on cables with maximum used tension of 10000N.
If capacity is exceeded, the tensiometer displays « Overload » instead of the cable voltage
measurement.
ATTENTION: The device should be only charged with USB charger (4) (supplied with its cable (5)), with 5V DC
output maximum voltage
imperatively SELV type (Safety Extra Low Voltage) and Limited Power Sources in accordance with relating to information
processing equipment standards: «IEC60950-1:2005+/A1:2010+/A2:2013-§2.2 et 2.5» and «EN60950 1:2006+/A11:2009+/
A1:2010+/A12:2011+/A2:2013-§2.2 et 2.5».
Compliance:
This equipment complies with the requirements of the European standard EN 61326-1 of 2013 as regards Electromagnetic
compatibility (EMC) and IEC61010-1:2010+A1:2016+AC1:2019-§5 standard Safety requirements of equipment for measuring.

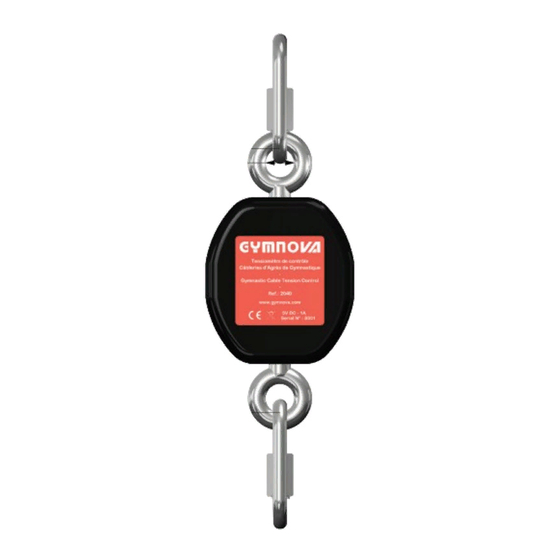

The GCTC (Gymnastic Cable Tension Control) is a mecanical tension measurement system for a gymnastics apparatus
cable, which has been designed for use in regular environment, and as such is Class B for use in domestic environment.
Recommendations:
- Keep these instructions for subsequent reference (inspection, maintenance, etc.).
- Periodically carry out predictive maintenance.
- Depending on how often it is used, have the equipment serviced yearly or every few years.
Cases of use:
The tension control device is provided to be assembled on standard cable set for GYMNOVA apparatus following:
- Training and competition Asymmetric Bars Refs: 3230 - 3240 - 3270D (Cable set: 3203B).
- Training and competition High Bars Refs: 3020F - 3030 - 3120H (Cable set: 3011B).
- Competition ring frames Refs: 3700D - 3770F (Cable set: 3700/40).
Pack list:
1 Package (ref.: 2040) : Tension control device - Weight: 1.7 Kg - Dim.: 0,27 x 0,25x 0,1m - Vol. : 0,0068 m
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.
A
ssembly
G c
ymnAstIc
and deliver a current between 1 and 2A. All connected external circuits to device need to be
I
nstructIons
t c
Able ensIon ontrol
nm283-Gb 05/07/19
2040
3
