tecnoautomation

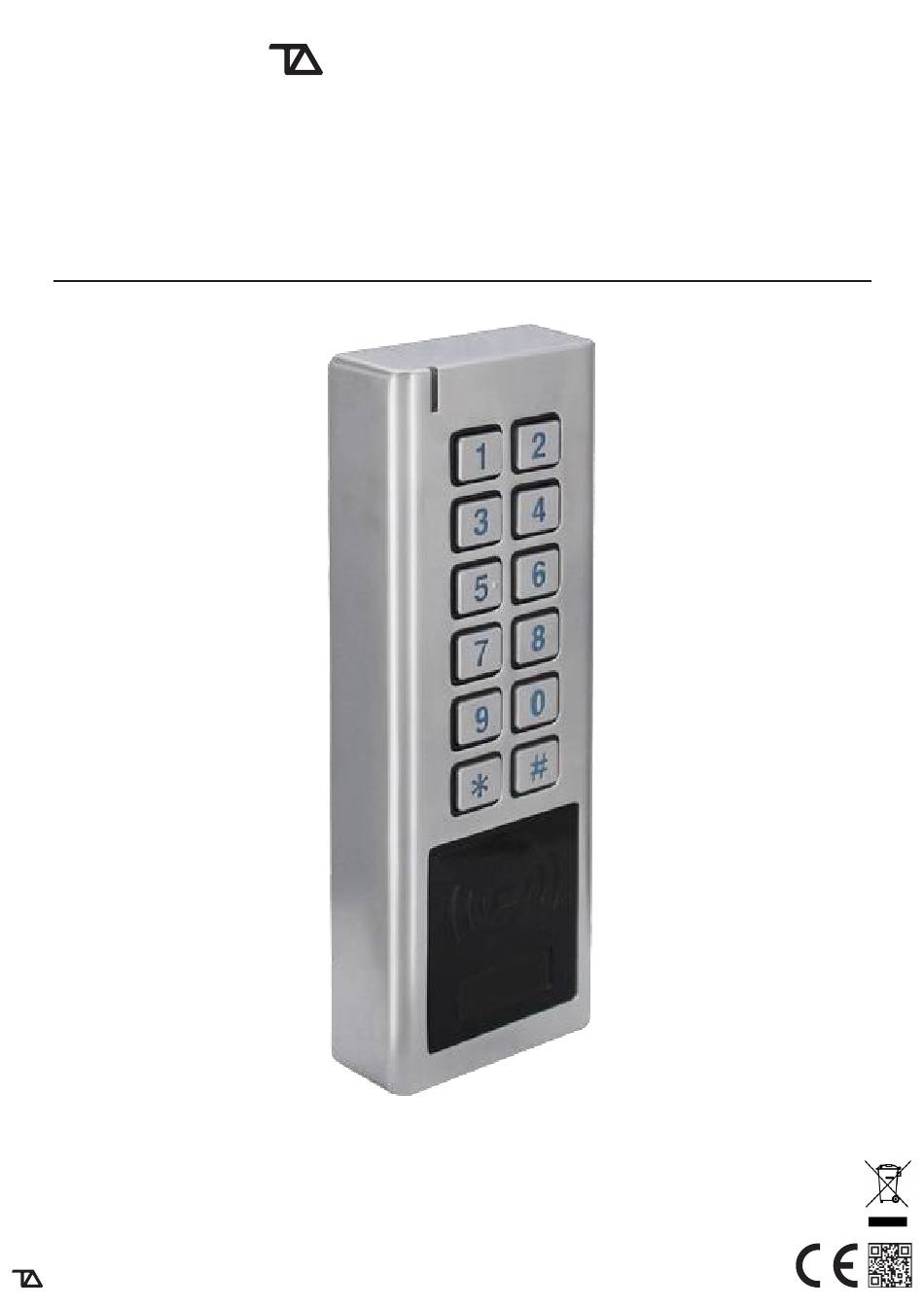

TASWD6T
User manual
ANTI - VANDALISM WIRELESS KEYPAD AND
–
CARD READER
RF
433 MHz
tecnoautomation
T.A. Tecno Automazione s.r.l. - Via Vicinale snc - 03018 - Paliano - (FR) - Italy - Tel +39 0775 533677 - Fax +39 0775 533299 - info@tecnoautomazione.com - www.tecnoautomation.com - www.tecnoautomazione.com
Advertisement
Table of Contents
Related Manuals for Tecnoautomation TASWD6T
Summary of Contents for Tecnoautomation TASWD6T
- Page 1 ANTI - VANDALISM WIRELESS KEYPAD AND – CARD READER 433 MHz tecnoautomation T.A. Tecno Automazione s.r.l. - Via Vicinale snc - 03018 - Paliano - (FR) - Italy - Tel +39 0775 533677 - Fax +39 0775 533299 - info@tecnoautomazione.com - www.tecnoautomation.com - www.tecnoautomazione.com...

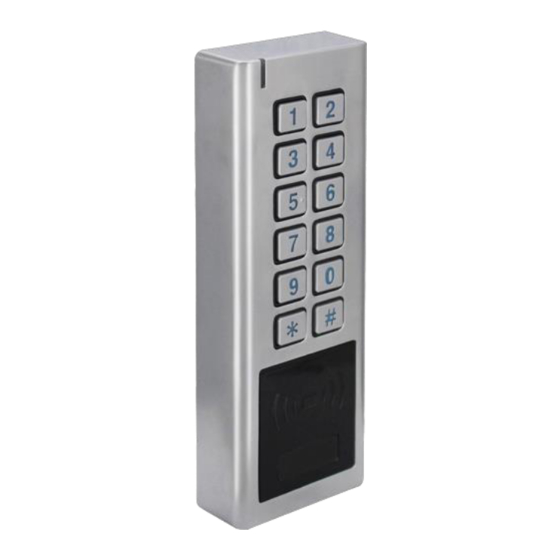

- Page 2 No informa on contained in this manual is intended to end users. Product overview The TA TASWD6T keypad and card reader / tag is an access control device, has a simple design, easy opera ons and high reliability. The internal circuit is resinated which gives it a total resistance to water (IP 66).
- Page 3 Components descrip on Installa on - Remove the back cover from the unit; - Drill 2 holes (A,C) on the wall for the screws and one hole for the cable (B); - Fix the back cover firmly on the wall with 2 flat head screws (provided); - A ach the unit to the back cover.
- Page 4 Basic setup Changing Master Code Working descrip on Keystroke combina on Entering the programming mode (Digit Master Code) Change Master Code （Digit New Master Code） （Re-Digit (Master Code is any 6-digit number) New Master Code） Exit from programming mode Add users Add card/tag by assigning a specific user ID Working descrip on Keystroke combina on...
- Page 5 Set relay opening / closing mode This func on allows you to set the device access mode. In par cular it is possible to ac vate / deac vate the output connected to the reader through the following op ons: Op on 1) with PIN code detec on only;...
- Page 6 Associa on with a 433 MHz receiver In order to configure the TASWD6T keypad to a 433 MHz receiver it is necessary to perform the following steps: • Add a user (card / tag or PIN code) on the keypad (Instruc ons on page 4);...
