Summary of Contents for JohnDow Industries JDI-6EV

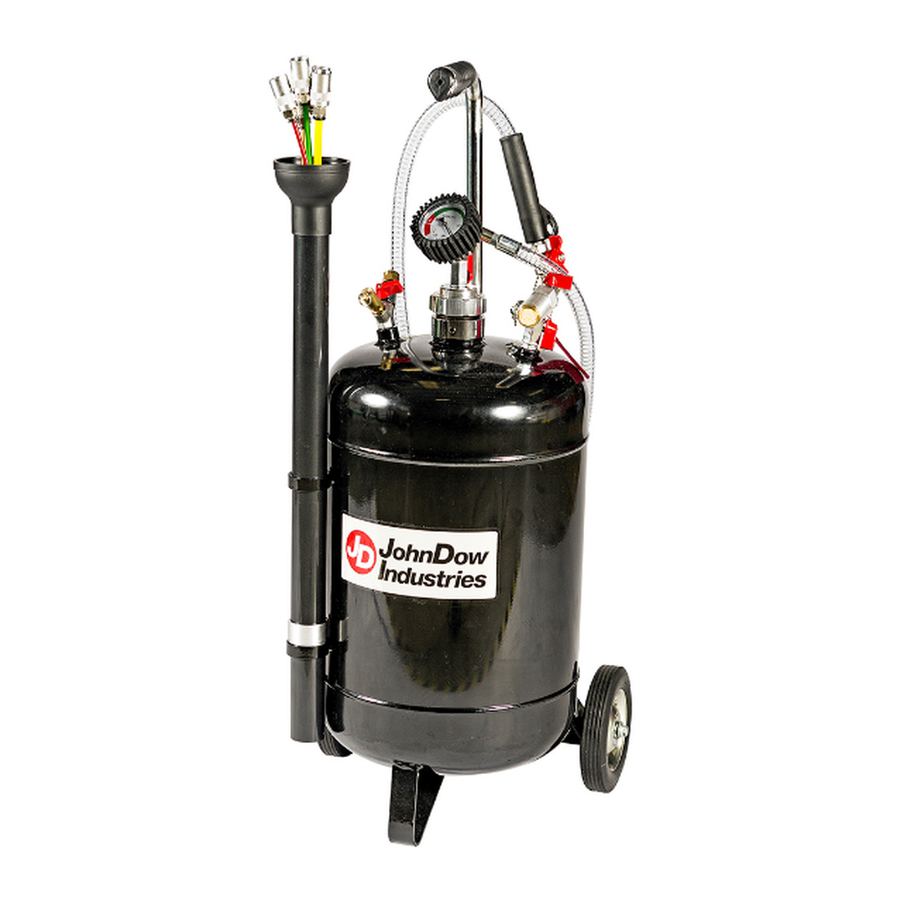

- Page 1 ™ 6 & 20-GALLON FLUID EVACUATOR AND OIL DRAINS USER’S MANUAL Part No. JDI-6EV and Part No. JDI-20EV READ AND SAVE THIS MANUAL FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM 02425 10513 151 Snyder Ave. Barberton, OH 44203 Rev 2/2021...
- Page 2 • Petroleum Distillates and Solvents • Hydraulic Oil • Vegetable or Animal Oils Cutting/Metal Oils CAPACITY AND DIMENSIONS Product Specification JDI-6EV JDI-20EV Tank Capacity 6.5 gallons (24.6 liters) 20 gallons (75.5 liters) Overall Dimensions - H x W x D (in) 35”...
- Page 3 COMPONENTS DETAIL A SCALE 1 : 2 JDI-6EV JDI-20EV Item JDI-6EV JDI-20EV Description Replacement Parts Replacement Parts Oil Drain – – Vacuum Gauge 6EV-1 6EV-1 Venturi Vacuum Generator 6EV-2 6EV-2 Suction Hose 6EV-3 6EV-3 Probe Tube 6EV-6 6EV-6 Drain Handle –...
- Page 4 TOOLS & SUPPLIES NEEDED (not included) JDI-6EV: 4mm Hex Wench JDI-20EV: 3/4” Wrench, 1/2” Wrench, Phillips Head Screwdriver ASSEMBLY INSTRUCTIONS FOR JDI-6EV 1. Place Probe Tube [5] in rings on side of Tank [1]. 2. Place Flexible Probes [10, 11, 12, 15] and Metal Probes [13, 14] in Probe Tube [5].
