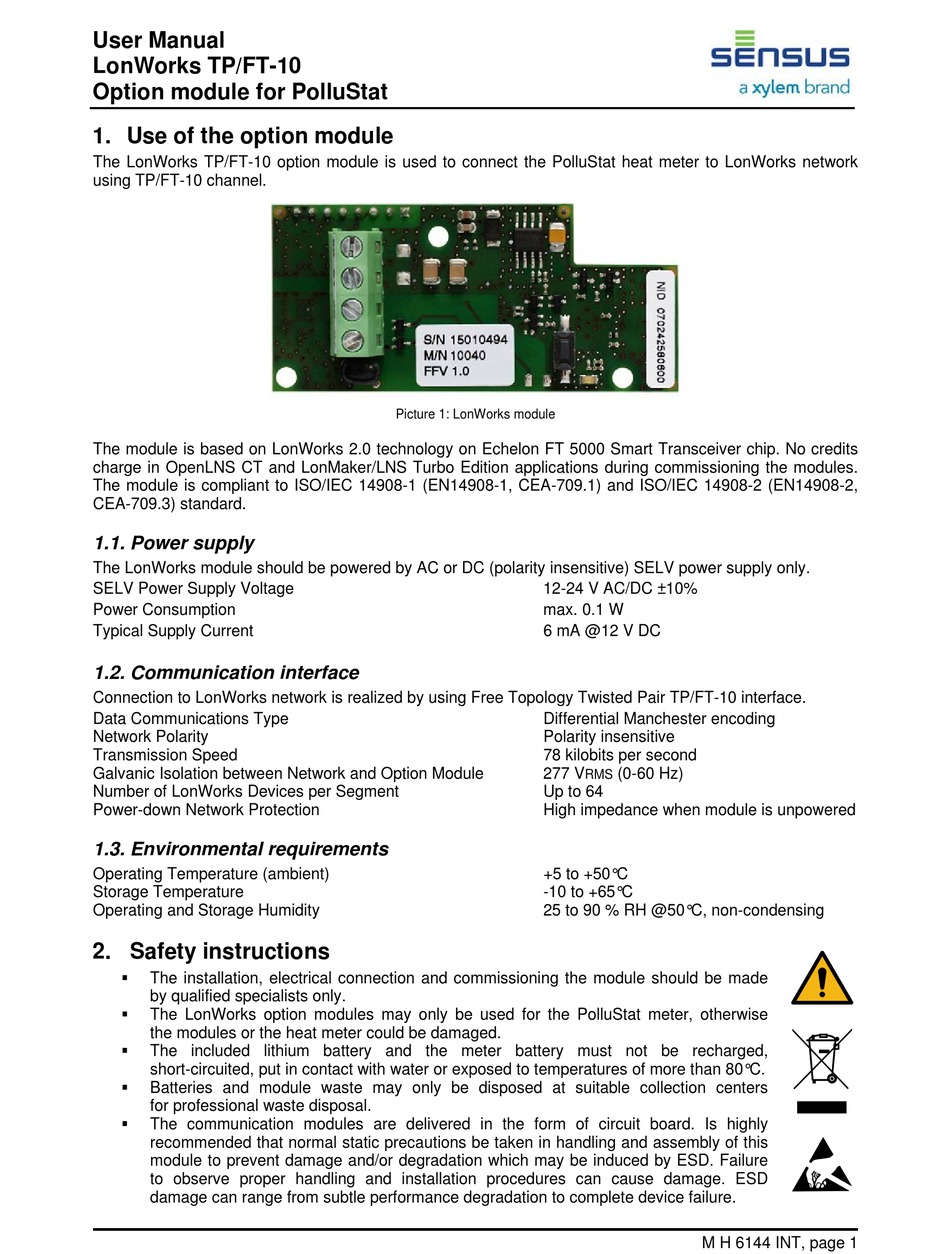

User Manual
LonWorks TP/FT-10
Option module for PolluStat

1. Use of the option module

The LonWorks TP/FT-10 option module is used to connect the PolluStat heat meter to LonWorks network
using TP/FT-10 channel.
The module is based on LonWorks 2.0 technology on Echelon FT 5000 Smart Transceiver chip. No credits
charge in OpenLNS CT and LonMaker/LNS Turbo Edition applications during commissioning the modules.
The module is compliant to ISO/IEC 14908-1 (EN14908-1, CEA-709.1) and ISO/IEC 14908-2 (EN14908-2,
CEA-709.3) standard.
1.1. Power supply
The LonWorks module should be powered by AC or DC (polarity insensitive) SELV power supply only.
SELV Power Supply Voltage
Power Consumption
Typical Supply Current
1.2. Communication interface
Connection to LonWorks network is realized by using Free Topology Twisted Pair TP/FT-10 interface.
Data Communications Type
Network Polarity
Transmission Speed
Galvanic Isolation between Network and Option Module
Number of LonWorks Devices per Segment
Power-down Network Protection
1.3. Environmental requirements
Operating Temperature (ambient)
Storage Temperature
Operating and Storage Humidity

2. Safety instructions


The installation, electrical connection and commissioning the module should be made
by qualified specialists only.

The LonWorks option modules may only be used for the PolluStat meter, otherwise
the modules or the heat meter could be damaged.

The included lithium battery and the meter battery must not be recharged,
short-circuited, put in contact with water or exposed to temperatures of more than 80°C.

Batteries and module waste may only be disposed at suitable collection centers
for professional waste disposal.

The communication modules are delivered in the form of circuit board. Is highly
recommended that normal static precautions be taken in handling and assembly of this
module to prevent damage and/or degradation which may be induced by ESD. Failure
to observe proper handling and installation procedures can cause damage. ESD
damage can range from subtle performance degradation to complete device failure.

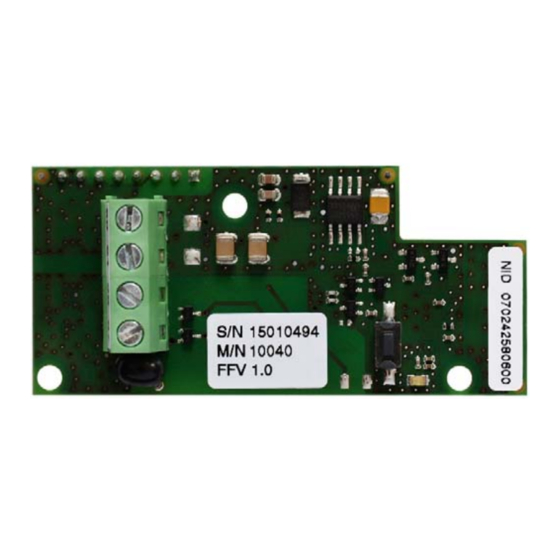

Picture 1: LonWorks module
12-24 V AC/DC ±10%
max. 0.1 W
6 mA @12 V DC
Differential Manchester encoding
Polarity insensitive
78 kilobits per second
277 V
Up to 64
High impedance when module is unpowered
+5 to +50°C
-10 to +65°C
25 to 90 % RH @50°C, non-condensing
(0-60 Hz)
RMS
