Green image GC-2303DALI-P Quick Start Manual

Type:
Project:
Catalog#:

Main Features

• Compatible with all DALI system in the market
• Manually / automatically DALI address settings
• Digital interface for DALI address
• Four channels to set addresses from one to four
Safety & Warnings
1
The product must be installed and serviced by qualified personnel.
2
IP20. Avoid direct sunlight and rain. When installed outdoors, please ensure it is mounted in a waterproof enclosure.
3
Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4
Please check that output voltage(s) of any LED power supplies used complies with the working voltage of the product.
5 Never connect any cables while power is on and always ensure correct connections to avoid short circuits before turning on.
6 Please ensure that the cable is secured tightly in the connector.
7 For update information please consult your supplier.

Specification Features

Model
Input Voltage
Output Current
Product Size
greenimagetech.com 105 8288 N Fraser Way
Burnaby BC, V3N 0E9

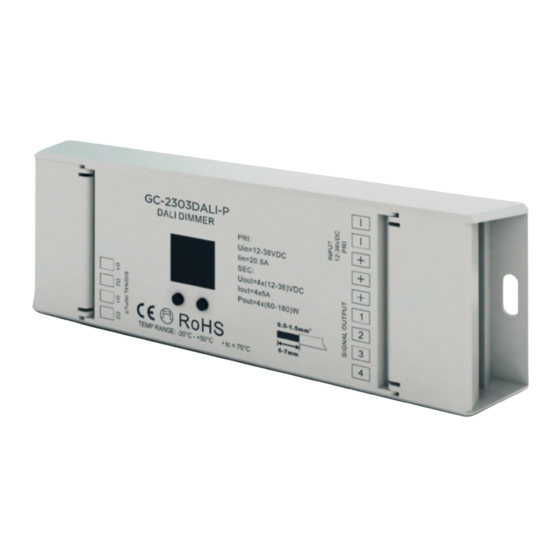

GC-2303DALI-P
12-36V DC
4x5A
156 mm
166 mm
© Green Image Tech, LTD. All rights reserved. We reserve the right to change design, materials
T: (604) 207-9879
F: (604) 207-6992 and finish in any way that will not alter installed appearance or reduce function and performance.
Output Power
Remarks
23 mm
GC-2303DALI-P
1 - 10V Dimmer
5
ISO9001：2008
4x(60-180)W
Constant Voltage
