Task Force Tips CROSSFIRE XFF-APL Instruction Manual

The XFF-APL Truck Mount Adaptor will connect the CROSSFIRE® monitor to a riser pipe with a 3" NPT male thread. The XFF-MPL Truck Mount
Adapter will connect a CROSSFIRE® monitor to a riser pipe with either a 3" ANSI 150 lb ASA fl ange or 3" NPT male threads. The XFF-MPP Truck Mount
Adaptor will connect a CROSSFIRE® monitor to a riser pipe with either 4" ANSI 150 fl ange or 4" NPT male threads.
DANGER
WARNING
Make sure that there is no interference between monitor and other deck mounted equipment in all directions.
A drain valve should be provided in the riser pipe which supplies the monitor. The riser should be drained immediately after each use during
cold weather to prevent freezing and possible damage.
The Crossfi re monitor has an automatic drain. If this drain has been deactivated, the monitor must be drained by lowering the nozzle below
horizontal.
Use pipe thread sealant on the riser pipe threads when installing the XFF-APL or using the internal threads of the XFF-MPL or XFF-MPP
adapters. When installing the bolted fl anges, use the supplied ring gasket.
If you have any questions or installation diffi culties, please call 1.800.348.2686.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 1999-2012
CROSSFIRE

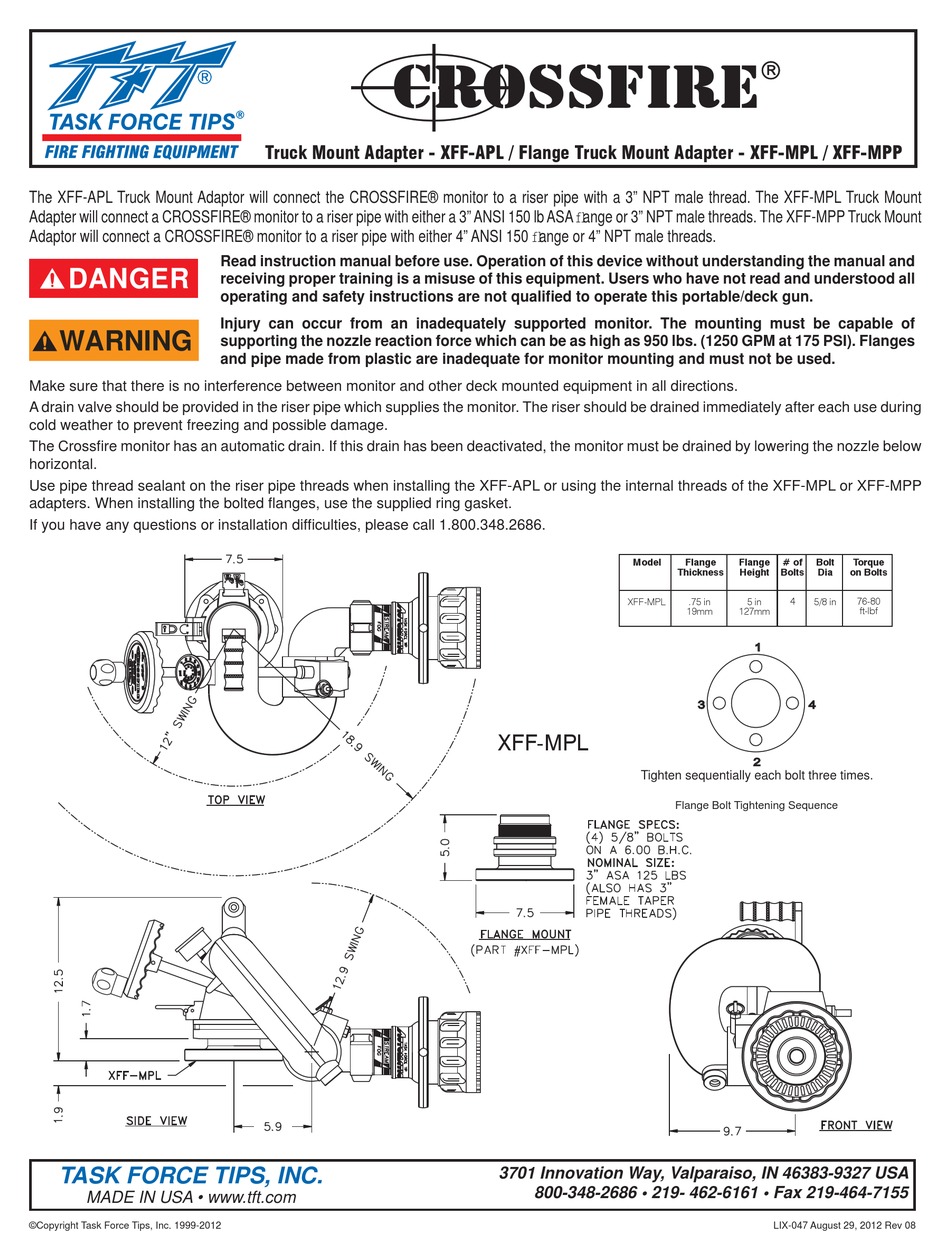

Truck Mount Adapter - XFF-APL / Flange Truck Mount Adapter - XFF-MPL / XFF-MPP
Read instruction manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Users who have not read and understood all
operating and safety instructions are not qualifi ed to operate this portable/deck gun.
Injury can occur from an inadequately supported monitor. The mounting must be capable of
supporting the nozzle reaction force which can be as high as 950 lbs. (1250 GPM at 175 PSI). Flanges
and pipe made from plastic are inadequate for monitor mounting and must not be used.
Model
XFF-MPL
XFF-MPL
Tighten sequentially each bolt three times.
Flange Bolt Tightening Sequence
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
Flange Flange # of Bolt Torque
Thickness Height Bolts Dia on Bolts
4
.75 in 5 in 5/8 in
19mm 127mm
1
3 4
2
LIX-047 August 29, 2012 Rev 08
76-80
ft-lbf
