1.0 Introduction
The following provides instructions for the installation
and operation of the Stone Age Fireplace, manufactured
by Stone Age Manufacturing, Collinsville, Oklahoma.
Three generations of fireplace knowledge and experi-
ence have gone into the design and construction of the
Patio series fireplaces. Patio Series fireplaces are de-
signed for outdoor use only, and should not be installed
near a structure or covered area. A minimum of 8' hori-
zontal clearance to a structure or covered area is recom-
mended.

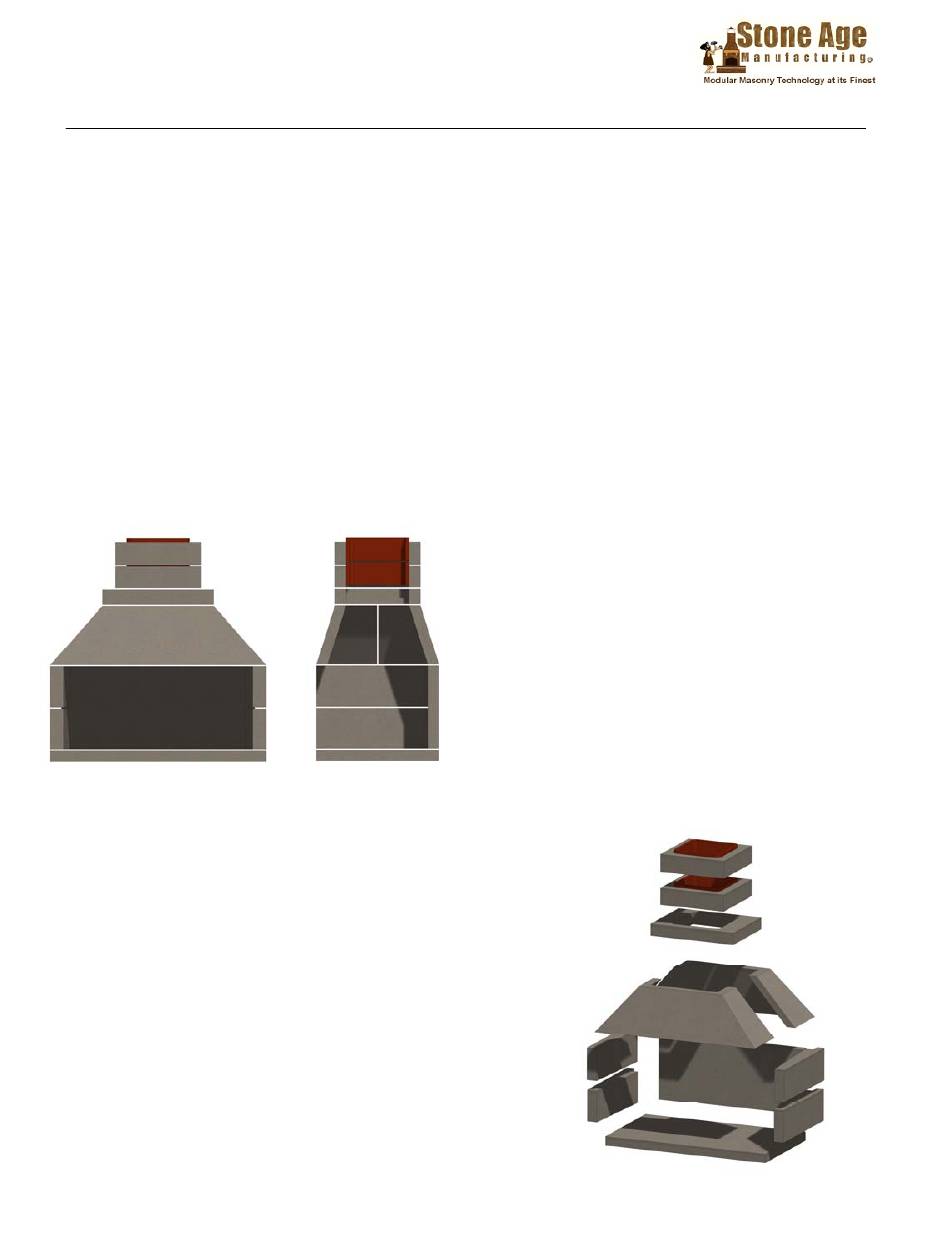

Assembly and Cutaway views of a SA-48PS fireplace
are shown in Figure 1.
SA-48PS
Front View
Figure 1. SA-48PS Fireplace Assembly
& Cutaway View
It is recommended that this fireplace be installed by a
professional installer, or by a builder in new construc-
tion. Installation by a non-qualified person may negate
the warranty.
Keep these instructions for future reference.
Installation and Operation Instructions
Stone Age Patio Series Outdoor Fireplace
SA-48PS
Side
Cutaway
View
2.0 Description
The fireplace is delivered as a kit with all components
necessary to complete the installation. Component ar-
rangements are shown in Figure 2. Components are
listed in Table 1.
shown in Table 2.
A completed installation should include the following:
A. Fireplace items shown in Figure 2 and listed in
Table 1.
B. Chimney Cap (sold separately) (Shown in Figure
15).
C. Fireplace Grate (sold separately) (Shown in Figure
16).
D. Split firebrick (firebrick is optional, and not re-
quired on Patio Series fireplaces, but may be installed
if desired, sold separately).
E. Stone Age Multi-Purpose Ready-Mix Cement
(sold separately).
F. Masonry-compatible finishing materials, as re-
quired to cover the outer surfaces of the fireplace kit
(sold separately).
Ensure that appropriate building permits required by
local codes are obtained before installation in an existing
home.
3
3
Figure 2. SA-48PS Exploded View
1
3
Specifications and clearances are
9A
9A
11
8
8
4
3
3
2
3
3
Advertisement
Related Manuals for Stone Age Patio Series
Summary of Contents for Stone Age Patio Series
- Page 1 Figure 1. C. Fireplace Grate (sold separately) (Shown in Figure 16). D. Split firebrick (firebrick is optional, and not re- quired on Patio Series fireplaces, but may be installed if desired, sold separately). SA-48PS E. Stone Age Multi-Purpose Ready-Mix Cement Front View (sold separately).
-
Page 2: Specifications
Additional flue sections must be purchased separately. Note: Drawings of the fireplace components, with dimensions, are shown on page 10. 2.1 Specifications Table 2: Clearances (See Figure 3) Figure 3. Patio Series Mantel & Hearth Item Clearance Figure 3 Reference Sidewall to Opening 18”... - Page 3 Piers It is most important that the Stone Age fireplace be in- should include steel reinforcement that extends into the stalled according to the following instructions. It is also footing above.
- Page 4 Components broken into multiple pieces must be replaced. Front If this is your first Stone Age installation, it is suggested that you first assemble the components without mortar to familiarize yourself with how the components fit to- gether. See Figure 2.
- Page 5 D. Install the upper sidewalls (3), ensuring they are level and square. See Figure 10. Hearth Base Figure 7. Block Base with Hearth Figure 10. Upper Sidewalls B. Set the base plate (2), ensuring it is level and square. See Figure 8. E.
- Page 6 See Figure 15. Figure 13. Throat Adapter H. Patio Series kits include 2 chimney sections. maximum of four additional feet of chimney is rec- ommended with the Patio Series fireplaces.
- Page 7 H. Do not alter this fireplace to the extent that it would jeopardize the structural integrity of the fire- place. Drilling or cutting a hole for a gas line, fresh air vent or ash dump is acceptable. Use only Stone Age authorized equipment with this fireplace. 4.2 Selection of Wood Use cured wood logs only.
- Page 8 4.4 Seasoned Wood LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THE Most freshly cut “green” wood will not burn well and FIREPLACE. KEEP ALL SUCH will smoke. The pressure of moisture and resin inside LIQUIDS WELL AWAY FROM green wood will build under heat and explode as sparks.
-
Page 9: Cleaning, Inspection And Maintenance
5.0 Cleaning, Inspection and WARNING: DO NOT USE CHEMICAL CHIMNEY CLEANERS THAT ARE Maintenance POURED ON A HOT FIRE. THE As is the case with most other equipment, cleanliness is CHEMICAL CLEANER CAN BE the best maintenance practice and will contribute too DANGEROUS AND GENERALLY many hours of warmth and pleasure. - Page 10 Table 4. Finishing Requirements Kit Components Surface Area 94 square feet Corner Length 22 Linear feet Ready-Mix Mortar Required 5 Buckets/Bags for Kit Assembly Mortar Required for Kit Fin- 3 - 6 Buckets/Bags ishing 105 Split Brick Firebrick Required This Space Intentionally Left Blank (not required) Additional Chimney (Per Chimney Section)
-
Page 12: Limited Warranty
Stone Age Manufacturing, Inc., shall be covered by their manufacturer’s warranties. This Limited Warranty covers only actual manufacturing defects in the Stone Age product and does not cover de- fects or faulty workmanship in the installation of the product or the ma- sonry or other structure in which it is installed.
