Summary of Contents for Auxdio DM838

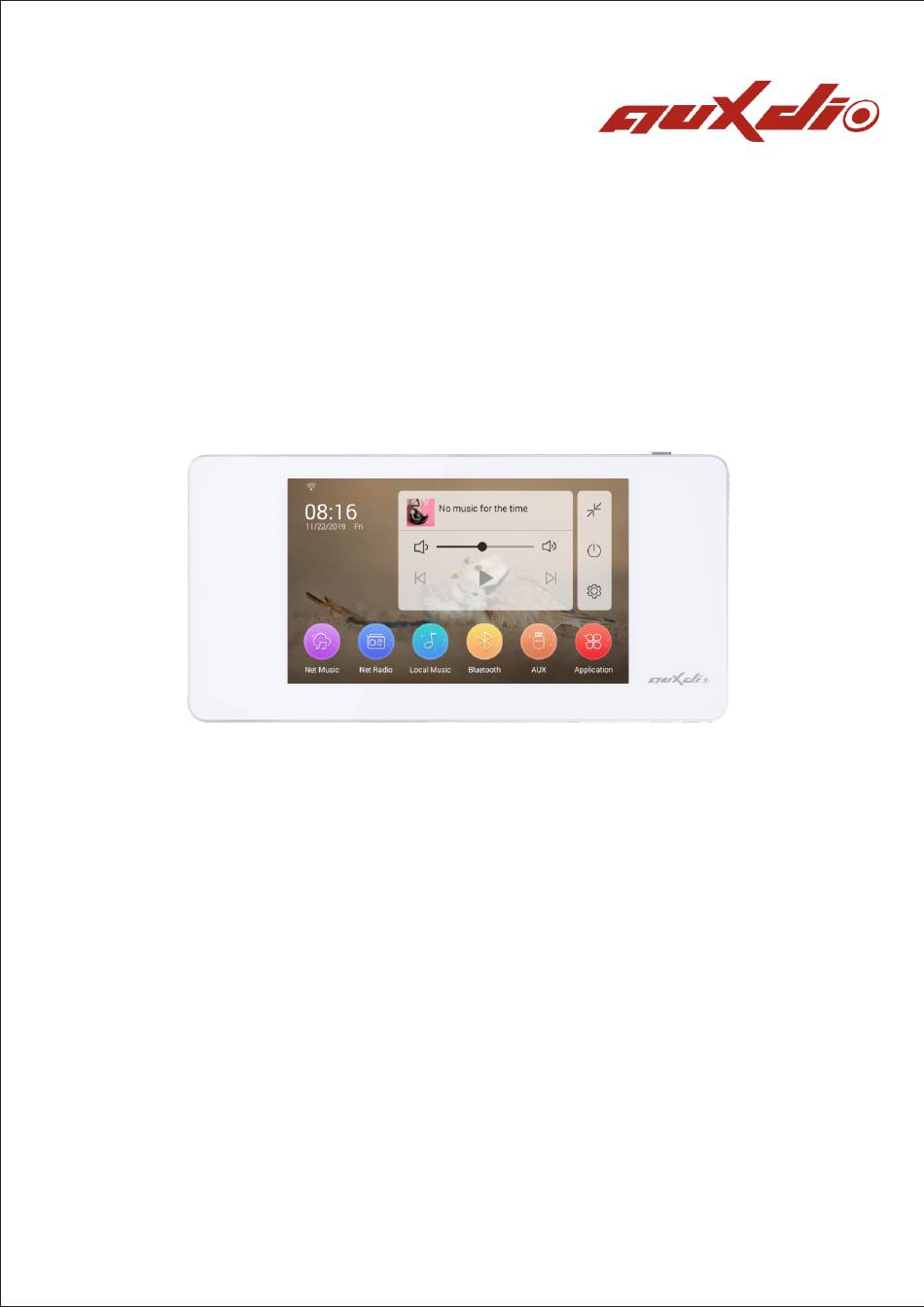

- Page 1 DM838 N e t w o r k M u s i c P l a y e r w i t h A m p l i f i e r User Manual www.auxdio.com.cn...
-
Page 2: Table Of Contents
Content Features Basic Functions 1. On / Off 2. Main Interface Main Application 1. Net Music 2. Net Radio 3. Local Music 4. Bluetooth 5. AUX System Settings 1. Wireless and Networks 2. Device 3. System Specification... -
Page 3: Features
Features ● Net Music - Tens of millions of genuine music libraries, millions of exclusive resources, lossless music CD sound quality; daily recommended song list based on your music DNA, your best music mate. ● Multichannel sources: Net Music, Local Music, Net Radio, Bluetooth and AUX. ●... -
Page 4: Basic Functions
Basic Functions 1. On / Off Power on: Push the power switch on the lower right corner to the right (as shown in Figure 1) and the power is turned on. Power off: Push the power switch on the lower right corner to the left and the power is turned off. -
Page 5: Main Interface
2. Main Interface 1. Sound Select: Click to select different audio sources: Net Music, Net Radio, Local Music, Bluetooth and AUX. 2. Time and Weather : Time and weather information can be obtained online, and the city can be searched to set (requires network support). 3. -
Page 6: Main Application
Main Application 1. Net Music... -
Page 7: Net Radio
7、Internet Radio (1).Touch the icon “Internet Radio” in the main interface, and select login to enter the function list of the Internet radio (As shown in Figure 1). (Figure 1: Internet Radio) (2).Touch the following icons to control the playing of the Internet radio: ①“... -
Page 8: Local Music
3. Local Music In the main interface, click “ ” icon to enter “Local Music”. Home Menu Librar y List Play Control Home: Click to return to the main interface. Menu: Quickly display music librar y information by type; create and manage song lists. Librar y List: Display all music information in the librar y and manage the tracks. -
Page 9: Bluetooth
4. Bluetooth (1) In the main interface, click " " icon to enter "Bluetooth" interface. Turn on Bluetooth on your mobile phone or other devices to search and click "GocAndroid" for connection with the pairing password “0000”. When the connected prompt appears, it indicates that the Bluetooth device is connected successfully (The local Bluetooth name can be set in <Settings - System Information)>). -
Page 10: Aux
5. AUX (1) In the main interface, click " " icon to enter "AUX" interface. (2) Tap " " icon to adjust the volume. (3) Tap " " icon to return to the main interface. -
Page 11: System Settings
System Settings In the main interface, tap " " icon to enter "System Settings" interface. (System Settings Interface) 1. Wireless and Networks (1)WLAN Settings ① Turn on WLAN. Slide the button to the right to turn on the switch. ② Click the connectable network name to enter the password and click Connect. ③... - Page 12 (Enter the password) (2)Ethernet The switch can control whether to turn on the wired network , and set information like IP address. (Ethernet Interface) (3)DLNA Select whether to turn on the DLNA. Slide it to the right to turn on it. (DLNA Interface) -10-...
-
Page 13: Device
(4)AirPlay Select whether to turn on the AirPlay. (AirPlay Interface) 2. Device (1)Display The screen brightness, sleep time, and interactive screen saver can be set. (Display Settings) -11-... - Page 14 (2)Wallpaper Can select wallpapers and click Confirm to change the wallpaper. (3)Time and Date The date and time can be set automatically or manually; different time zones and date formats can be selected. -12-...
- Page 15 (4)Timing You can create the desired timing scheme, set the time, repeat period and behavior of the timing scheme; click Manage to delete and modify the alarm scheme that has been created. (5)Storage View the storage status. -13-...
-
Page 16: System
3. System (1)Application You can view, forcibly stop and uninstall the installed applications on the machine. (Installed Applications) (Uninstall and Stop the Application) (2)Input Method The input method switch can be set and the input method keyboard can be switched. -14-... - Page 17 (3)Sound Effect There are 5 sound effects options, and you can also customize the sound effect value. (4)Multi-language Provide different language options. -15-...
- Page 18 (5)System Information Can modify the name of the device, Bluetooth/DLNA/Airplay, check system updates and view the serial number. (6)Factor y Settings Clear all data and restore factor y data. (7)About Click to view the manual and control X to download the QR code. -16-...
-
Page 19: Specification
Specification Item Parameters ~100-240V 50/60Hz 1A Power Supply Audio Source Net Music, Local Music, Net Radio, Bluetooth, AUX AUX IN Impedance 10KΩ 2×20W/8Ω Rated Power Freq. Resp. 20Hz~20KHz ≤0.2%@1KHz ≥81dB BT Distance Power ≤45W Net Weight 0.38kg Gross Weight 0.67kg Product Size (LWH) 172×86×45mm Package Size (LWH) 220x180x135mm...
