Phoenix Baby Bliss Sova BA400 Series Manual

Bassinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Styles may vary/ Los estilos pueden variar / Les styles peuvent varier
Remove product from the box and remove all packaging materials.
Saque el producto de la caja y retire el material de empaque.
Precaución: NO RETIRE la espuma que rodea los tubos del moisés.
Retirez le produit de la boîte et enlevez tous les matériaux d'emballage.
Attention : N'enlevez pas la mousse autour des tubes du berceau.
Make sure to inspect every part to make sure there are no broken or missing parts. If so, do not use and contact us!
Asegúrese de inspeccionar cada parte para asegurarse de que no haya partes rotas o faltantes. Si es así, no use el
Veillez à inspecter chaque pièce pour vous assurer de l'absence de pièces cassées ou manquantes.
En cas de pièce cassée ou manquante, n'utilisez pas le berceau et contactez-nous!

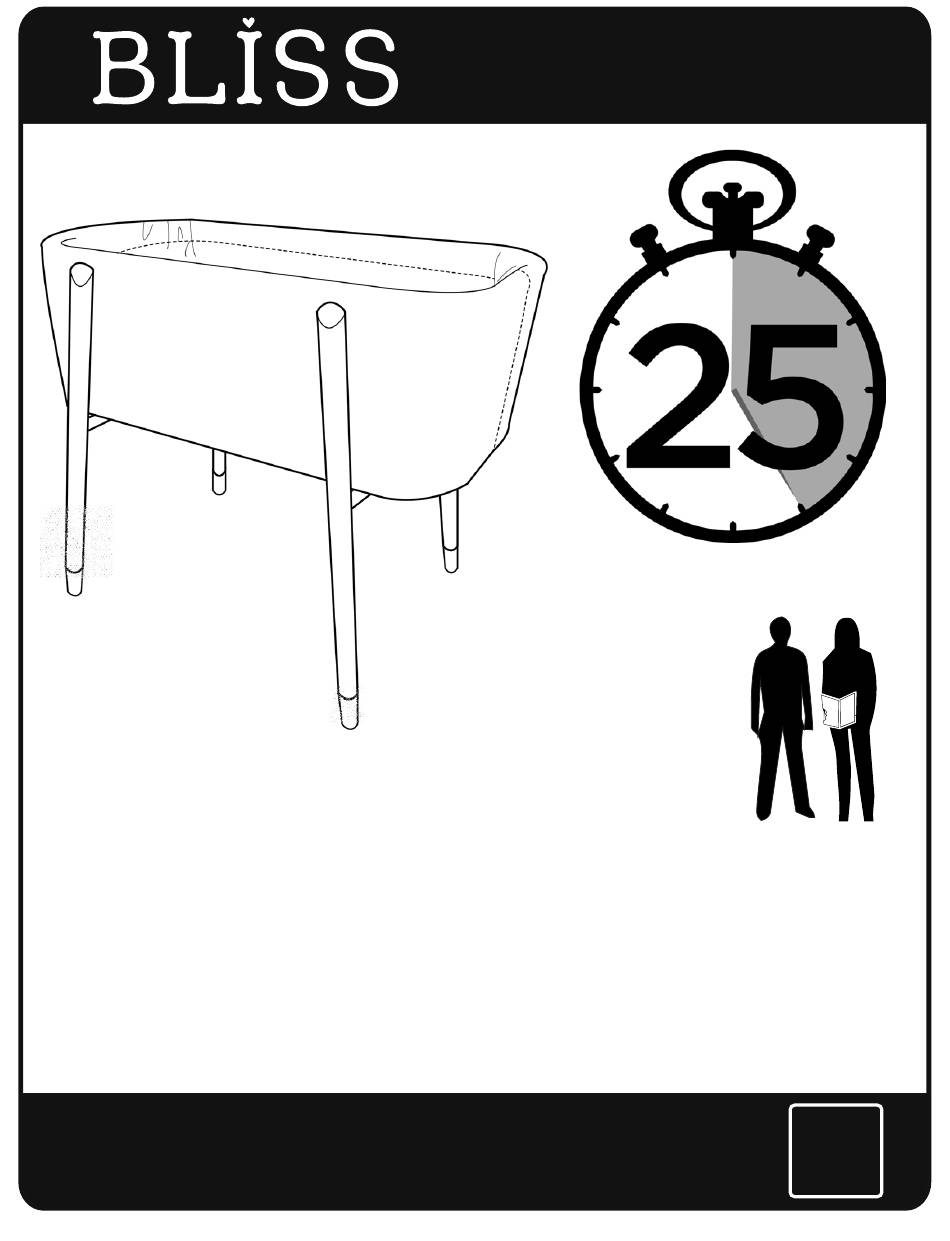

MODEL #BA400 Series
SOVA BASSINET
MOISÉS SOVA
BERCEAU SOVA
producto y comuníquese con nosotros.
Minutes /
Minutes / Minutos
Assembly / Assemblée / Montaje
© 2019 IS0015A 12/2019
X2
A1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bliss Sova BA400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Phoenix Baby Bliss Sova BA400 Series

  • Page 1 SOVA BASSINET MOISÉS SOVA BERCEAU SOVA Minutes / Minutes / Minutos Assembly / Assemblée / Montaje Styles may vary/ Los estilos pueden variar / Les styles peuvent varier Remove product from the box and remove all packaging materials. Saque el producto de la caja y retire el material de empaque. Precaución: NO RETIRE la espuma que rodea los tubos del moisés.

  • Page 2: Customer Care

    WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF PRODUCT. Failure to follow these warnings and instructions could result in serious injury or death. Make sure bassinet is fully assembled and secure before use. ADULT ASSEMBLY REQUIRED. KEEP INSTRUCTIONS FOR FUTURE USE. IMPORTANT SAFETY INFORMATION: When NOT to Use Your Bassinet •...
  • Page 3 PARTS LIST / LISTA DE PARTES / LISTE DES PIÈCES pocket 1 x Fabric Assembly 1 x Mattress 2 x Sheets 1 x Lower Support Bar 1 x Top Rail 1 x Mattress Board 4 x Wood Legs Attention: Do NOT REMOVE foam around bassinet tubes. 2 2 3 Need help? www.p...
  • Page 4 HARDWARE / TORNILLERÍA / QUINCAILLERIE Assembly Hardware supplied (actual size) / Tornillería incluida para ensamblaje (tamaño real) / Quincaillerie d'assemblage fournie (taille réelle) Ref/Ref/ QTY/CANT/ Head/Cabeza/ Name/Nombre/Nom Réf Tête M6 x 17mm Phillips Screw M6 x 17mm - 16 pcs. Tornillo Phillips M6 x 17 mm Vis cruciforme M6 x 17 mm M6 x 26mm - 2 pcs.
  • Page 5 ASSEMBLY OF BASE AND LEGS Preassembled Support Base Mattress screw holes face up Mattress screw holes face up Make sure the mattress screw holes are Preassembled lower support bar (Part 4). facing up on part 4. Assembly of Legs to Base Attach the Base to the wood legs (Part Hint: Do not tighten until all 8 screws are 7) as shown.

  • Page 6: Fabric Assembly

    TO ASSEMBLE BASSINET TOP RAIL & FABRIC ASSEMBLY Preassembled Bassinet Top Rail Snap button Once done, check to make sure it is Flip the 4 metal plates outward. Make secured and cannot come apart by sure that the button snaps into the lightly tugging outward.
  • Page 7 ATTACH TO THE 4 WOOD LEGS Assembly of Upper Frame to Wood Legs Screw in all 8 screws by hand first and Turn unit over: then can tighten after. Attach top rail and fabric to the 4 Hint: Make sure to lay unit on a blanket wood legs using the 8 screws (Part A).
  • Page 8 MATTRESS BOARD ASSEMBLY Assembly of Mattress Board to Base Insert 2 screws (Part B) in through the two holes in the mattress board and fabric Before you insert the mattress board, find into the two holes in the steel base Part and identify the two holes in the bottom 4.
  • Page 9 SOVA BASSINET Sova Bassinet Pocket Lightly shake bassinet to make sure it is sturdy. Please threw away all packaging materials. Fold instruction manual and store in pocket under bassinet for future reference. Need help? www.p 1-610-743-5254 hoenix-baby.com Tel #:...
  • Page 10 PRODUCT REGISTRATION / REGISTRO DEL PRODUCTO / ENREGISTREMENT DU PRODUIT IMPORTANT: Please fill in your contact info on the bottom part of the card, separate from top card and mail to us. Note, postage is prepaid if mailed in the United States. Keep the top portion for your records.
