Summary of Contents for DPAO BLM4060

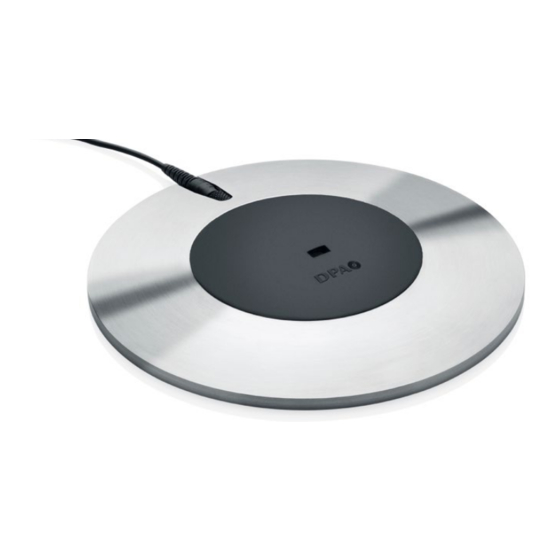

- Page 1 User’s Manual Boundary Layer Microphone BLM4060 d p a m i c r o p h o n e s . c o m / b l m 4 0 6 0...

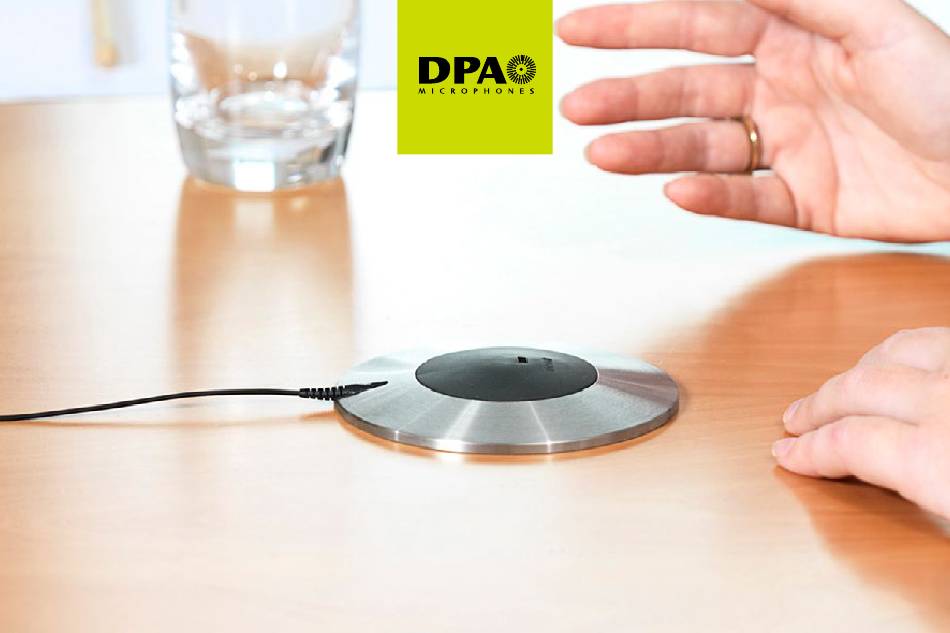

- Page 2 This microphone is ideal for voice pick up. The BLM4060 is designed to work optimally when placed on a table top, but it also performs well on any other hard, flat surface.
- Page 3 µPa and an impressive sensitivity of 20 mV/Pa. If powered correctly, the microphone will be able to handle sound pressure levels up to 134 dB SPL before clipping occurs. A wide range of connection adapters makes it possible to use the BLM4060 both with phantom power and wireless systems.
- Page 4 How to connect the cable Take the microphone in one hand and the microphone cable in the other. Hold the microphone in a horizontal position keeping the topside up. The connectors are assembled by leading the male part into its female counterpart. The MicroDot lock cap is turned clockwise and tightened firmly in the female connector.
-
Page 5: How It Works
The microphone can be placed on any surface that reflects sound, like tables, speaker podiums, etc. Even if try to avoid placement that may receive reflections from vertical faces as this may cause coloration of the a table is covered with cloth, the BLM4060 will work due to the shape and size of the disc. sound (comb-filtering). -
Page 6: Specifications
Typ. 35 dB (max. 38 dB) With DAD6001-BC: P48 (Phantom power). Will work voltage at MicroDot pin (and pin 2 on DAD6001-BC XLR from 12 V adapter) Operating temperature range On-axis frequency response of BLM4060 Boundary Layer -40°C to 45°C (-40°F to 113° F) Microphone... -
Page 7: Environmental Policy
A dry cloth may be used to clean the surface of the microphone. Cables for BLM4060 IMPORTANT: No cleaning agent should ever be used as fluids may damage the DAO6015 Cable for BLM4060, 3 m (10 ft) (included) microphone. ENVIRONMENTAL POLICY This product is comprised by the Waste (WEEE) directive and should not be thrown in the garbage bin when obsolete. -
Page 8: Service And Repair
Service and repair Warranty Products from DPA Microphones are extremely stable and there should not be any significant This product is covered by a two-year limited warranty on both mechanical functionality and docu- change in the specifications with time and use. If, however, you are not totally satisfied with the mented specifications as long as the item is not mistreated, abused or modified in any way. - Page 9 DPA Microphones A/S Gydevang 42-44 DK-3450 Alleroed, Denmark Tel. +45 4814 2828 Fax. +45 4814 2700 info@dpamicrophones.com dpamicrophones.com d p a m i c r o p h o n e s . c o m / b l m 4 0 6 0...
