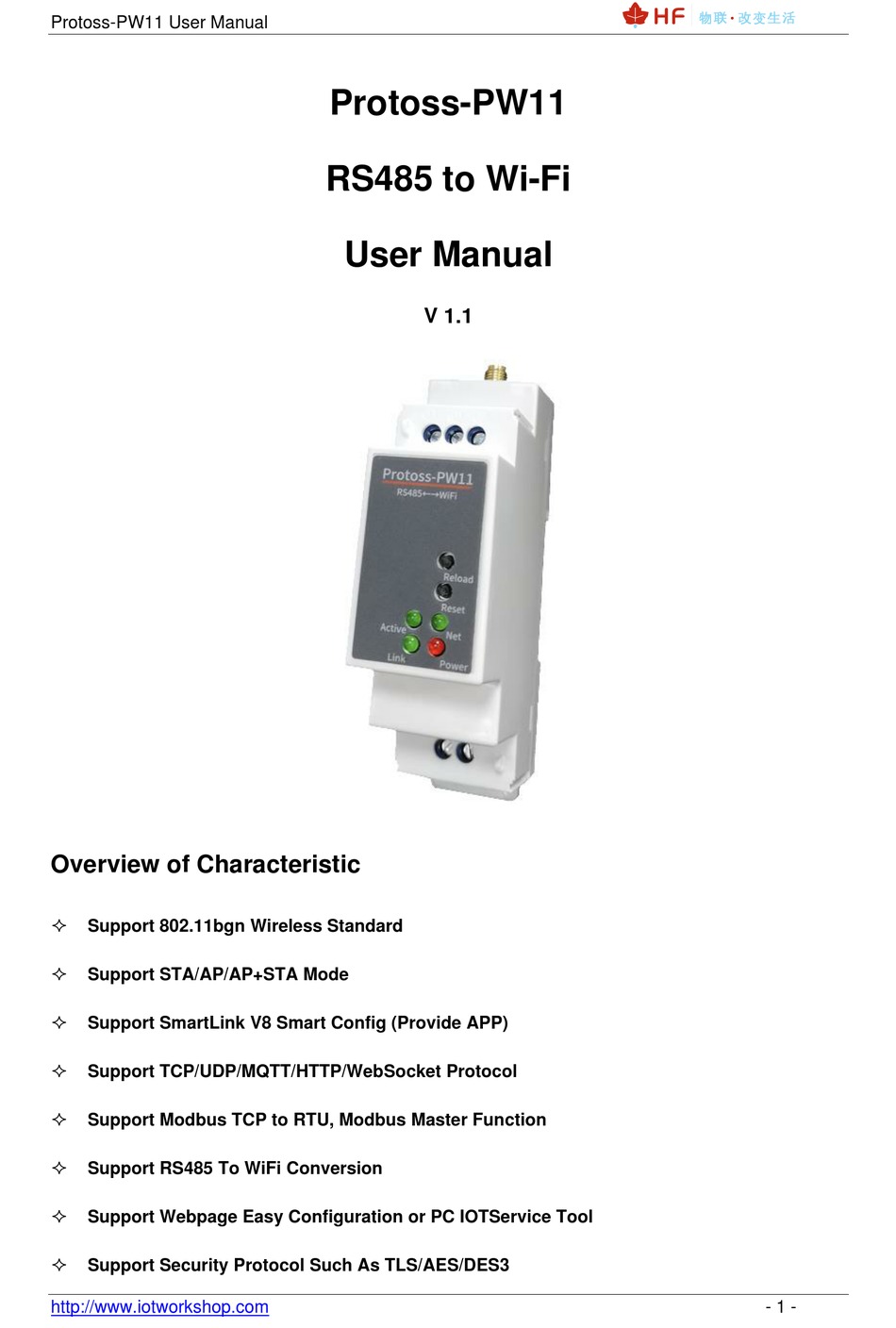

Protoss-PW11 User Manual
Overview of Characteristic
Support 802.11bgn Wireless Standard
Support STA/AP/AP+STA Mode
Support SmartLink V8 Smart Config (Provide APP)
Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
Support Modbus TCP to RTU, Modbus Master Function
Support RS485 To WiFi Conversion
Support Webpage Easy Configuration or PC IOTService Tool
Support Security Protocol Such As TLS/AES/DES3
http://www.iotworkshop.com
Protoss-PW11
RS485 to Wi-Fi
User Manual
V 1.1
- 1 -
Advertisement
Table of Contents
Summary of Contents for HF rotoss-PW11
- Page 1 Protoss-PW11 User Manual Protoss-PW11 RS485 to Wi-Fi User Manual V 1.1 Overview of Characteristic Support 802.11bgn Wireless Standard Support STA/AP/AP+STA Mode Support SmartLink V8 Smart Config (Provide APP) Support TCP/UDP/MQTT/HTTP/WebSocket Protocol Support Modbus TCP to RTU, Modbus Master Function ...
- Page 2 Protoss-PW11 User Manual Support Heartbeat and Resister Packet Function Support Webpage OTA Wireless Upgrade Support Industrial Temperature: -40 to +85˚ C Multiple Type of Different Power Input： ◼ Protoss-PW11-H：100～240VAC@50～60Hz ◼ Protoss-PW11-M：9～48VDC@1A Size: 102.03 x 64.95 x 27.50 mm (L x W x H) ，C45 rail installation http://www.iotworkshop.com - 2 -...
-
Page 3: Table Of Contents
Protoss-PW11 User Manual TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ................3 LIST OF FIGURES ..........................4 LIST OF TABLES ..........................5 HISTORY ............................5 PRODUCT OVERVIEW ......................6 1.1. General Description ......................6 1.2. Device Paremeters ...................... -
Page 4: List Of Figures
Protoss-PW11 User Manual LIST OF FIGURES Figure 1. Protoss-PW11 Appearance ......................8 Figure 2. Protoss-PW11 Interface ........................9 Figure 3. Protoss-PW11 Mechanical Dimension ................... 12 Figure 4. C45 Rail Installation ........................13 Figure 5. Protoss-PW11 Product Order Information ..................13 Figure 6. -
Page 5: List Of Tables
Protoss-PW11 User Manual LIST OF TABLES Table1. Protoss-PW11 Technical Specifications ....................6 Table2. Protoss-PW11-H Interface Definition ...................... 9 Table3. Protoss-PW11-M Interface Definition ....................10 HISTORY Ed. V1.0 02-10-2020 First Version Ed. V1.1 03-18-2020 Update RS485 interface http://www.hi-flying.com - 5 -... -
Page 6: Product Overview
Protoss-PW11 User Manual 1. PRODUCT OVERVIEW 1.1. General Description The Protoss-PW11 provides a RS485 interface to TCP/IP data transfer product. The Protoss-PW11 integrate TCP/IP controller, memory, Wi-Fi transceiver, RS485 and integrates a fully developed TCP/IP network stack. Protoss-PW11 also includes an embedded web server used to configure device. -
Page 7: Key Application
Protoss-PW11 User Manual Stop Bit Check Bit None, Even, Odd Baud Rate TTL: 300 bps~230400 bps No Flow Control Flow Control Software Xon/ Xoff flow control Software Http Web Configuration Web Pages Customization of HTTP Web Pages Configuration XML import Telnet IOTService PC Software Basic Parameter... -
Page 8: Hardware Introduction
Protoss-PW11 User Manual 2. HARDWARE INTRODUCTION The Protoss-PW11 unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES) encryption. Through Ethernet cable connect router with Protoss-PW11 serial server for data transfer, which makes the data transformation very simple. -
Page 9: Interface Definition
Protoss-PW11 User Manual 2.1. Interface Definition Figure 2. Protoss-PW11 Interface Table2. Protoss-PW11-H Interface Definition Description Net Name Signal Comment Type 100～240VAC Input AC Power Input Power AC Power Input Power RS485 B- RS485_B- Used for RS485 GND, usually leave it Signal GND Power unconnected... -
Page 10: Rs485 Interface
Protoss-PW11 User Manual Table3. Protoss-PW11-M Interface Definition Description Net Name Signal Type Comment 9～48VDC@1A Input DC Power Input VCC+ Power DC Power Input GND- Power RS485 B- RS485_B- Used for RS485 GND, usually leave it Signal GND Power unconnected RS485 A+ RS485_A+ Wi-Fi 2.4G SMA Antenna Antenna... -
Page 11: Mechanical Size
Protoss-PW11 User Manual 2.3. Mechanical Size The dimensions of Protoss-PW11 are defined as following picture (mm): http://www.hi-flying.com - 11 -... -
Page 12: Figure 3. Protoss-Pw11 Mechanical Dimension
Protoss-PW11 User Manual Figure 3. Protoss-PW11 Mechanical Dimension http://www.hi-flying.com - 12 -... -
Page 13: Product Installation
Protoss-PW11 User Manual 2.4. Product Installation Figure 4. C45 Rail Installation 2.5. Order Information Base on customer detailed requirement, Protoss-PW11 provide different configuration version, Details as below: Figure 5. Protoss-PW11 Product Order Information http://www.hi-flying.com - 13 -... -
Page 14: Network Structure
Protoss-PW11 User Manual 3. NETWORK STRUCTURE 3.1. Wireless Network Product can be set as a wireless STA and AP as well. And logically, it supports two wireless interfaces, one is used as STA and the other is AP. Other STA devices can join into the wireless network through AP interface. -
Page 15: Sta Wireless Network
Protoss-PW11 User Manual 3.1.2. STA Wireless Network Take the following picture as example. When router works in AP mode, product connects to the user’ s devices by RS485 interface. In this topology, the whole wireless network can be easily stretched. Figure 7. -
Page 16: Figure 8. Ap+Sta Wireless Network
Protoss-PW11 User Manual Figure 8. AP+STA Wireless Network In this picture, open the AP+STA function and the STA interface can be connected to the remote server by the router. Similarly, the AP interface can also be used. Phone/PAD can be connected to the AP interface and to control the serial devices or set itself. -
Page 17: Iotservice Software
Protoss-PW11 User Manual Does not support Wi-Fi repeater function that means device works in AP+STA(STA connects to router), PC connects to device AP, but can not access to internet (If need this router function, use PW21/HF2211/HF2221) 3.1.4. IOTService Software Open the IOTService after PC connect to the AP hotspot generated by product, then config the parameter. -
Page 18: Figure 11. Configure The Wi-Fi Parameter
Protoss-PW11 User Manual Figure 11. Configure the Wi-Fi Parameter Figure 12. STA Scan http://www.hi-flying.com - 18 -... -
Page 19: Function Description
Protoss-PW11 User Manual 4. FUNCTION DESCRIPTION Refer to “IOT_Device_Series_Software_Funtion” document for more detailed function. http://www.hi-flying.com - 19 -... -
Page 20: Appendix A: Contact Information
Protoss-PW11 User Manual APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room 1002,Building 1,No.3000,Longdong Avenue,Pudong New Area,Shanghai,China,201203 Web: www.iotworkshop.com www.hi-flying.com Contact: Sales: sales@iotworkshop.com Support: support@iotworkshop.com Service: service@iotworkshop.com Business: business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about IOTworkshop modules, applications, and solutions, please visit our web site www.iotworkshop.com <END OF DOCUMENT>...
